FRAME FITTINGS
KLX650D4 KLX650R 1999 EUROPE FRANCE

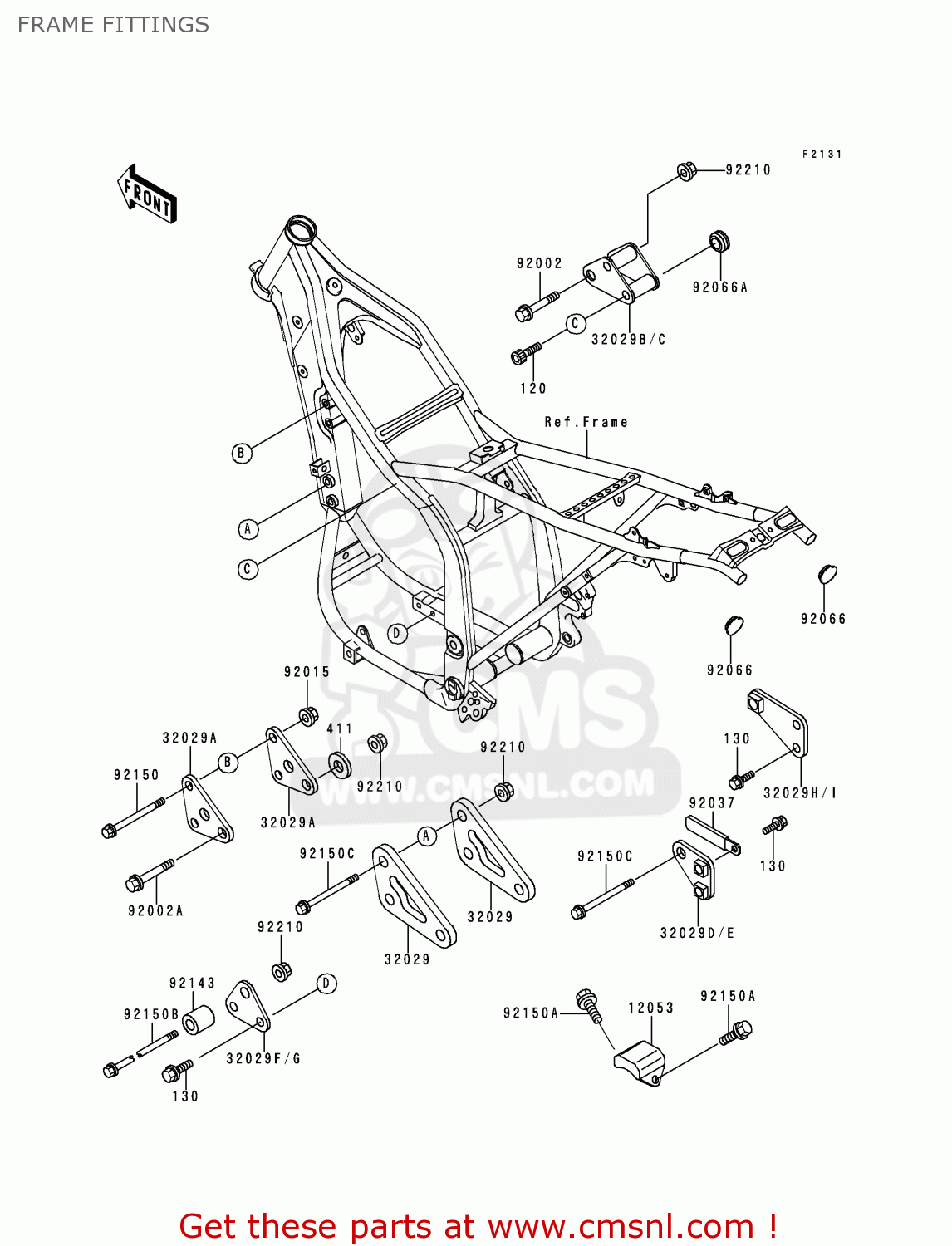

Frame fittings diagram KLX650D4 KLX650R 1999 EUROPE FRANCE
FRAME FITTINGS KLX650D4 KLX650R 1999 EUROPE FRANCE
×
prices are in EUR
ref
part #
description
quantity
120
120P0855
ref: 120
BOLT-SOCKET,8X55
€ 3.00
130
130G0816
ref: 130
BOLT-FLANGED,8X16
€ 0.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
12053
120531310
ref: 12053
GUIDE-CHAIN
€ 17.00
32029
320291840
ref: 32029
BRACKET-ENGINE,FR,LWR
€ 23.50
32029A
320291858
ref: 32029A
BRACKET-ENGINE,FR,UPP
€ 8.50
32029B
320291859EZ
ref: 32029B
BRACKET-ENGINE,RR,UPP
€ 16.00
32029D
320291882EZ
ref: 32029D
BRACKET-ENGINE,RR,LWR
€ 13.00
32029F
320291884EZ
ref: 32029F
BRACKET-ENGINE,LWR,C.
€ 13.00
32029H
320291899EZ
ref: 32029H
BRACKET-ENGINE,RR,LWR
€ 13.00
92002
920021740
ref: 92002
BOLT,FLANGED,10X46
€ 4.00
92002A
920021936
ref: 92002A
BOLT
€ 5.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92037
920371636
ref: 92037
CLAMP,HARNESS,L=100
€ 5.50
92066
920661034
ref: 92066
PLUG,FRAME END
€ 3.00
92066A
920661115
ref: 92066A
PLUG
€ 3.50
92143
921431618
ref: 92143
COLLAR,10.5X20X16.2
€ 5.50
92150
921501214
ref: 92150
BOLT,FLANGED,8X50
€ 4.00
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501686
ref: 92150B
BOLT,FLANGED,10X150
€ 11.00
92150C
921501722
ref: 92150C
BOLT,FLANGED,10X95
€ 9.50
92210
922101080
ref: 92210
NUT
€ 7.00
