OIL PUMP

KLX650D1 KLX650R 1996 EUROPE FRANCE

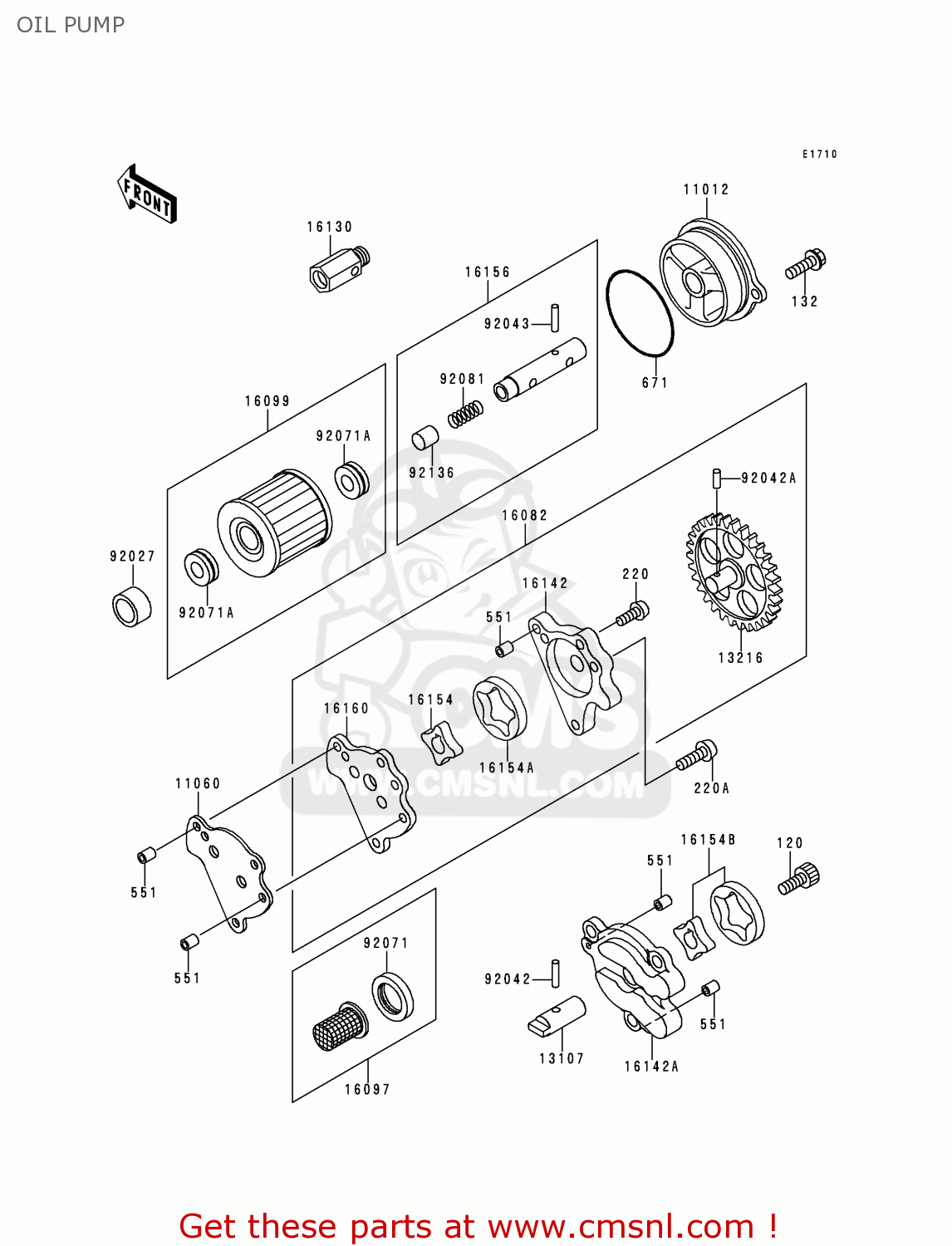

Oil pump diagram KLX650D1 KLX650R 1996 EUROPE FRANCE

OIL PUMP KLX650D1 KLX650R 1996 EUROPE FRANCE
OIL PUMP KLX650D1 KLX650R 1996 EUROPE FRANCE
OIL PUMP KLX650D1 KLX650R 1996 EUROPE FRANCE
prices are in EUR
ref
part #
description
quantity
120
120P0616
ref: 120
BOLT,SOCKET,6X16
120P0616
€ 1.50
132
132Y0620
ref: 132
BOLT-FLANGED-SMALL
132Y0620
€ 2.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
551
551A0608
ref: 551
PIN,DOWEL,6X8
551A0608
€ 2.50
671
671B2555
ref: 671
O RING,55MM
671B2555
€ 4.00
11012
110121826
ref: 11012
CAP,OIL FILTER
€ 40.50
11060
110601115
ref: 11060
GASKET,OIL PUMP (NAS)
110601115
€ 3.00
13107
131071304
ref: 13107
SHAFT,OIL PUMP
€ 13.00
13216
132161139
ref: 13216
GEAR-COMP,OIL PUMP
€ 112.00
16082
160821129
ref: 16082
PUMP-ASSY-OIL
€ 151.50
16097
160971001
ref: 16097
STRAINER ASSY,OIL
160971001
€ 5.00
16099
16099004
ref: 16099
FILTER, OIL
16099004
€ 5.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421078
ref: 16142
COVER-PUMP
161421078
€ 26.50
16142A
161421121
ref: 16142A
COVER-PUMP
161421121
€ 27.00
16154
161541069
ref: 16154
ROTOR-PUMP,INNER
161541069
€ 11.50
16154A
161541070
ref: 16154A
ROTOR-PUMP,OUTER
161541070
€ 15.00
16154B
161541101
ref: 16154B
ROTOR-PUMP,OIL
161541101
€ 25.00
16156
16156002
ref: 16156
PISTON-ASSY,VALVE,BY-
16156002
€ 15.50
16160
161601137
ref: 16160
BODY
161601137
€ 25.00
92027
920271695
ref: 92027
COLLAR,13X20X9
920271695
€ 6.50
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
92042014
€ 0.50
92042A
92042041
ref: 92042A
PIN,DOWEL
92042041
€ 4.50
92043
92043123
ref: 92043
SPRING PIN
92043123
€ 3.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
92071100
€ 3.50
92071A
92071101
ref: 92071A
GROMMET, OIL FILTER
92071101
€ 3.50
92081
92081043
ref: 92081
SPRING, PISTON
92081043
€ 3.50
92136
92136002
ref: 92136
PISTON
92136002
€ 3.00
