ENGINE COVER(S)
KLX650D1 KLX650R 1996 EUROPE FRANCE

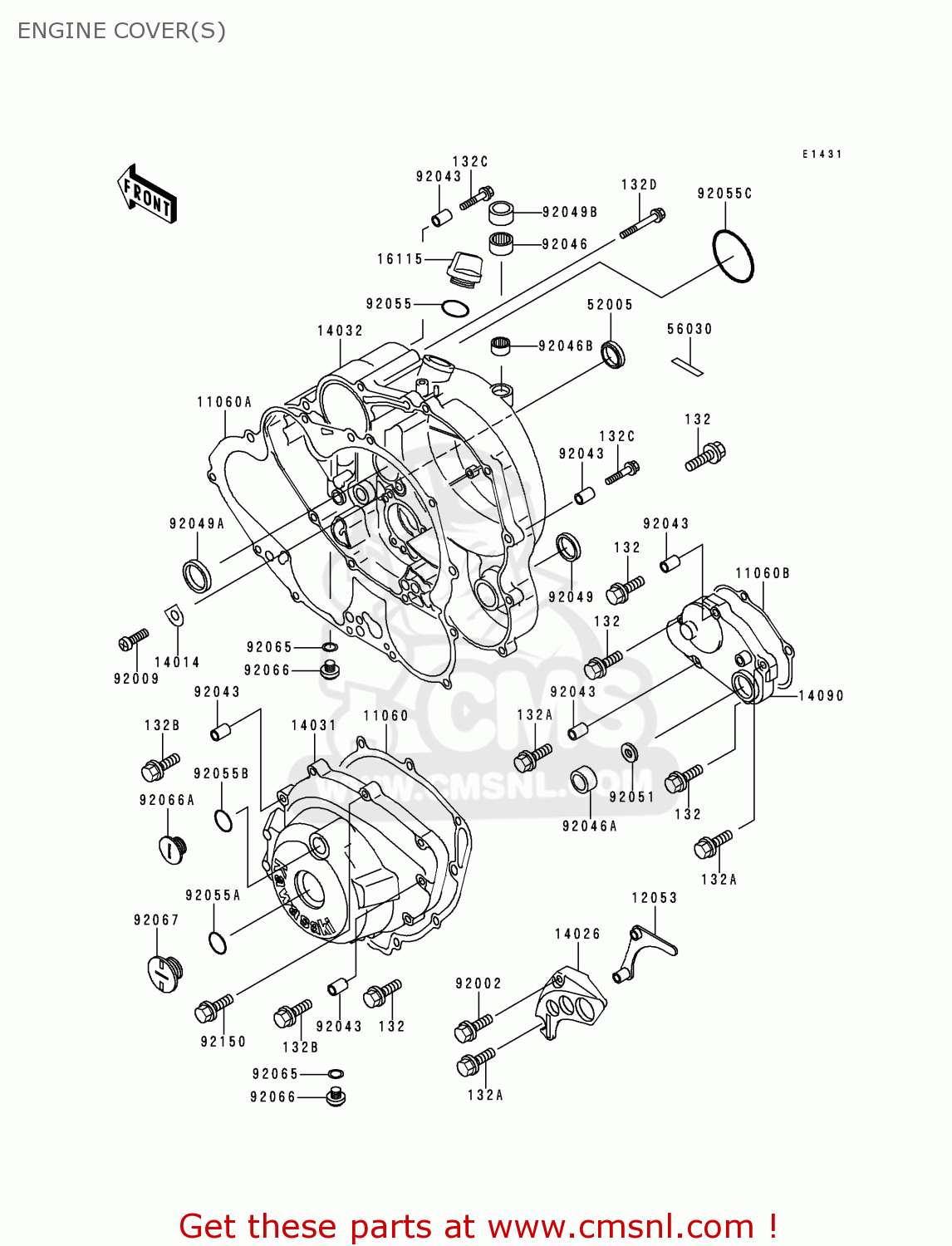

Engine cover(s) diagram KLX650D1 KLX650R 1996 EUROPE FRANCE
ENGINE COVER(S) KLX650D1 KLX650R 1996 EUROPE FRANCE
×
prices are in EUR
ref
part #
description
quantity
132
132Y0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
132A
132Y0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132Y0635
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132Y0640
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
132D
132Y0680
ref: 132D
BOLT-FLANGED-SMALL
€ 3.50
11060
110601293
ref: 11060
GASKET,GENERATOR (NAS)
€ 16.00
11060A
110601363
ref: 11060A
GASKET,CLUTCH COVER (NAS)
€ 25.50
11060B
110601364
ref: 11060B
GASKET,TRANSMISSION C (NAS)
€ 3.50
12053
120531304
ref: 12053
GUIDE-CHAIN
€ 4.00
14014
140141116
ref: 14014
PLATE-POSITION,ROD
€ 3.00
14026
140261183
ref: 14026
COVER-CHAIN
€ 15.00
14031
140311272
ref: 14031
COVER-GENERATOR
€ 50.00
14032
140321406
ref: 14032
COVER-CLUTCH
€ 183.50
14090
140901346
ref: 14090
COVER,TRANSMISSION
€ 48.00
16115
161151053
ref: 16115
CAP-OIL FILLER
€ 12.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
56030
560301173
ref: 56030
LABEL,OIL
€ 3.50
92002
920021622
ref: 92002
BOLT,6X30
€ 3.50
92009
920091563
ref: 92009
SCREW,6X10
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92046A
920461148
ref: 92046A
BEARING-NEEDLE,HK1312
€ 19.50
92046B
920461217
ref: 92046B
BEARING-NEEDLE,6BTM10
€ 18.00
92049
920491048
ref: 92049
OIL SEAL,SC22325
€ 6.00
92049A
920491158
ref: 92049A
SEAL-OIL,SCY 15X30X7
€ 16.50
92049B
920491271
ref: 92049B
SEAL, OIL
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055012
ref: 92055
'O' RING 18MM
€ 1.00
92055A
92055091
ref: 92055A
0 RING
€ 4.00
92055B
920551146
ref: 92055B
RING-O
€ 5.50
92055C
920551221
ref: 92055C
RING-O,62.6X66X3.1
€ 6.00
92065
92065073
ref: 92065
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
92066
920661222
ref: 92066
PLUG,12X10
€ 8.00
92066A
920661397
ref: 92066A
PLUG
€ 10.00
92067
92067024
ref: 92067
PLUG,RELEASE
€ 7.50
92150
921501846
ref: 92150
BOLT,6X22
€ 3.00
