CLUTCH
KLX650D1 KLX650R 1996 EUROPE FRANCE

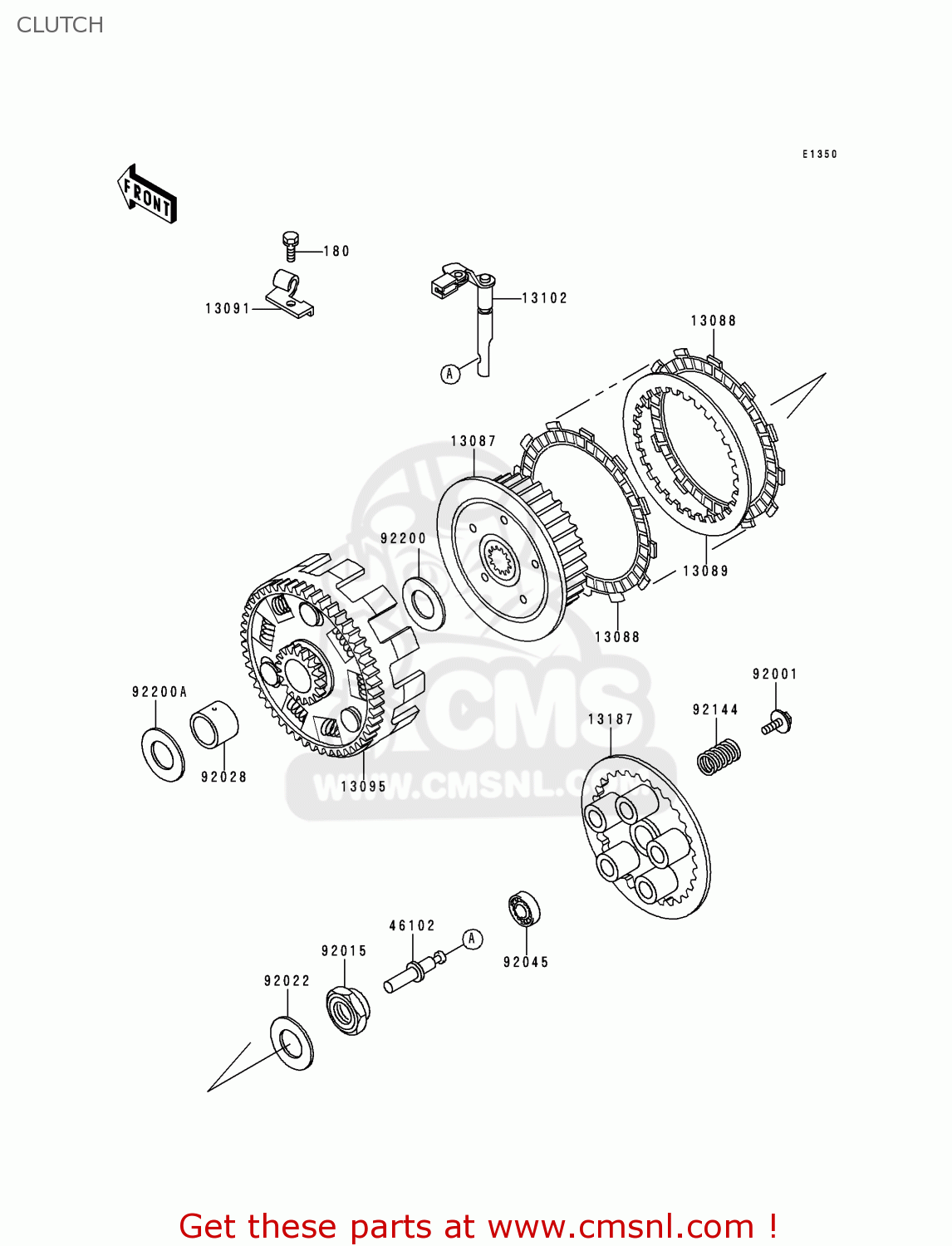

Clutch diagram KLX650D1 KLX650R 1996 EUROPE FRANCE
CLUTCH KLX650D1 KLX650R 1996 EUROPE FRANCE
×
prices are in EUR
ref
part #
description
quantity
180
180J0612
ref: 180
BOLT-UPSET-WS
€ 2.50
13087
130871146
ref: 13087
HUB-CLUTCH
€ 100.50
13088
13088040
ref: 13088
PLATE,CLUTCH FRICTION (NAS)
€ 12.50
13089
130891068
ref: 13089
PLATE-CLUTCH,T=2.0 (NAS)
€ 6.50
13091
130911932
ref: 13091
HOLDER,CLUTCH CABLE
€ 4.50
13095
130951256
ref: 13095
HOUSING-COMP-CLUTCH
€ 365.00
13102
131021131
ref: 13102
RELEASE-COMP-CLUTCH
€ 38.50
13187
131871012
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 61.00
46102
461021030
ref: 46102
ROD,CLUTCH
€ 22.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221868
ref: 92022
WASHER
€ 6.50
92028
920281668
ref: 92028
BUSHING,CLUTCH
€ 24.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92144
921441579
ref: 92144
SPRING,CLUTCH
€ 6.50
92200
922001143
ref: 92200
WASHER,22.5X47X2
€ 8.50
92200A
922001144
ref: 92200A
WASHER,22.1X36X4
€ 9.00
