FOOTRESTS
KLX650D1 KLX650R 1996 EUROPE FRANCE

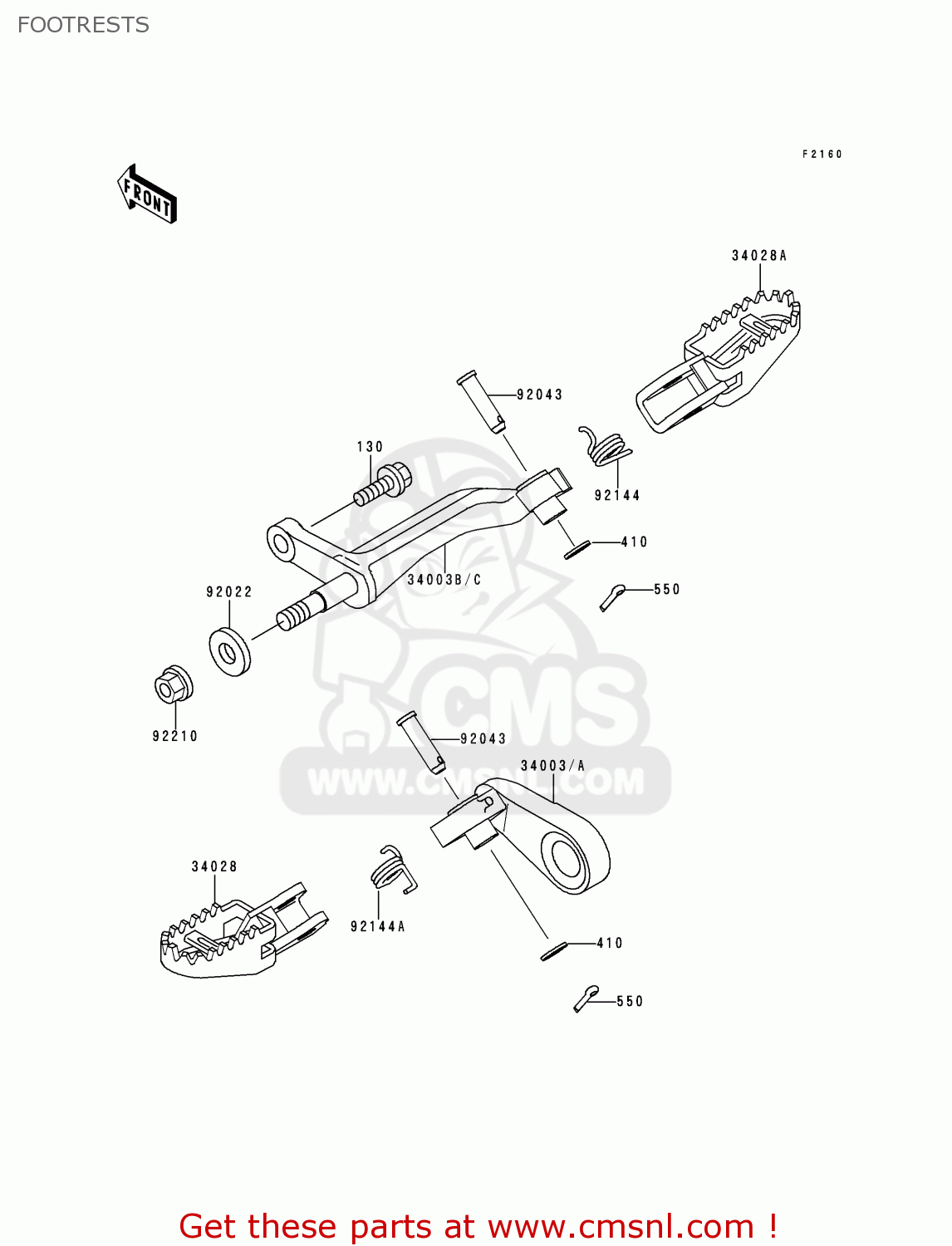

Footrests diagram KLX650D1 KLX650R 1996 EUROPE FRANCE
FOOTRESTS KLX650D1 KLX650R 1996 EUROPE FRANCE
×
prices are in EUR
ref
part #
description
quantity
130
130P1020
ref: 130
BOLT-FLANGED,10X20
€ 1.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
550
550D2515
ref: 550
PIN COTTER,295X15
€ 0.50
34003A
34003137245
ref: 34003A
HOLDER-STEP,LH,J.S.VI
€ 49.00
34003C
34003137345
ref: 34003C
HOLDER-STEP,RH,H.S.VI
€ 64.50
34028
340281361
ref: 34028
STEP,LH
€ 45.00
34028A
340281362
ref: 34028A
STEP,RH
€ 45.00
92022
920221876
ref: 92022
WASHER,10.5X18X2.5
€ 3.00
92043
92043115
ref: 92043
PIN,FOOTREST BAR FIT
€ 6.50
92144
921441685
ref: 92144
SPRING,STEP RETURN,RH
€ 5.00
92144A
921441749
ref: 92144A
SPRING,STEP RETURN,LH
€ 3.50
92210
922101080
ref: 92210
NUT
€ 7.00
