RADIATOR
KLX650D1 1996 USA CANADA

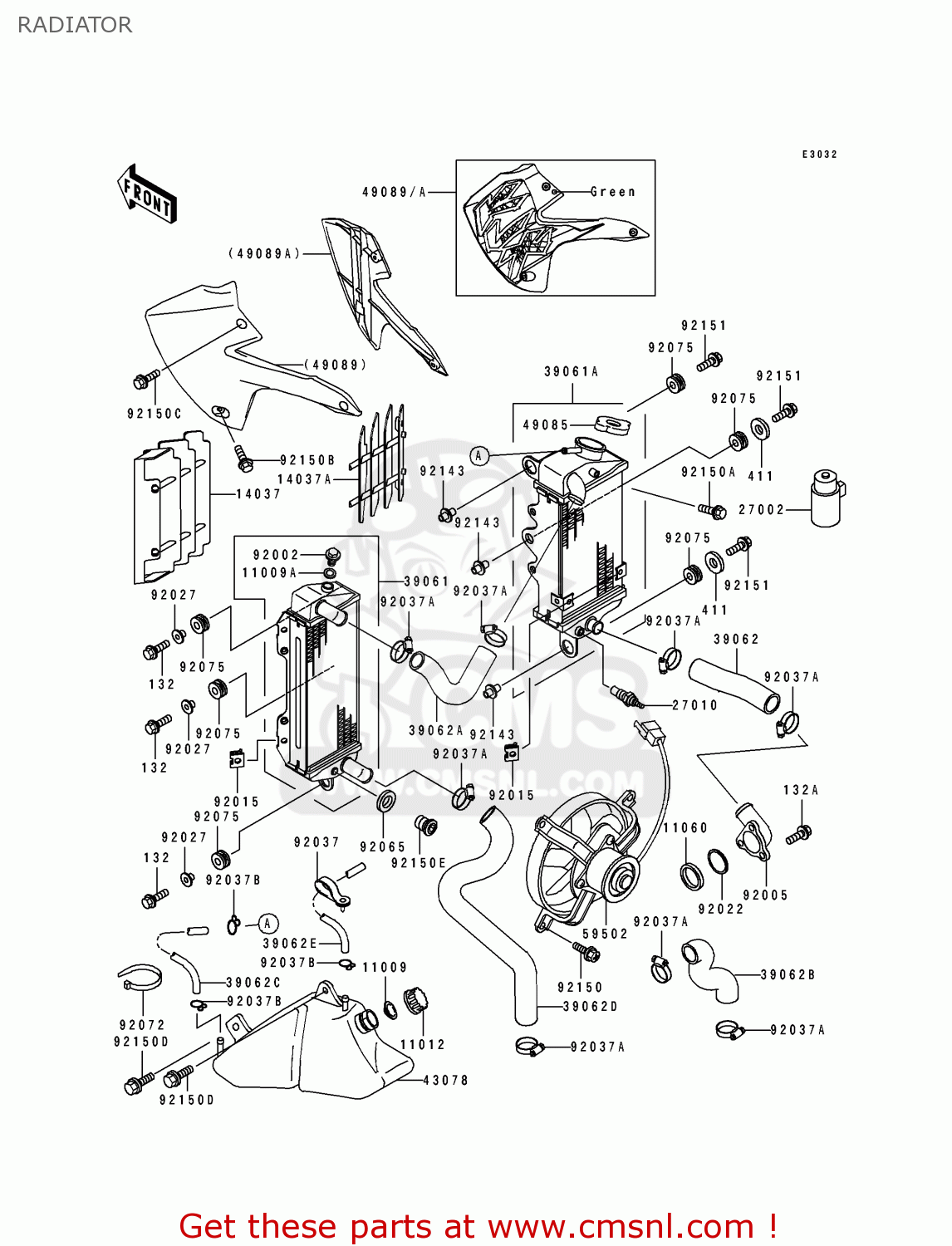

Radiator diagram KLX650D1 1996 USA CANADA
RADIATOR KLX650D1 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
€ 4.50
11012
110121084
ref: 11012
CAP
€ 1.50
11060
110601300
ref: 11060
GASKET,THERMOSTAT (NAS)
€ 4.00
14037
1403711606W
ref: 14037
SCREEN,LH,L.GREEN
€ 23.00
14037A
1403711646W
ref: 14037A
SCREEN,RH,L.GREEN
€ 23.00
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27010
270101180
ref: 27010
SWITCH,FAN
€ 104.50
39061
390611188
ref: 39061
RADIATOR-ASSY,LH
€ 688.50
39061A
390611208
ref: 39061A
RADIATOR-ASSY
€ 688.50
39062
390621514
ref: 39062
HOSE-COOLING,HEAD-RAD
€ 12.00
39062A
390621515
ref: 39062A
HOSE-COOLING,RADIATOR
€ 14.50
39062B
390621517
ref: 39062B
HOSE-COOLING,PUMP-CYL
€ 12.00
39062C
390621560
ref: 39062C
HOSE-COOLING,RESERVOI
€ 13.50
39062D
390621561
ref: 39062D
HOSE-COOLING,RADIATOR
€ 39.00
39062E
390621570
ref: 39062E
HOSE-COOLING,OVERFLOW
€ 7.50
43078
430781128
ref: 43078
RESERVOIR
€ 38.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49089
4908952696W
ref: 49089
SHROUD-ENGINE,LH,L.GR
€ 105.00
49089A
4908952706W
ref: 49089A
SHROUD-ENGINE,RH,L.GR
€ 102.00
59502
595021110
ref: 59502
FAN-ASSY
€ 509.00
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
€ 13.50
92005
920051258
ref: 92005
FITTING
€ 23.00
92015
920151487
ref: 92015
NUT
€ 3.00
92022
92022161
ref: 92022
WASHER-THRUST,25MM
€ 7.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
92037A
920371589
ref: 92037A
CLAMP,COOLING HOSE
€ 13.00
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92072
920721293
ref: 92072
BAND
€ 6.50
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92143
921431834
ref: 92143
COLLAR
€ 2.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92150A
921501339
ref: 92150A
BOLT,6X20
€ 2.50
92150B
921501340
ref: 92150B
BOLT,6X14
€ 3.00
92150C
921501435
ref: 92150C
BOLT
€ 2.50
92150D
921501504
ref: 92150D
BOLT
€ 3.00
92150E
921501867
ref: 92150E
BOLT 10 X 10
€ 3.50
92151
921511056
ref: 92151
BOLT
€ 1.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132Y0612
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
