OIL PUMP
KLX650D1 1996 USA CANADA

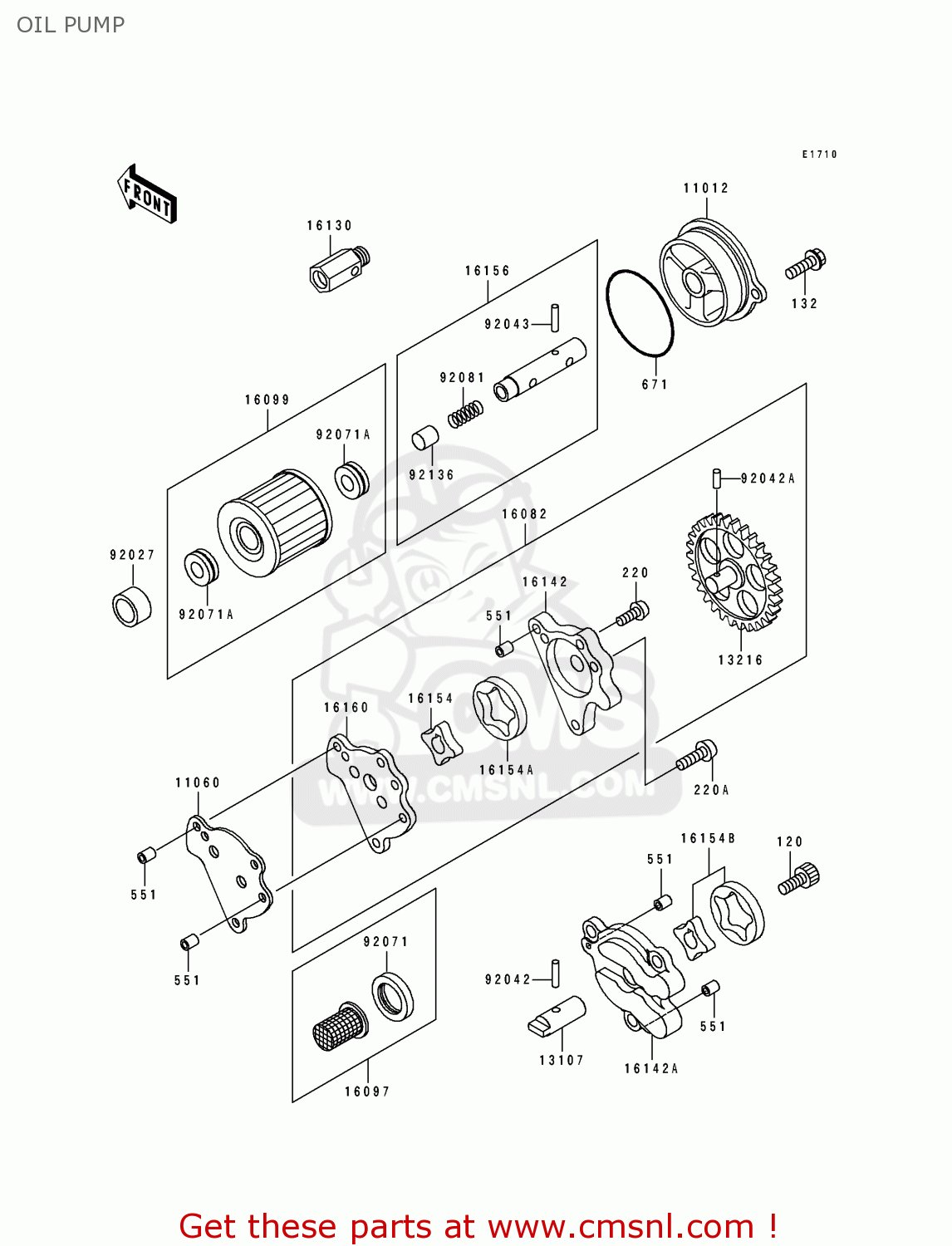

Oil pump diagram KLX650D1 1996 USA CANADA
OIL PUMP KLX650D1 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0616
ref: 120
BOLT,SOCKET,6X16
€ 1.50
132
132Y0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
€ 1.50
551
551A0608
ref: 551
PIN,DOWEL,6X8
€ 2.50
671
671B2555
ref: 671
O RING,55MM
€ 4.00
11012
110121826
ref: 11012
CAP,OIL FILTER
€ 40.50
11060
110601115
ref: 11060
GASKET,OIL PUMP (NAS)
€ 3.00
13107
131071304
ref: 13107
SHAFT,OIL PUMP
€ 13.00
13216
132161139
ref: 13216
GEAR-COMP,OIL PUMP
€ 112.00
16082
160821129
ref: 16082
PUMP-ASSY-OIL
€ 151.50
16097
160971001
ref: 16097
STRAINER ASSY,OIL
€ 5.00
16099
16099004
ref: 16099
FILTER, OIL
€ 5.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
16142
161421078
ref: 16142
COVER-PUMP
€ 26.50
16142A
161421121
ref: 16142A
COVER-PUMP
€ 27.00
16154
161541069
ref: 16154
ROTOR-PUMP,INNER
€ 11.50
16154A
161541070
ref: 16154A
ROTOR-PUMP,OUTER
€ 15.00
16154B
161541101
ref: 16154B
ROTOR-PUMP,OIL
€ 25.00
16156
16156002
ref: 16156
PISTON-ASSY,VALVE,BY-
€ 15.50
16160
161601137
ref: 16160
BODY
€ 25.00
92027
920271695
ref: 92027
COLLAR,13X20X9
€ 6.50
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
€ 0.50
92042A
92042041
ref: 92042A
PIN,DOWEL
€ 4.50
92043
92043123
ref: 92043
SPRING PIN
€ 3.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
€ 3.50
92071A
92071101
ref: 92071A
GROMMET, OIL FILTER
€ 3.50
92081
92081043
ref: 92081
SPRING, PISTON
€ 3.50
92136
92136002
ref: 92136
PISTON
€ 3.00
