LABELS
KLX650D1 1996 USA CANADA

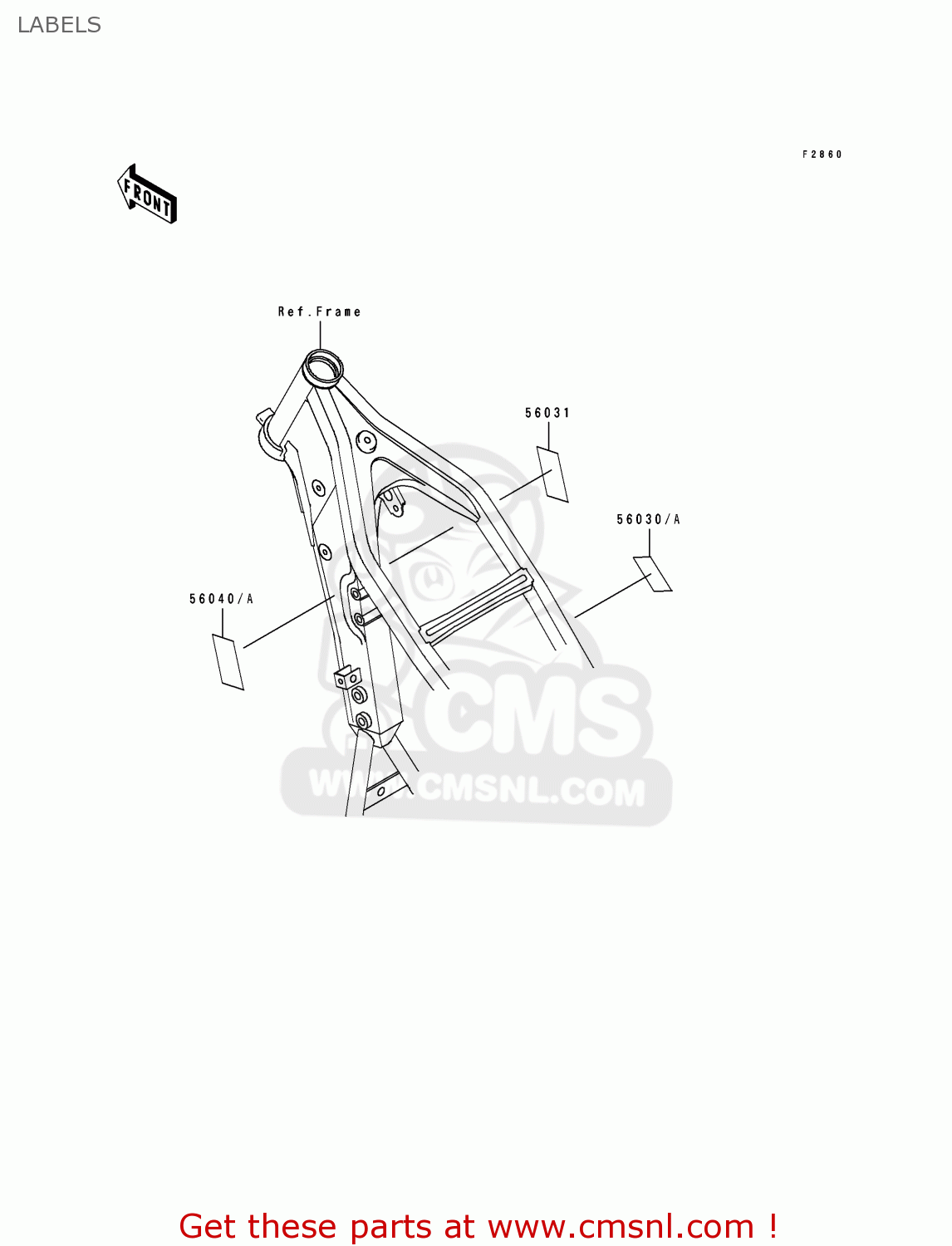

Labels diagram KLX650D1 1996 USA CANADA
LABELS KLX650D1 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
56030
560301177
ref: 56030
US
LABEL,GASOLINE
€ 4.00
56030A
560301178
ref: 56030A
CN
LABEL,GASOLINE
€ 3.50
56031
560311905
ref: 56031
LABEL-MANUAL,OIL&OIL
€ 3.50
56040
560401018
ref: 56040
US
LABEL-WARNING,OFF-ROA
€ 3.00
56040A
560401304
ref: 56040A
CN
LABEL-WARNING,OFF-ROA
€ 4.00
