BRAKE PEDAL
KLX650D1 1996 USA CANADA

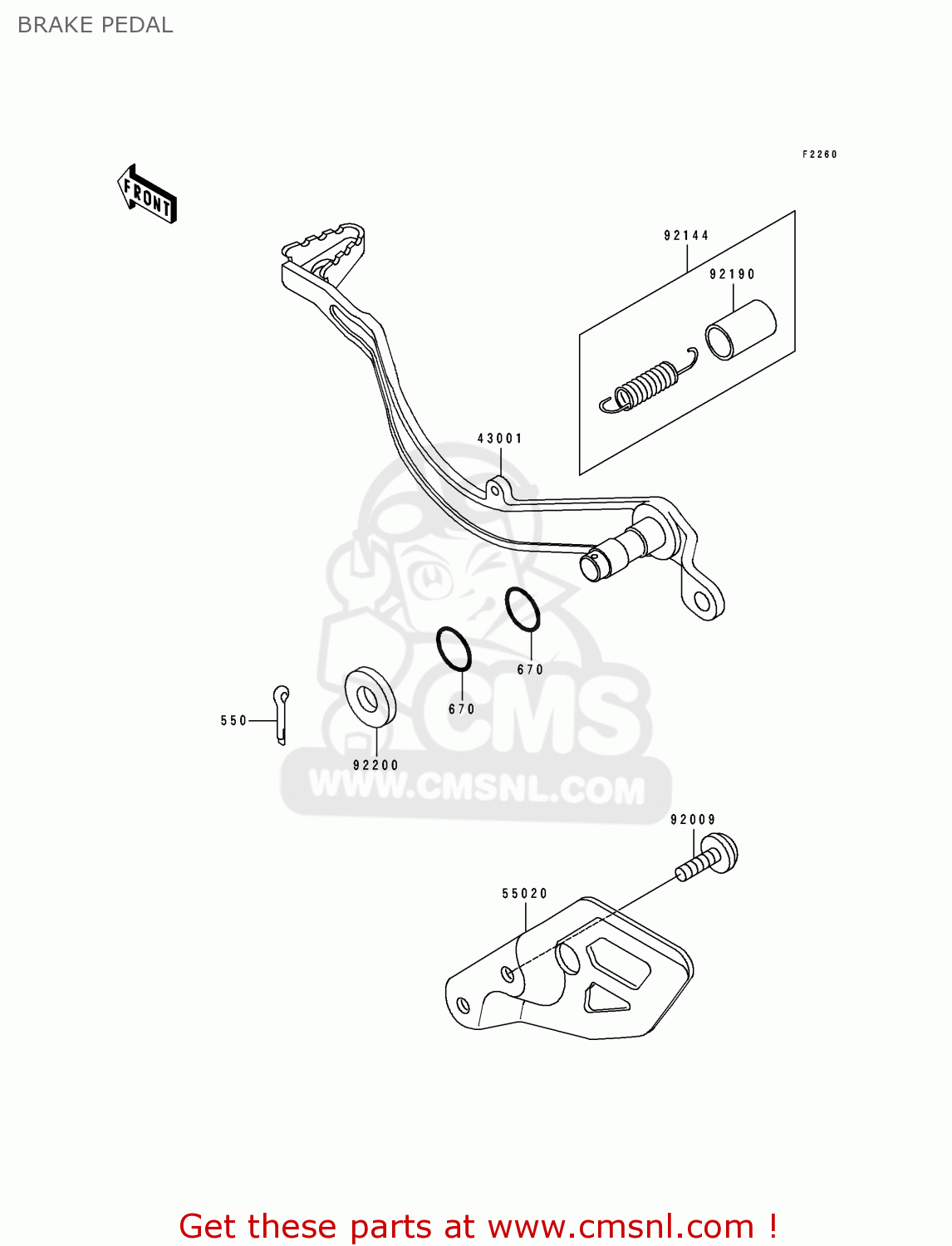

Brake pedal diagram KLX650D1 1996 USA CANADA
BRAKE PEDAL KLX650D1 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
550
550D2525
ref: 550
PIN-COTTER,2.5X25
€ 1.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
43001
430011318
ref: 43001
LEVER-BRAKE,PEDAL
€ 51.00
55020
550201445
ref: 55020
GUARD,RR MASTER CYLIN
€ 13.50
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92144
921441752
ref: 92144
SPRING,BRAKE PEDAL RE
€ 4.50
92190
921901488
ref: 92190
TUBE,13X16X25
€ 2.00
92200
922001171
ref: 92200
WASHER,14.5X24X1.6
€ 2.50
