SHOCK ABSORBER(S)

KLX400A1 KLX400SR 2003 USA CALIFORNIA

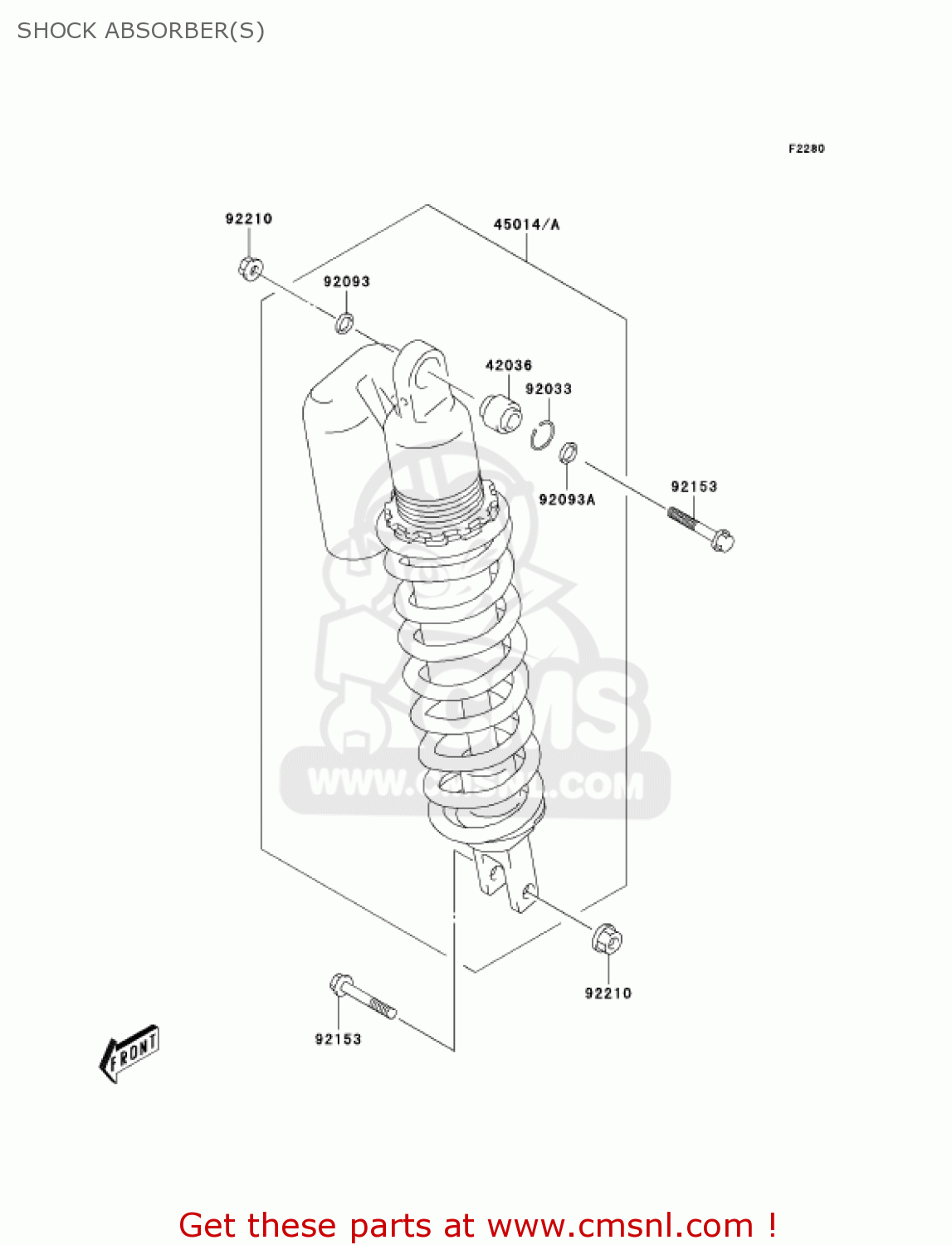

Shock absorber(s) diagram KLX400A1 KLX400SR 2003 USA CALIFORNIA

SHOCK ABSORBER(S) KLX400A1 KLX400SR 2003 USA CALIFORNIA

SHOCK ABSORBER(S) KLX400A1 KLX400SR 2003 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

42036

42036S001
ref: 42036

SLEEVE,10X26X22

€ 44.00

45014

45014S023567
ref: 45014

SHOCKABSORBER,P.YELLO

€ 824.00

92033

92033S048
ref: 92033

RING-SNAP

€ 2.50

92093

92093S046
ref: 92093

SEAL

€ 4.50

92093A

92093S047
ref: 92093A

SEAL

€ 4.50

92153

92153S355
ref: 92153

BOLT,10X47.5

€ 3.00

92210

92210S015
ref: 92210

NUT

€ 4.50
