CYLINDER HEAD
KLX400A1 KLX400SR 2003 USA CALIFORNIA

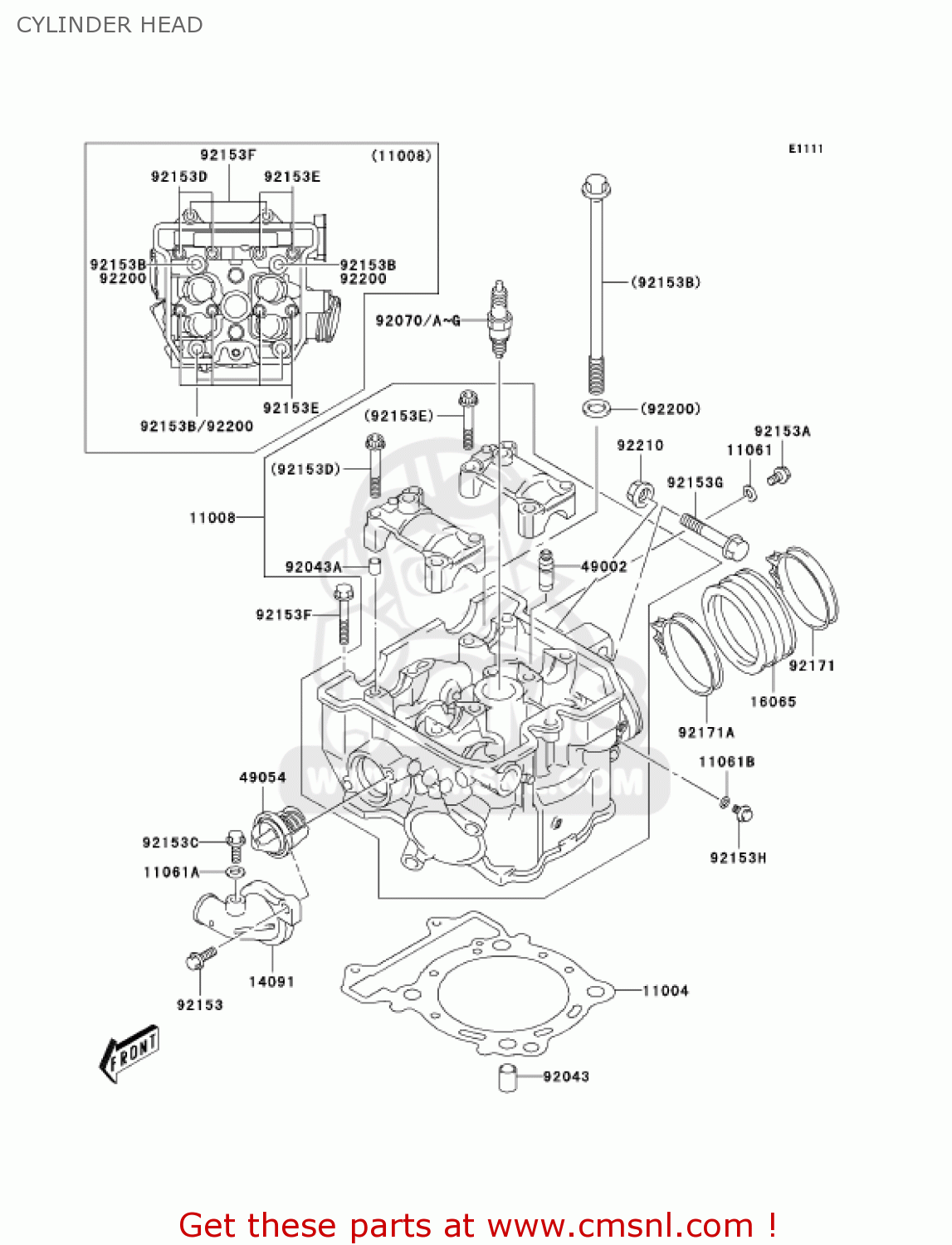

Cylinder head diagram KLX400A1 KLX400SR 2003 USA CALIFORNIA
CYLINDER HEAD KLX400A1 KLX400SR 2003 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11004
11004S006
ref: 11004
GASKET-HEAD (NAS)
€ 24.50
11008
11008S005
ref: 11008
HEAD-COMP-CYLINDER
€ 429.50
11061
11061S001
ref: 11061
GASKET,5.8X13X1.2 (NAS)
€ 2.50
11061A
11061S002
ref: 11061A
GASKET,6.4X11.5X0.8 (NAS)
€ 1.50
11061B
11061S020
ref: 11061B
GASKET,8.2X14X1 (NAS)
€ 2.00
14091
14091S102
ref: 14091
COVER,THERMOSTAT
€ 20.00
16065
16065S009
ref: 16065
HOLDER-CARBURETOR
€ 12.00
49002
49002S003
ref: 49002
GUIDE-VALVE
€ 18.50
49054
49054S005
ref: 49054
THERMOSTAT,WATER
€ 38.00
92043
92043S003
ref: 92043
PIN
€ 2.50
92043A
92043S004
ref: 92043A
PIN,6.2X8X11
€ 3.00
92070
92070S001
ref: 92070
CR8E (NGK SPARKPLUG)
€ 8.50
92070A
92070S002
ref: 92070A
U24ESR-N(DENSO SPARKP
€ 8.50
92070B
92070S003
ref: 92070B
(OPTION)
CR9E (NGK SPARKPLUG)
€ 8.50
92070C
92070S004
ref: 92070C
(OPTION)
U27ESR-N SPARKPLUG DE
€ 8.50
92070D
92070S005
ref: 92070D
(OPTION)
PLUG-SPARK,U22ESR-N(N
€ 8.50
92070E
92070S006
ref: 92070E
(OPTION)
CR7E (NGK SPARKPLUG)
€ 8.50
92070F
92070S024
ref: 92070F
(OPTION)
PLUG-SPARK,CR10E(NGK)
€ 4.50
92070G
92070S025
ref: 92070G
(OPTION)
PLUG-SPARK,U31ESR(ND)
€ 6.50
92153
92153S001
ref: 92153
BOLT
€ 1.50
92153A
92153S010
ref: 92153A
BOLT
€ 32.50
92153B
92153S036
ref: 92153B
BOLT,10X175
€ 12.50
92153C
92153S055
ref: 92153C
BOLT,AIR VENT
€ 3.00
92153D
92153S214
ref: 92153D
BOLT,CLUTCH COVER
€ 2.00
92153E
92153S253
ref: 92153E
BOLT
€ 2.00
92153F
92153S263
ref: 92153F
BOLT,6X39
€ 2.00
92153G
92153S332
ref: 92153G
BOLT,10X50
€ 3.50
92153H
92153S333
ref: 92153H
BOLT,8X9.5
€ 2.50
92171
92171S030
ref: 92171
CLAMP
€ 3.50
92171A
92171S090
ref: 92171A
CLAMP
€ 5.00
92200
92200S009
ref: 92200
WASHER,10.5X19X2.0
€ 2.00
92210
92210S015
ref: 92210
NUT
€ 4.50
