CYLINDER HEAD COVER

KLX400A1 KLX400SR 2003 USA CALIFORNIA

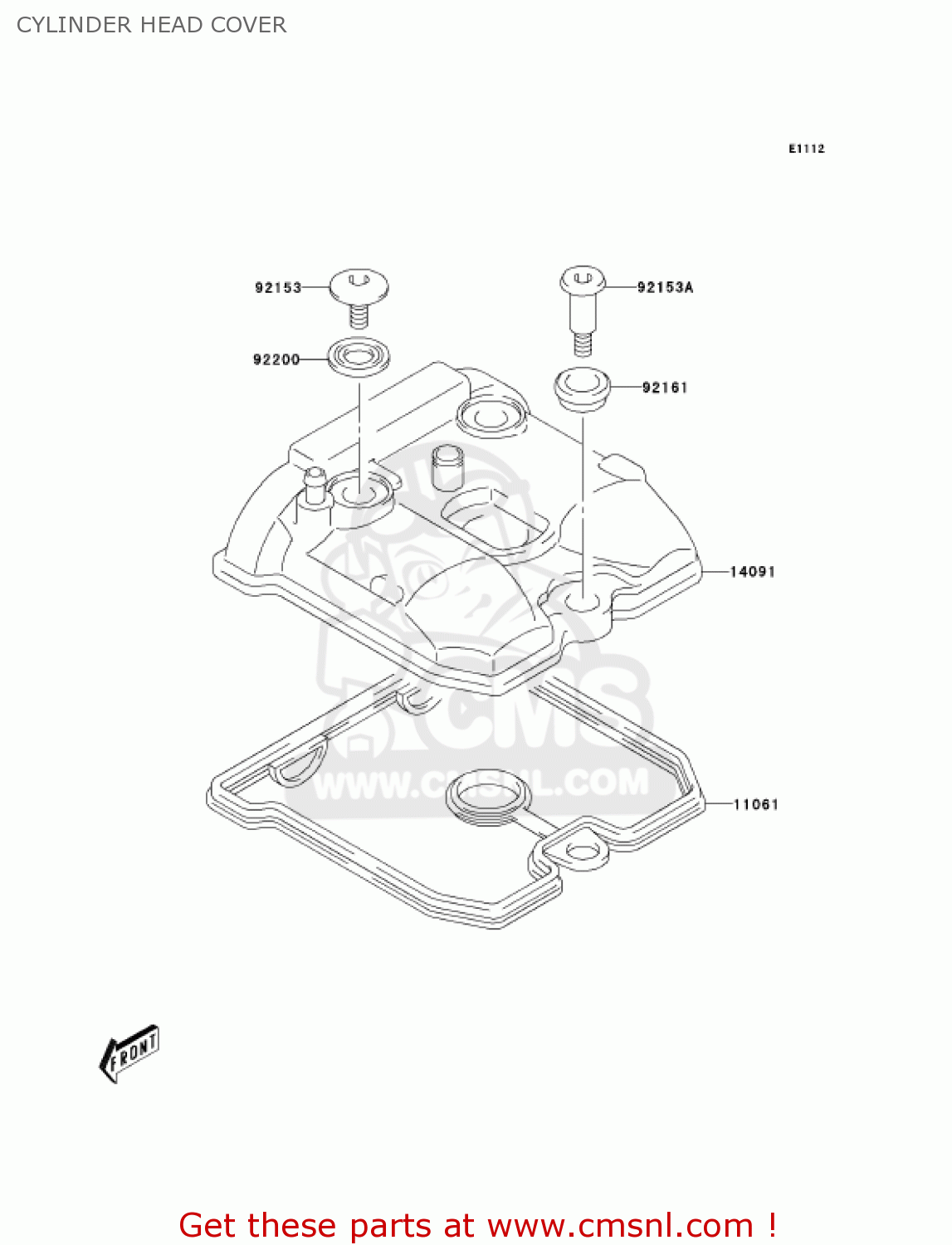

Cylinder head cover diagram KLX400A1 KLX400SR 2003 USA CALIFORNIA

CYLINDER HEAD COVER KLX400A1 KLX400SR 2003 USA CALIFORNIA

CYLINDER HEAD COVER KLX400A1 KLX400SR 2003 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

11061

11061S069
ref: 11061

GASKET,HEAD COVER (NAS)

€ 39.00

14091

14091S101
ref: 14091

COVER,CYLINDER HEAD

€ 227.00

92153

92153S280
ref: 92153

BOLT,HEAD COVER,7X17.

€ 4.50

92153

92153S281
ref: 92153

BOLT,HEAD COVER,7X31

€ 7.50

92161

92161S092
ref: 92161

DAMPER,HEAD COVER BOL

€ 4.00

92200

92200S015
ref: 92200

WASHER

€ 4.00
