GEAR CHANGE MECHANISM

KLX400A1 KLX400SR 2003 USA CALIFORNIA

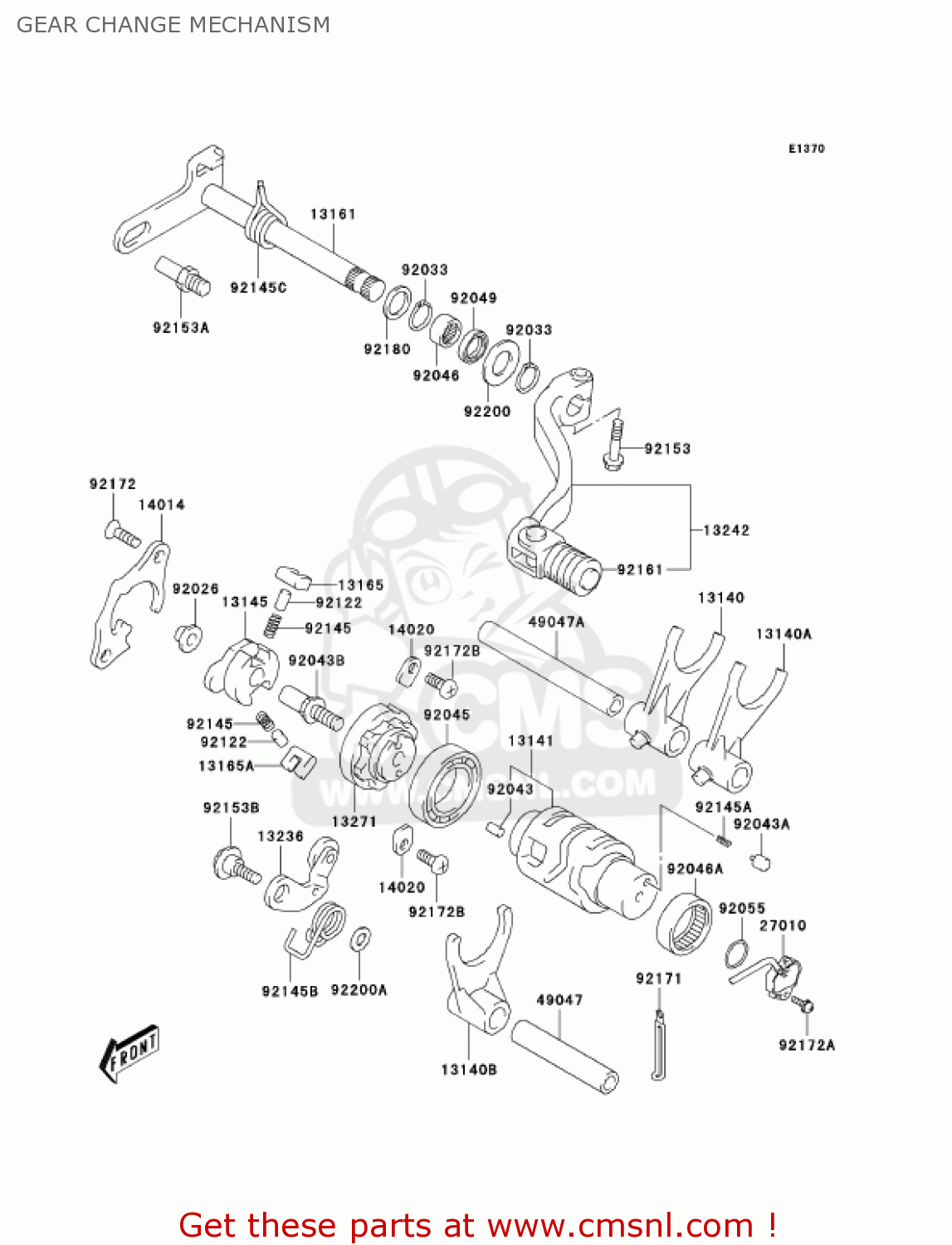

Gear change mechanism diagram KLX400A1 KLX400SR 2003 USA CALIFORNIA

GEAR CHANGE MECHANISM KLX400A1 KLX400SR 2003 USA CALIFORNIA
GEAR CHANGE MECHANISM KLX400A1 KLX400SR 2003 USA CALIFORNIA
GEAR CHANGE MECHANISM KLX400A1 KLX400SR 2003 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13140
13140S012
ref: 13140
FORK-SHIFT
€ 37.50
13140A
13140S013
ref: 13140A
FORK-SHIFT
€ 37.50
13140B
13140S014
ref: 13140B
FORK-SHIFT
€ 37.50
13141
13141S007
ref: 13141
DRUM-CHANGE
€ 76.50
13145
13145S004
ref: 13145
CAM-CHANGE DRUM
13145S004
€ 40.00
13161
13161S006
ref: 13161
LEVER-COMP-CHANGE SHA
€ 88.00
13165
13165S003
ref: 13165
PAWL
€ 9.50
13165A
13165S004
ref: 13165A
PAWL
€ 9.50
13236
13236S006
ref: 13236
LEVER-COMP
€ 9.50
13242
13242S005
ref: 13242
LEVER-ASSY-CHANGE
13242S005
€ 39.00
13271
13271S046
ref: 13271
PLATE
13271S046
€ 31.00
14014
14014S004
ref: 14014
PLATE-POSITION
€ 10.00
14020
14020S008
ref: 14020
RETAINER
14020S008
€ 2.50
27010
27010S028
ref: 27010
SWITCH
€ 60.00
49047
49047S007
ref: 49047
ROD-SHIFT
€ 9.00
49047A
49047S008
ref: 49047A
ROD-SHIFT
€ 11.50
92026
92026S087
ref: 92026
SPACER,GEAR SHIFT CAM
92026S087
€ 4.00
92033
92033S037
ref: 92033
RING-SNAP
92033S037
€ 1.50
92043
92043S035
ref: 92043
PIN,CAM STOPPER PLATE
€ 1.50
92043A
92043S038
ref: 92043A
PIN,GEAR SHIFT
92043S038
€ 3.00
92043B
92043S041
ref: 92043B
PIN,SHIFT CAM
€ 9.00
92045
92045S047
ref: 92045
BEARING-BALL,GEAR SHI
€ 25.00
92046
92046S008
ref: 92046
BEARING-NEEDLE,14X20X
92046S008
€ 13.00
92046A
92046S020
ref: 92046A
BEARING-NEEDLE,GEAR S
92046S020
€ 21.00
92049
92049S050
ref: 92049
SEAL-OIL,GEAR SHIFT
92049S050
€ 10.50
92055
92055S055
ref: 92055
RING-O,26.2X2.4
€ 3.50
92122
92122S005
ref: 92122
ROLLER,5X8
€ 2.50
92145
92145S037
ref: 92145
SPRING
€ 2.00
92145A
92145S089
ref: 92145A
SPRING
92145S089
€ 2.00
92145B
92145S128
ref: 92145B
SPRING
€ 2.50
92145C
92145S137
ref: 92145C
SPRING
€ 4.50
92153
92153S003
ref: 92153
BOLT
€ 1.50
92153A
92153S292
ref: 92153A
BOLT
€ 3.00
92153B
92153S328
ref: 92153B
BOLT,CAM STOPPER
€ 4.00
92161
92161S057
ref: 92161
DAMPER,GEAR SHIFT PED
€ 3.50
92171
92171S132
ref: 92171
CLAMP,OIL HOSE NO.2
€ 2.50
92172
92172S112
ref: 92172
SCREW
€ 1.50
92172A
92172S132
ref: 92172A
SCREW
€ 1.50
92172B
92172S170
ref: 92172B
SCREW
€ 3.00
92180
92180S045
ref: 92180
SHIM,GEAR SHIFT
92180S045
€ 3.00
92200
92200S086
ref: 92200
WASHER,ONE WAY CLUTCH
92200S086
€ 3.00
92200A
92200S127
ref: 92200A
WASHER
92200S127
€ 2.00
