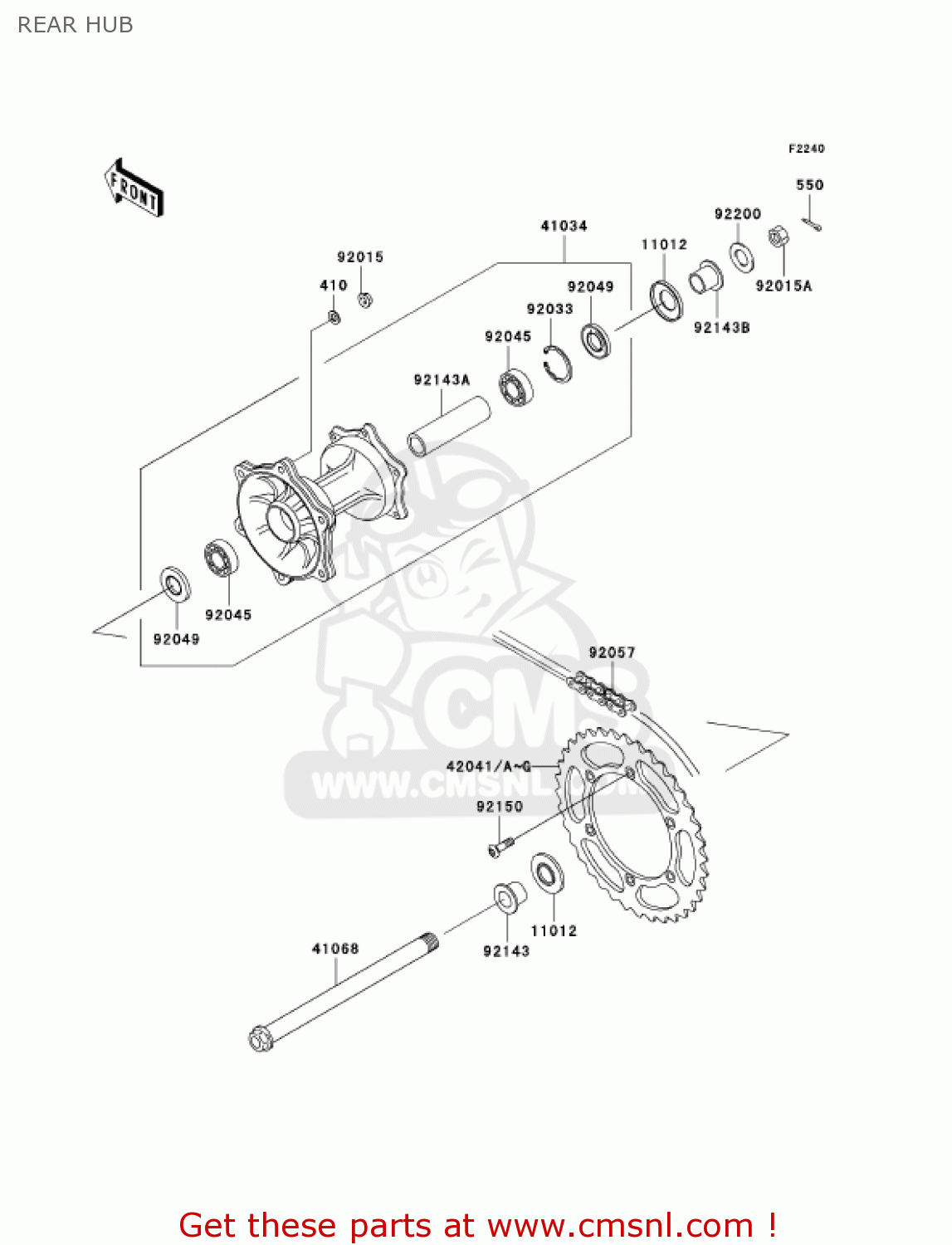

REAR HUB

ref

part #

description

quantity

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

11012

110121581
ref: 11012

CAP,AXLE

€ 4.00

41034

410341216
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 424.50

41068

410680014
ref: 41068

AXLE,RR

€ 65.00

42041

420411381
ref: 42041
(OPTION)

SPROCKET-HUB,46T

€ 38.50

42041A

420411382
ref: 42041A
(OPTION)

SPROCKET-HUB,47T

€ 38.50

42041B

420411383
ref: 42041B
(OPTION)

SPROCKET, HUB, 48T

€ 38.50

42041C

420411384
ref: 42041C
(OPTION)

SPROCKET-HUB,49T

€ 38.50

42041D

420411408
ref: 42041D

SPROCKET-HUB,50T

€ 37.00

42041E

420411413
ref: 42041E
(OPTION)

SPROCKET-HUB,45T

€ 38.50

42041F

420411428
ref: 42041F
(OPTION)

SPROCKET-HUB,51T

€ 37.00

42041G

420411429
ref: 42041G
(OPTION)

SPROCKET-HUB,52T

€ 50.50

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151770
ref: 92015A

NUT,LOCK,20MM

€ 19.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92045

920451239
ref: 92045

BEARING-BALL,6004X8JR

€ 30.00

92049

920491203
ref: 92049

SEAL-OIL,BJNC2 25425

€ 12.00

92057

920571410
ref: 92057

CHAIN,DRIVE,DID520VL2

€ 85.50

92143

921431259
ref: 92143

COLLAR,RR AXLE,L=22

€ 26.00

92143A

921431402
ref: 92143A

COLLAR,RR BRAKE DRUM,

€ 10.50

92143B

921431840
ref: 92143B

COLLAR,RR AXLE,RH,L=2

€ 26.00

92150

921501978
ref: 92150

BOLT

€ 5.50

92200

922001146
ref: 92200

WASHER,20.2X36X2

€ 3.00

all assemblies
