CRANKCASE

KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA

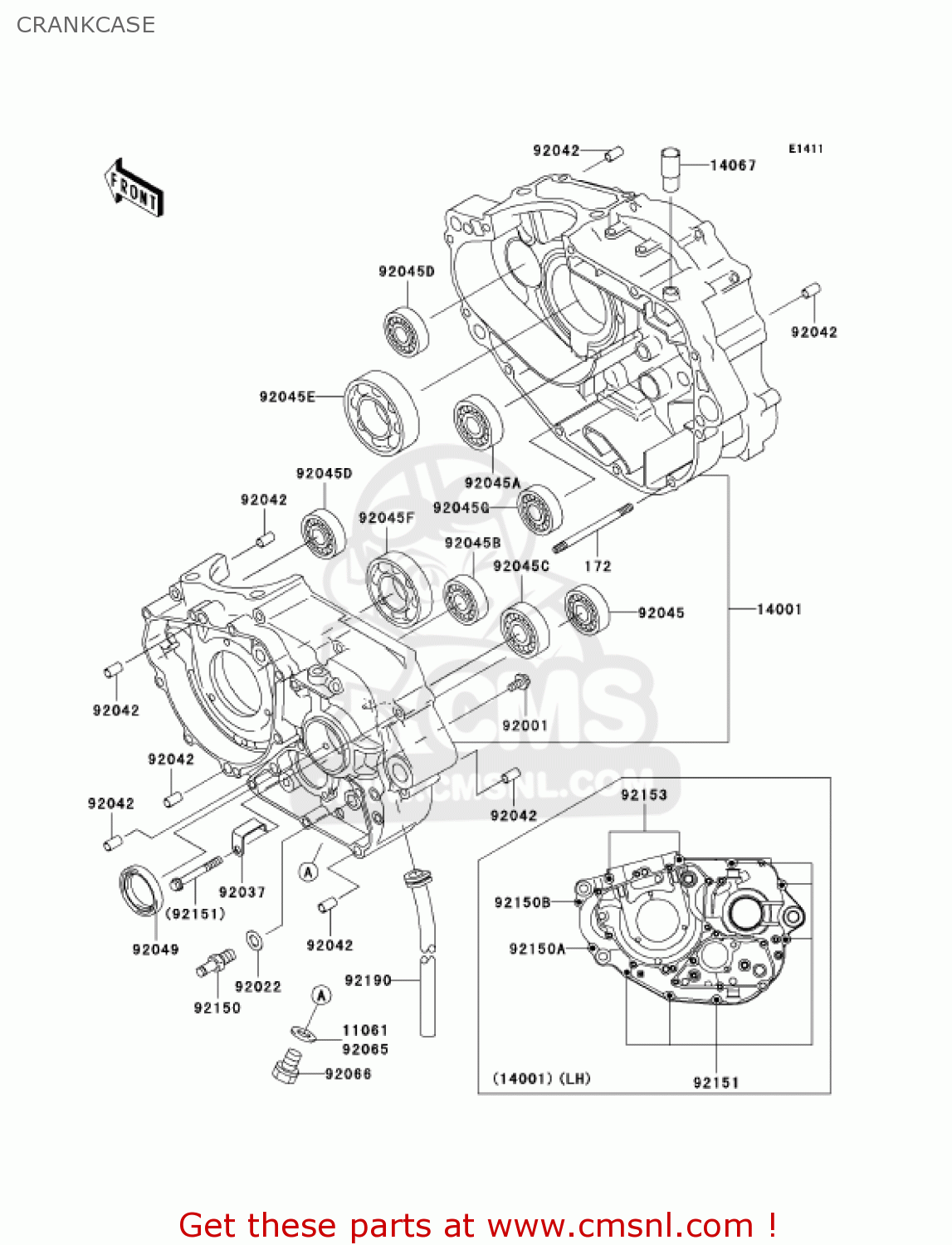

Crankcase diagram KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA

CRANKCASE KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA
CRANKCASE KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA
CRANKCASE KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
172
172G0680
ref: 172
STUD,6X80
172G0680
€ 1.50
11061
110610222
ref: 11061
GASKET,10.5X16X2 (NAS)
110610222
€ 4.00
14001
140015355
ref: 14001
SET-CRANKCASE
€ 837.50
14067
14067006
ref: 14067
BREATHER JOINT
14067006
€ 14.00
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
920011829
€ 2.50
92022
920221415
ref: 92022
WASHER,10.2X18X1.0,SK
920221415
€ 3.00
92037
920371318
ref: 92037
CLAMP,HARNESS
920371318
€ 4.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 29.00
92045A
920451041
ref: 92045A
BEARING-BALL,TMB204 J
920451041
€ 32.50
92045B
920451287
ref: 92045B
BEARING-BALL,TMB203LU
920451287
€ 25.00
92045C
920451288
ref: 92045C
BEARING-BALL,TMB205LU
920451288
€ 32.00
92045D
920451346
ref: 92045D
BEARING-BALL,TMB302JR
920451346
€ 17.50
92045E
920451347
ref: 92045E
BEARING-BALL,TMB306JR
920451347
€ 40.50
92045F
920451348
ref: 92045F
BEARING-BALL,3TM-6207
920451348
€ 40.50
92045G
920451414
ref: 92045G
BEARING-BALL,DG204012
920451414
€ 29.50
92049
920491577
ref: 92049
SEAL-OIL
920491577
€ 8.50
92066
920661241
ref: 92066
PLUG
920661241
€ 4.00
92150
921501803
ref: 92150
BOLT,RETURN SPRING
921501803
€ 6.50
92150A
921501874
ref: 92150A
BOLT,SOCKET,6X50
€ 3.50
92150B
921501875
ref: 92150B
BOLT,SOCKET,6X35
921501875
€ 3.00
92151
921511234
ref: 92151
BOLT,6X50
921511234
€ 1.50
92153
921530018
ref: 92153
BOLT,FLANGED,6X70
€ 2.50
92190
921901493
ref: 92190
TUBE
921901493
€ 8.00
