ENGINE COVER(S)

KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA

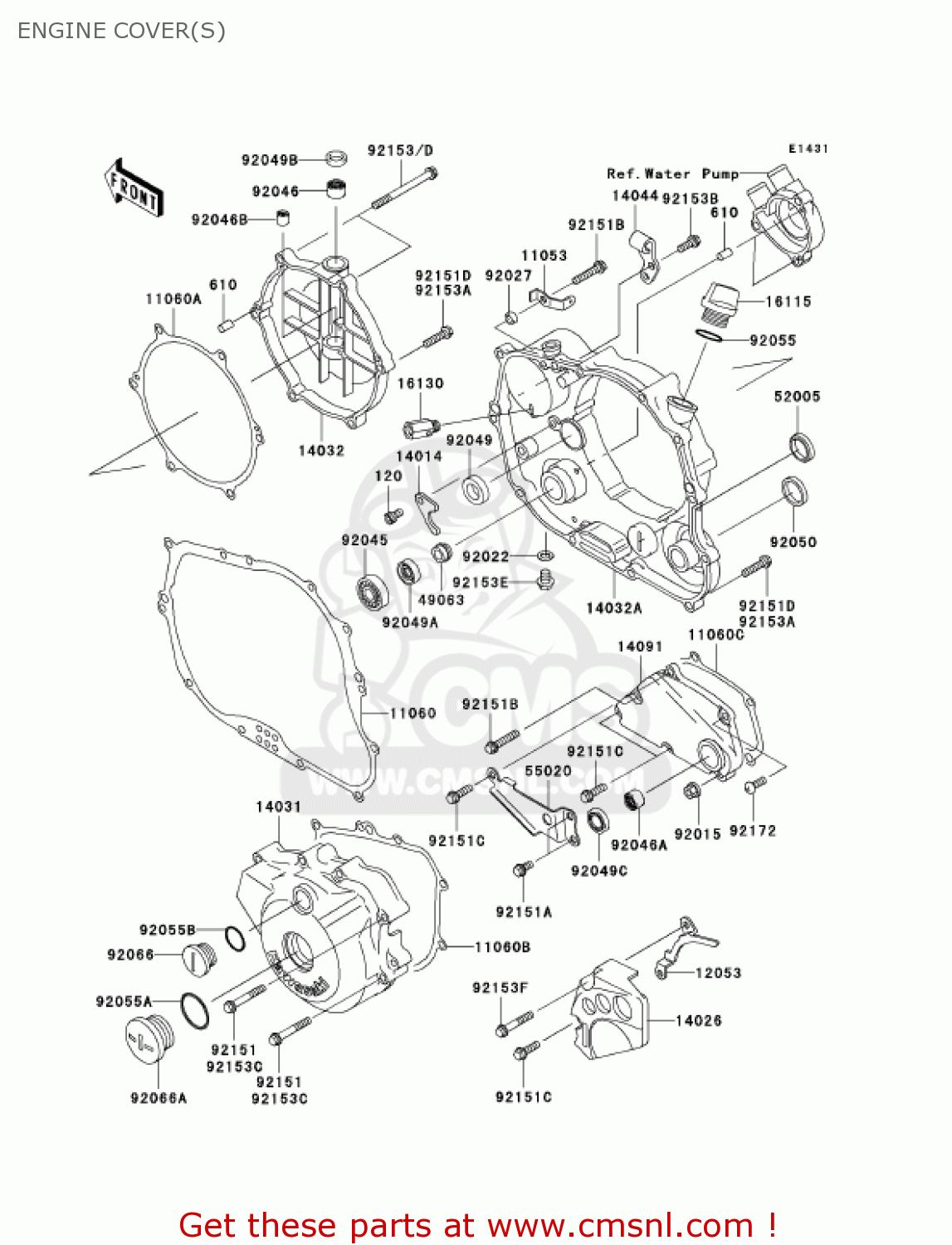

Engine cover(s) diagram KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA

ENGINE COVER(S) KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA
ENGINE COVER(S) KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA
ENGINE COVER(S) KLX300A7F KLX300R 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11053
110531656
ref: 11053
BRACKET
110531656
€ 6.00
11060
110601324
ref: 11060
GASKET,CLUTCH COVER I (NAS)
110601324
€ 28.50
11060A
110601325
ref: 11060A
GASKET,CLUTCH COVER O (NAS)
110601325
€ 10.50
11060B
110601326
ref: 11060B
GASKET,GENERATOR COVE (NAS)
110601326
€ 13.50
11060C
110601327
ref: 11060C
GASKET,TRANSMISSION C (NAS)
110601327
€ 9.00
12053
120531337
ref: 12053
GUIDE-CHAIN
120531337
€ 9.00
14014
140141062
ref: 14014
PLATE-POSITION
€ 5.50
14026
140260027
ref: 14026
COVER-CHAIN
140260027
€ 24.00
14031
140310053
ref: 14031
COVER-GENERATOR
€ 111.50
14032
140320058
ref: 14032
COVER-CLUTCH,OUTER
€ 58.50
14032A
140320059
ref: 14032A
COVER-CLUTCH,INNER
€ 174.00
14044
140441078
ref: 14044
HOLDER-CABLE
€ 5.00
14091
140910026
ref: 14091
COVER,TRANSMISSION
€ 66.00
16115
161151053
ref: 16115
CAP-OIL FILLER
161151053
€ 12.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
49063
490631055
ref: 49063
SEAL-MECHANICAL
490631055
€ 17.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
55020
550201460
ref: 55020
GUARD,TRANSMISSION CO
550201460
€ 11.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
920221488
€ 3.00
92027
920271885
ref: 92027
COLLAR
920271885
€ 4.00
92045
920451246
ref: 92045
BEARING-BALL,6901
920451246
€ 29.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92046A
920461148
ref: 92046A
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92046B
920461230
ref: 92046B
BEARING-NEEDLE
920461230
€ 15.50
92049
920491191
ref: 92049
SEAL-OIL
920491191
€ 16.00
92049A
920491228
ref: 92049A
SEAL-OIL,AC037AE0
920491228
€ 7.00
92049B
920491262
ref: 92049B
SEAL-OIL
920491262
€ 4.00
92049C
920491559
ref: 92049C
SEAL-OIL
920491559
€ 3.00
92050
92050078
ref: 92050
OIL SEAL
92050078
€ 5.50
92055
92055012
ref: 92055
'O' RING 18MM
92055012
€ 1.00
92055A
92055091
ref: 92055A
0 RING
92055091
€ 4.00
92055B
920551146
ref: 92055B
RING-O
920551146
€ 5.50
92066
920661397
ref: 92066
PLUG
920661397
€ 10.00
92066A
920661404
ref: 92066A
PLUG
920661404
€ 12.00
92151
921511131
ref: 92151
[CA,US
BOLT,6X40
921511131
€ 3.00
92151A
921511133
ref: 92151A
BOLT,6X12
921511133
€ 1.50
92151B
921511134
ref: 92151B
BOLT,6X30
921511134
€ 1.50
92151C
921511252
ref: 92151C
BOLT,FLANGED-SMALL,6X
921511252
€ 1.00
120
120P0610
ref: 120
BOLT-SOCKET,6X10
120P0610
€ 1.00
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
92151D
921511930
ref: 92151D
[CA,US
BOLT,6X25
921511930
€ 2.00
92153
921530018
ref: 92153
[CA,US
BOLT,FLANGED,6X70
€ 2.50
92153A
921530604
ref: 92153A
[CN]
BOLT,6X25
921530604
€ 2.00
92153B
921530695
ref: 92153B
BOLT,6X16
921530695
€ 2.00
92153C
921530980
ref: 92153C
[CN]
BOLT,FLANGED-SMALL,M6
€ 1.50
92153D
921530981
ref: 92153D
[CN]
BOLT,FLANGED-SMALL,M6
€ 1.50
92153E
921531342
ref: 92153E
BOLT,FLANGED,8X10
€ 2.00
92153F
921531351
ref: 92153F
BOLT,FLANGED,6X35
€ 4.00
92172
921720223
ref: 92172
SCREW,6X16
921720223
€ 1.50
