STARTER MOTOR
KLX250J2 DTRACKER 1999 GREECE

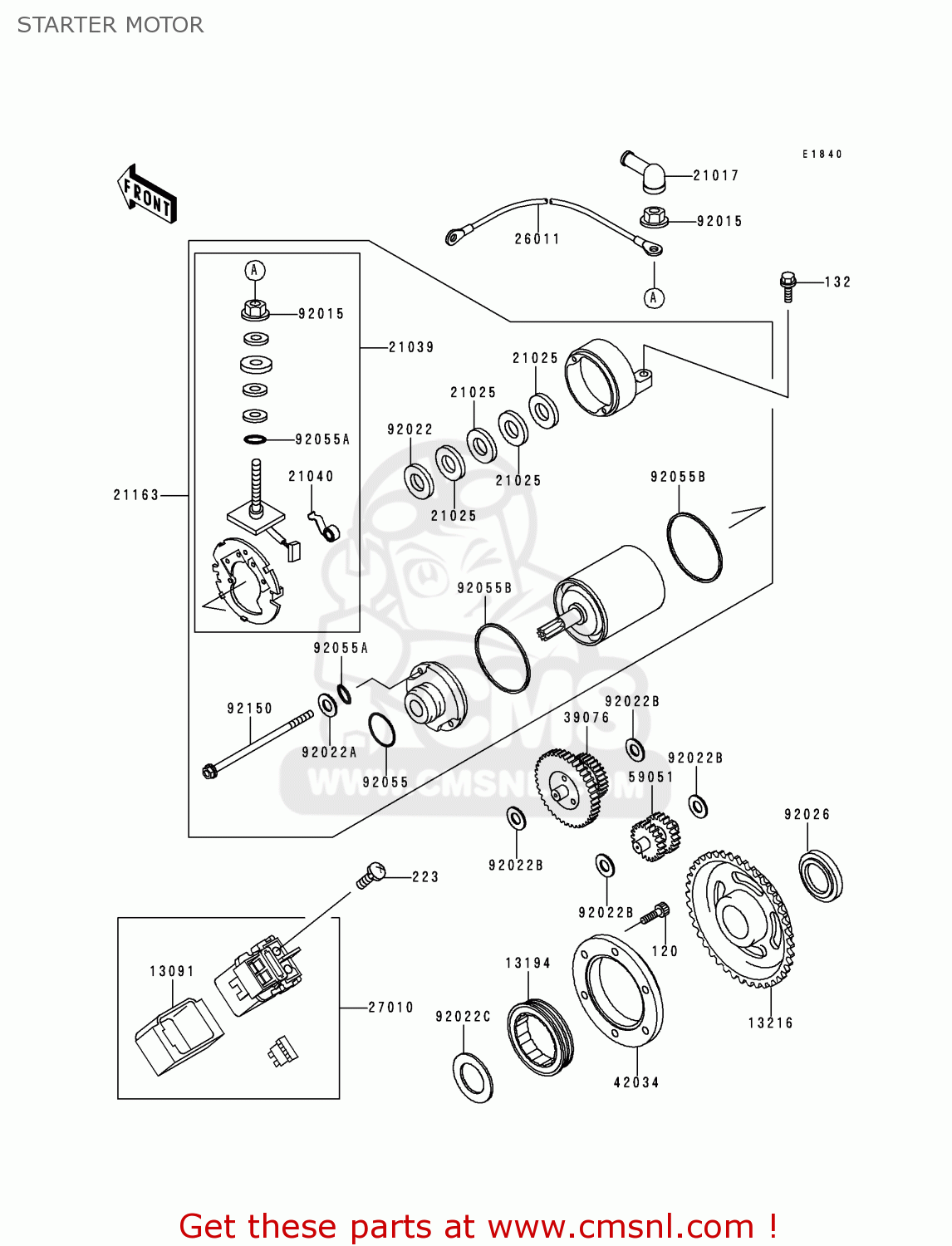

Starter motor diagram KLX250J2 DTRACKER 1999 GREECE
STARTER MOTOR KLX250J2 DTRACKER 1999 GREECE
×
prices are in EUR
ref
part #
description
quantity
120
120P0616
ref: 120
BOLT,SOCKET,6X16
€ 1.50
132
132Y0630
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
223
223D0510
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
13091
130911883
ref: 13091
HOLDER,SWITCH
€ 5.50
13194
131941084
ref: 13194
CLUTCH-ONEWAY
€ 102.50
13216
132161148
ref: 13216
GEAR-COMP,ONEWAY CLUT
€ 175.00
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391062
ref: 21039
BRUSH,CARBON
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631256
ref: 21163
STARTER-ELECTRIC
€ 434.00
26011
260111604
ref: 26011
WIRE-LEAD
€ 57.00
27010
270101336
ref: 27010
SWITCH
€ 104.50
39076
390761069
ref: 39076
LIMITER,STARTER IDLER
€ 150.00
42034
420341137
ref: 42034
COUPLING,ONEWAY CLUTC
€ 109.50
59051
590511304
ref: 59051
GEAR-SPUR,IDLE
€ 70.00
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92022A
920221458
ref: 92022A
WASHER,LOCK,T=2.0
€ 3.50
92022B
920221649
ref: 92022B
WASHER,10.2X20X0.5
€ 2.50
92022C
920221781
ref: 92022C
WASHER,27.2X44X1.0
€ 4.00
92026
920261450
ref: 92026
SPACER
€ 14.50
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92150
921501838
ref: 92150
BOLT,STARTER MOTOR
€ 7.50
