HEADLIGHT(S)
KLX250J2 DTRACKER 1999 GREECE

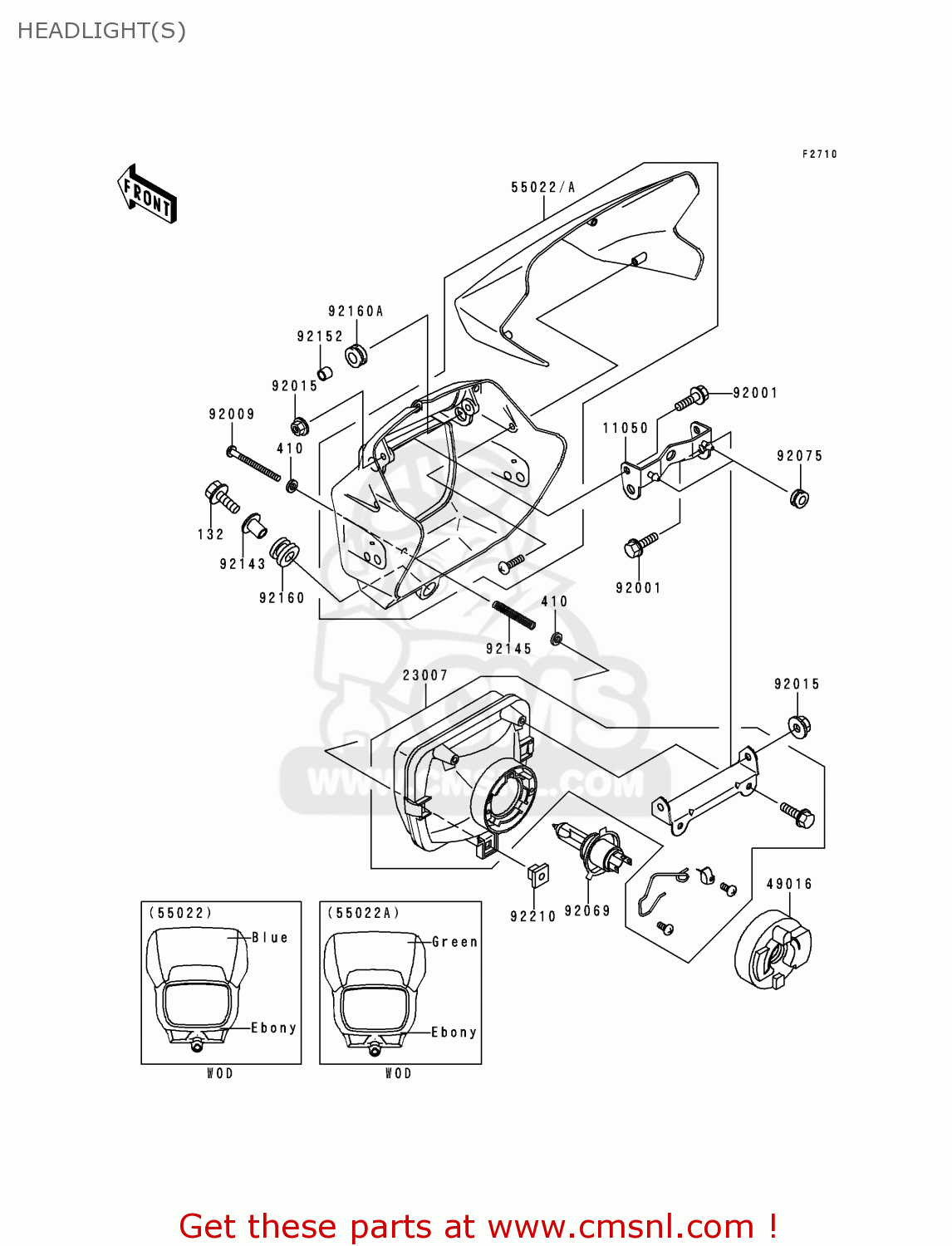

Headlight(s) diagram KLX250J2 DTRACKER 1999 GREECE
HEADLIGHT(S) KLX250J2 DTRACKER 1999 GREECE
×
prices are in EUR
ref
part #
description
quantity
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
410
410F0400
ref: 410
WASHER-PLANE-SMALL,4M
€ 0.50
11050
110501728
ref: 11050
BRACKET,HEAD LAMP
€ 29.00
23007
230071352
ref: 23007
LENS-COMP,HEAD LAMP
€ 104.00
49016
490161191
ref: 49016
COVER-SEAL
€ 11.00
55022
5502210806H
ref: 55022
COVER-HEAD LAMP,BLUE+
€ 80.50
55022A
5502210806J
ref: 55022A
COVER-HEAD LAMP,GREEN
€ 86.00
92001
920011568
ref: 92001
BOLT,6X22
€ 3.00
92009
920091807
ref: 92009
SCREW
€ 3.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
€ 3.00
92143
921431960
ref: 92143
COLLAR
€ 3.50
92145
921451100
ref: 92145
SPRING
€ 2.50
92152
921521072
ref: 92152
COLLAR
€ 7.50
92160
921601615
ref: 92160
DAMPER
€ 3.00
92160A
921601883
ref: 92160A
DAMPER
€ 2.50
92210
922101112
ref: 92210
NUT
€ 2.50
