CARBURETOR
KLX250J2 DTRACKER 1999 GREECE

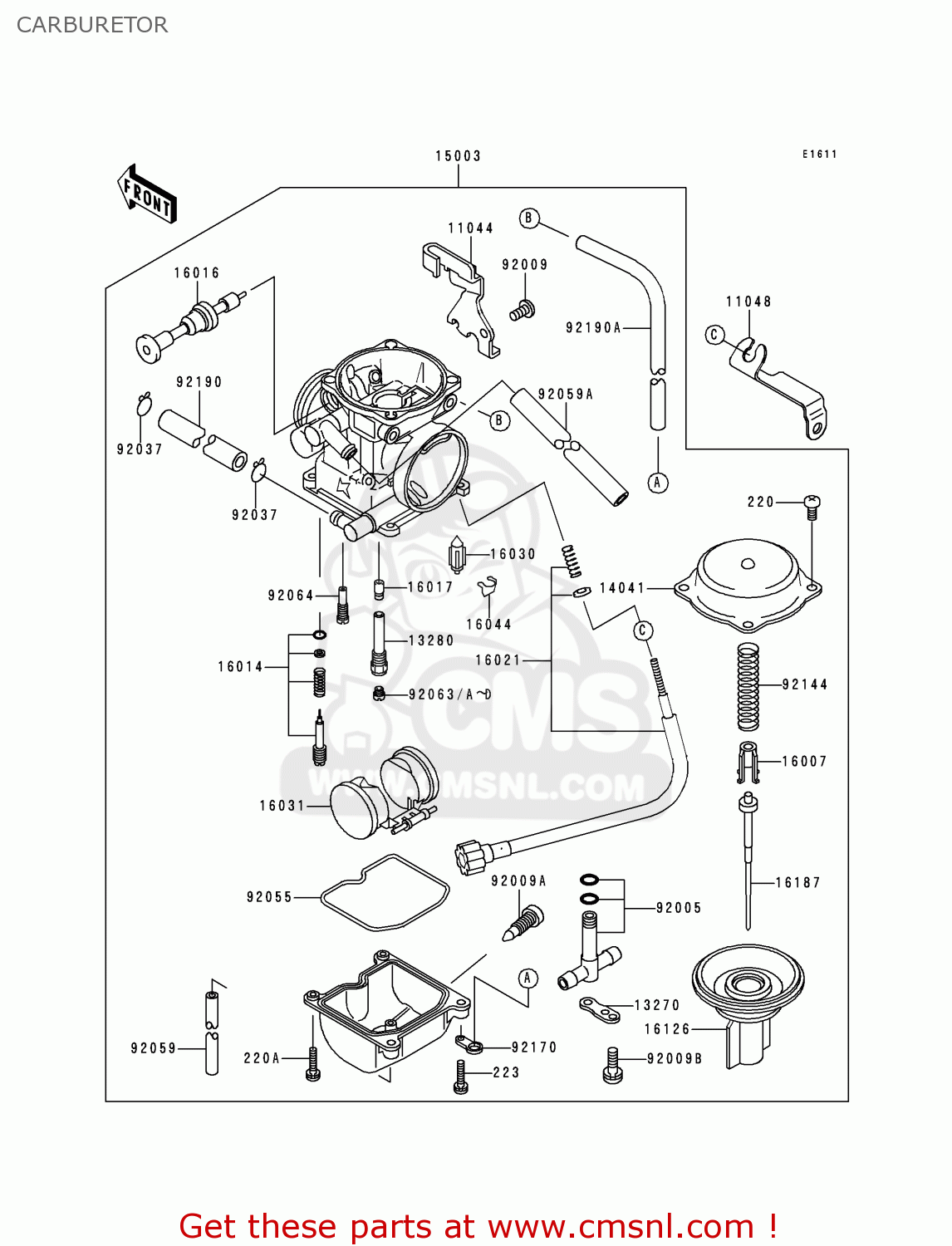

Carburetor diagram KLX250J2 DTRACKER 1999 GREECE
CARBURETOR KLX250J2 DTRACKER 1999 GREECE
×
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
11044
110441353
ref: 11044
BRACKET,THROTTLE CABL
€ 44.00
11048
110481818
ref: 11048
BRACKET
€ 4.00
13270
132701063
ref: 13270
PLATE,JOINT STAY
€ 21.00
13280
132801104
ref: 13280
HOLDER,NEEDLE JET
€ 19.00
14041
140411061
ref: 14041
COVER-COMP,MIXING CHA
€ 47.50
15003
150031447
ref: 15003
CARBURETOR-ASSY
€ 580.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16014
160141081
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161084
ref: 16016
PLUNGER,STARTER
€ 34.00
16017
160171010
ref: 16017
JET-NEEDLE
€ 31.50
16021
160211183
ref: 16021
SCREW-THROTTLE STOP
€ 85.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261339
ref: 16126
VALVE,VACUUM
€ 156.00
16187
161871066
ref: 16187
NEEDLE-JET,N5AV
€ 25.50
92005
920051290
ref: 92005
FITTING
€ 28.00
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92009B
920091704
ref: 92009B
SCREW
€ 2.50
92037
920371531
ref: 92037
CLAMP,TUBE
€ 3.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92059
920591110
ref: 92059
TUBE,3.5X6.5X330
€ 15.50
92059A
920591237
ref: 92059A
TUBE,L=350
€ 16.00
92063
920631010
ref: 92063
MAIN JET, #115
€ 9.50
92063A
920631069
ref: 92063A
MAIN JET,2ND #125
€ 9.50
92063B
920631071
ref: 92063B
JET-MAIN,#118
€ 9.50
92063C
920631072
ref: 92063C
MAIN JET 2ND #120
€ 9.50
92063D
920631073
ref: 92063D
MAIN JET,2ND #122
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92144
921441538
ref: 92144
SPRING,VACUUM VALVE
€ 15.50
92170
921701496
ref: 92170
CLAMP,TUBE
€ 9.50
92190
921901473
ref: 92190
TUBE 6.5X11.5X160
€ 5.50
92190A
921901560
ref: 92190A
TUBE,5X8X430
€ 15.00
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
