HANDLEBAR
KLX250J2 DTRACKER 1999 GREECE

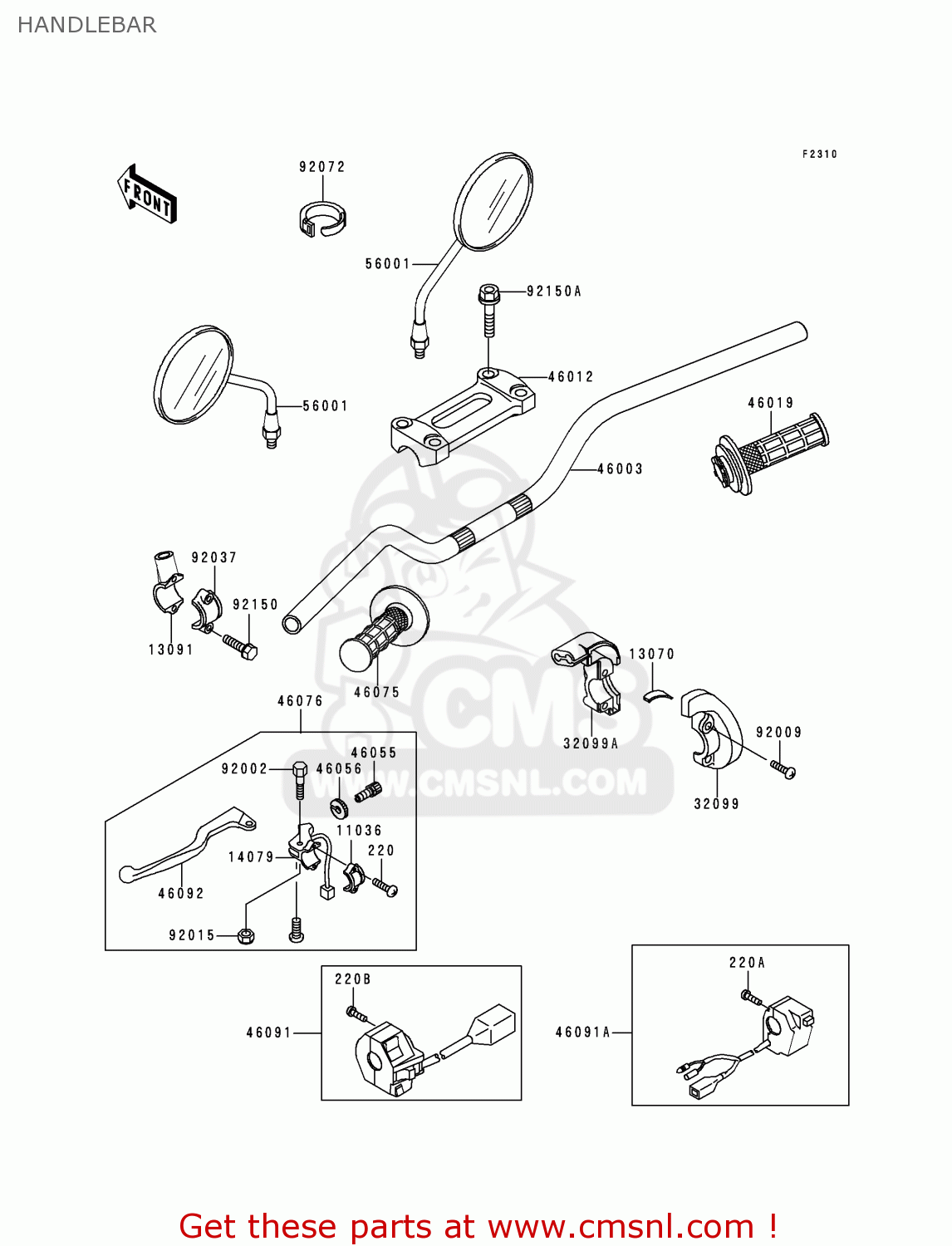

Handlebar diagram KLX250J2 DTRACKER 1999 GREECE
HANDLEBAR KLX250J2 DTRACKER 1999 GREECE
×
prices are in EUR
ref
part #
description
quantity
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
220A
220C0525
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220C0530
ref: 220B
SCREW-PAN-CROS
€ 0.50
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701274
ref: 13070
GUIDE,THROTTLE CABLE
€ 3.00
13091
130911717
ref: 13091
HOLDER,MIRROR
€ 29.50
14079
140791125
ref: 14079
HOLDER-ASSY,CLUTCH CA
€ 35.50
32099
320991146
ref: 32099
CASE,THROTTLE,UPP
€ 20.50
32099A
320991147
ref: 32099A
CASE,THROTTLE,LWR
€ 20.50
46003
460031502CE
ref: 46003
HANDLE,SILVER
€ 67.50
46012
460121190
ref: 46012
HOLDER-HANDLE,UPP
€ 47.00
46019
460191093
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46055
46055009
ref: 46055
SCREW,CABLE ASJUST
€ 13.00
46056
46056006
ref: 46056
NUT,CABLE ADJUST NUT
€ 6.00
46075
460751149
ref: 46075
GRIP,LH
€ 13.50
46076
460761218
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 61.50
46091
460911690
ref: 46091
HOUSING-ASSY-CONTROL,
€ 121.00
46091A
460911733
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 69.00
46092
460921159
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.00
56001
560011339
ref: 56001
MIRROR-ASSY
€ 29.00
92002
920021150
ref: 92002
BOLT,LEVER SET
€ 4.50
92009
920091699
ref: 92009
SCREW,5X16
€ 2.00
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92037
920371621
ref: 92037
CLAMP,LEVER HOLDER
€ 18.50
92072
920721293
ref: 92072
BAND
€ 6.50
92150
921501389
ref: 92150
BOLT,5X20
€ 3.00
92150A
921501455
ref: 92150A
BOLT,FLANGED,8X30
€ 4.50
