IGNITION SWITCH
KLX250E2 1994 EUROPE NL AR FG GR IT

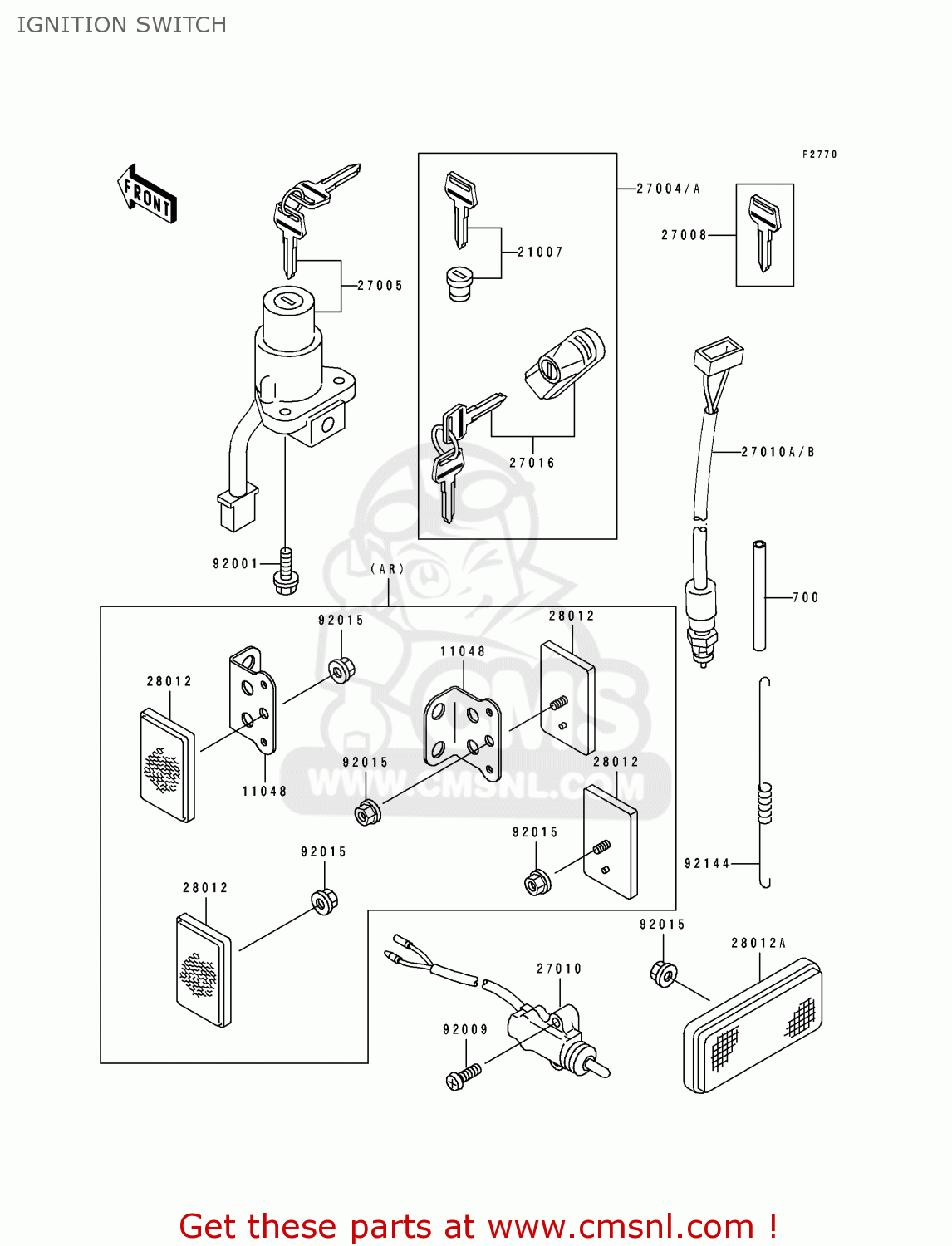

Ignition switch diagram KLX250E2 1994 EUROPE NL AR FG GR IT
IGNITION SWITCH KLX250E2 1994 EUROPE NL AR FG GR IT
×
prices are in EUR
ref
part #
description
quantity
700
700Q0665
ref: 700
TUBE VINYL, 6X400
€ 23.00
11048
110481279
ref: 11048
AR
BRACKET,REFLECTOR
€ 6.50
21007
210075023
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045447
ref: 27004
AREUFGGRNL
SWITCH-ASSY
€ 223.00
27004A
270045460
ref: 27004A
IT
SWITCH-ASSY
€ 146.00
27005
270051177
ref: 27005
SWITCH-ASSY-IGNITION
€ 145.00
27008
270081105
ref: 27008
KEY-LOCK,BLANK
€ 12.50
27010
270101264
ref: 27010
SWITCH,SIDE STAND
€ 23.00
27010A
270101326
ref: 27010A
SWITCH,BRAKE LAMP
€ 36.50
27016
270165110
ref: 27016
IT
LOCK ASSY HELMET
€ 73.50
27016
270165110
ref: 27016
AREUFGGRNL
LOCK ASSY HELMET
€ 73.50
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
€ 15.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
€ 16.00
92001
920011465
ref: 92001
BOLT
€ 3.00
92009
920091459
ref: 92009
SCREW
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
€ 2.50
92015
920151259
ref: 92015
EUFGGRITNL
NUT,FLANGED,5MM
€ 2.50
92144
921441753
ref: 92144
SPRING,BRAKE LAMP SWI
€ 4.00
