Genuine KLX Kawasaki Parts delivered quickly!


FOOTRESTS

KLX250E2 1994 EUROPE NL AR FG GR IT

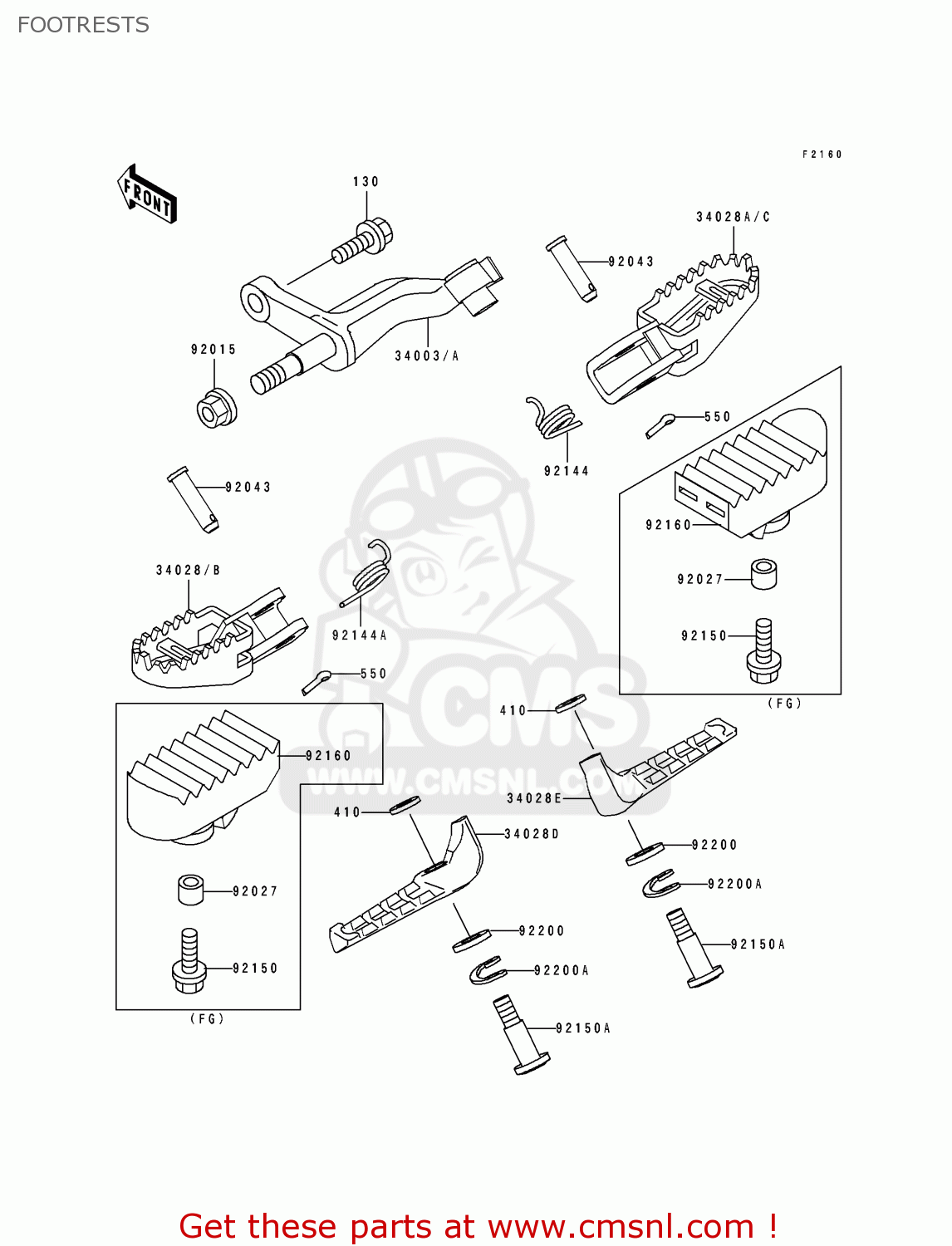

Footrests diagram KLX250E2 1994 EUROPE NL AR FG GR IT

FOOTRESTS KLX250E2 1994 EUROPE NL AR FG GR IT
FOOTRESTS KLX250E2 1994 EUROPE NL AR FG GR IT
FOOTRESTS KLX250E2 1994 EUROPE NL AR FG GR IT
prices are in EUR
ref
part #
description
quantity
130
130P1020
ref: 130
BOLT-FLANGED,10X20
130P1020
€ 1.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
550
550D2515
ref: 550
PIN COTTER,295X15
550D2515
€ 0.50
34003
340031401TY
ref: 34003
HOLDER-STEP,RH,VIOLET
340031401TY
€ 70.00
34003A
340031401VM
ref: 34003A
HOLDER-STEP,RH,S.RED
€ 55.50
34028
340281361
ref: 34028
AREUGRITNL
STEP,LH
340281361
€ 45.00
34028A
340281362
ref: 34028A
AREUGRITNL
STEP,RH
340281362
€ 45.00
34028B
340281370
ref: 34028B
FG
STEP,FR,LH
340281370
€ 45.00
34028C
340281371
ref: 34028C
FG
STEP,FR,RH
340281371
€ 45.00
34028D
340281376
ref: 34028D
STEP,RR,LH
340281376
€ 47.50
34028E
340281377
ref: 34028E
STEP,RR,RH
340281377
€ 47.50
92015
920151502
ref: 92015
NUT,FLANGED,10MM
920151502
€ 7.00
92027
92027162
ref: 92027
FG
COLLAR-REAR FENDER
92027162
€ 4.50
92043
92043115
ref: 92043
PIN,FOOTREST BAR FIT
92043115
€ 6.50
92144
921441685
ref: 92144
SPRING,STEP RETURN,RH
921441685
€ 5.00
92144A
921441749
ref: 92144A
SPRING,STEP RETURN,LH
921441749
€ 3.50
92150
921501339
ref: 92150
FG
BOLT,6X20
€ 2.50
92150A
921501584
ref: 92150A
BOLT,SOCKET,8X34
921501584
€ 5.50
92160
921601401
ref: 92160
FG
DAMPER,STEP
921601401
€ 8.00
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
922001042
€ 2.50
92200A
922001133
ref: 92200A
WASHER,SPRING
€ 7.00
