FRONT FORK
KLX250E2 1994 EUROPE NL AR FG GR IT

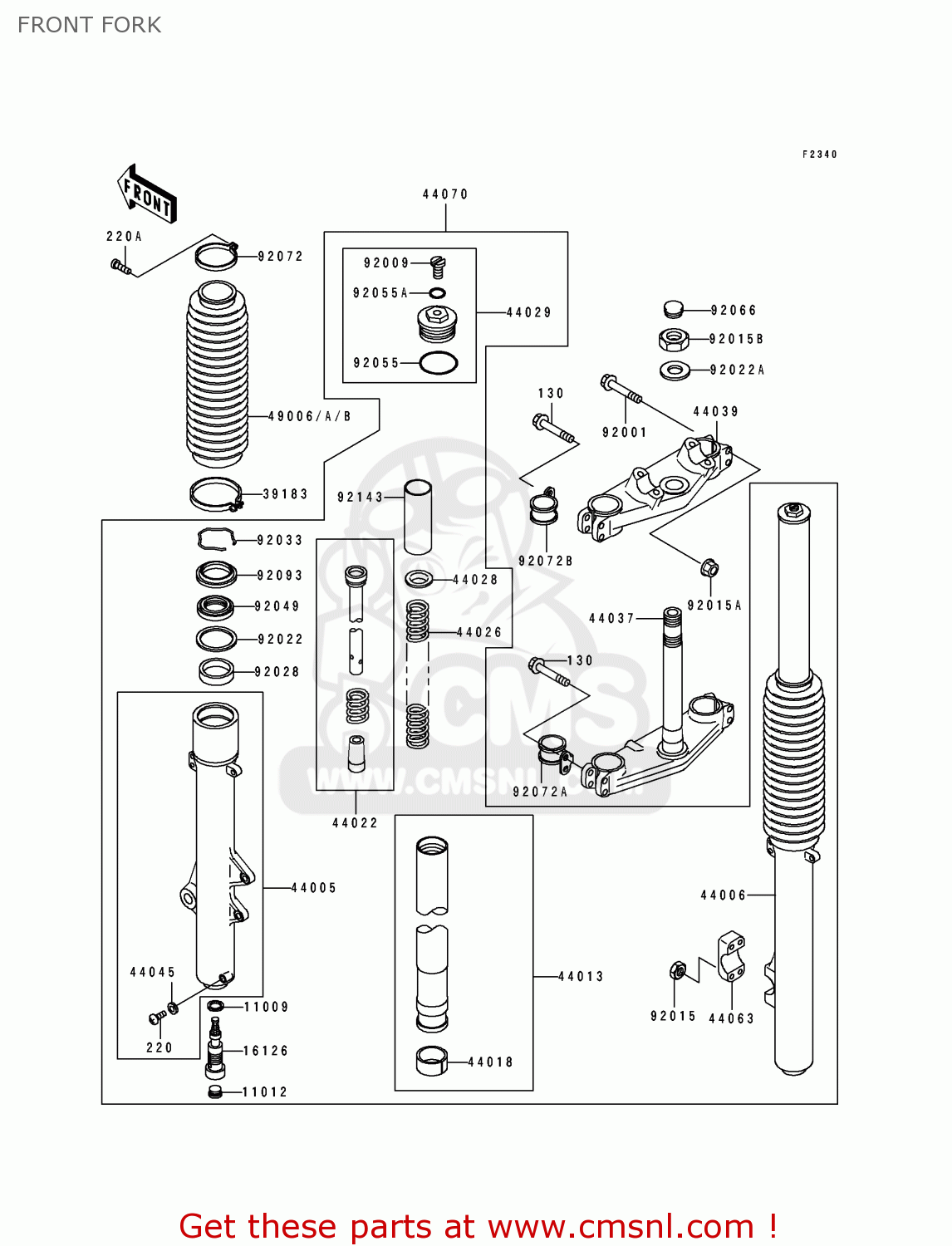

Front fork diagram KLX250E2 1994 EUROPE NL AR FG GR IT
FRONT FORK KLX250E2 1994 EUROPE NL AR FG GR IT
×
prices are in EUR
ref
part #
description
quantity
11009
110091324
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 3.50
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
16126
161261134
ref: 16126
VALVE,FORK CYLINDER
€ 121.50
39183
391831051
ref: 39183
BAND-ASSY,BOOT
€ 7.00
44005
440051325
ref: 44005
PIPE-LEFT FORK OUTER
€ 264.50
44006
440061323
ref: 44006
PIPE-RIGHT FORK OUTER
€ 291.00
44013
440131300
ref: 44013
PIPE-FORK INNER
€ 320.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221290
ref: 44022
CYLINDER-FORK
€ 124.50
44026
440261539
ref: 44026
SPRING-FRONT FORK,K=0
€ 33.50
44028
440281010
ref: 44028
GUIDE-FORK SPRING
€ 7.00
44029
440291137
ref: 44029
SEAT-FORK SPRING
€ 39.00
44037
440371317
ref: 44037
HOLDER-FORK UNDER
€ 234.00
44039
440391244
ref: 44039
HOLDER-FORK UPPER
€ 198.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
€ 41.50
44070
440705054
ref: 44070
DAMPER-ASSY,FORK
€ 842.50
49006A
490061184VW
ref: 49006A
BOOT,FORK,VIOLET
€ 48.50
49006B
490061184VY
ref: 49006B
BOOT,FORK,VIOLET
€ 54.50
92001
920011639
ref: 92001
BOLT
€ 4.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151485
ref: 92015A
NUT,FLANGED,8MM
€ 3.50
92015B
920151653
ref: 92015B
NUT,STEERING STEM,22M
€ 11.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281581
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491295
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.50
92055
920551123
ref: 92055
RING-O
€ 4.00
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220C0416
ref: 220A
SCREW-PAN-CROS
€ 1.00
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92066
920661306
ref: 92066
PLUG
€ 3.50
92072
920721078
ref: 92072
BAND,BOOT
€ 7.00
92072A
920721205
ref: 92072A
BAND,CABLE
€ 12.50
92072B
920721283
ref: 92072B
BAND
€ 18.50
92093
920931086
ref: 92093
SEAL,FORK DUST
€ 12.50
92143
921431645
ref: 92143
COLLAR,FORK,L=90
€ 16.00
