CHASSIS ELECTRICAL EQUIPMENT

KLX250E2 1994 EUROPE NL AR FG GR IT

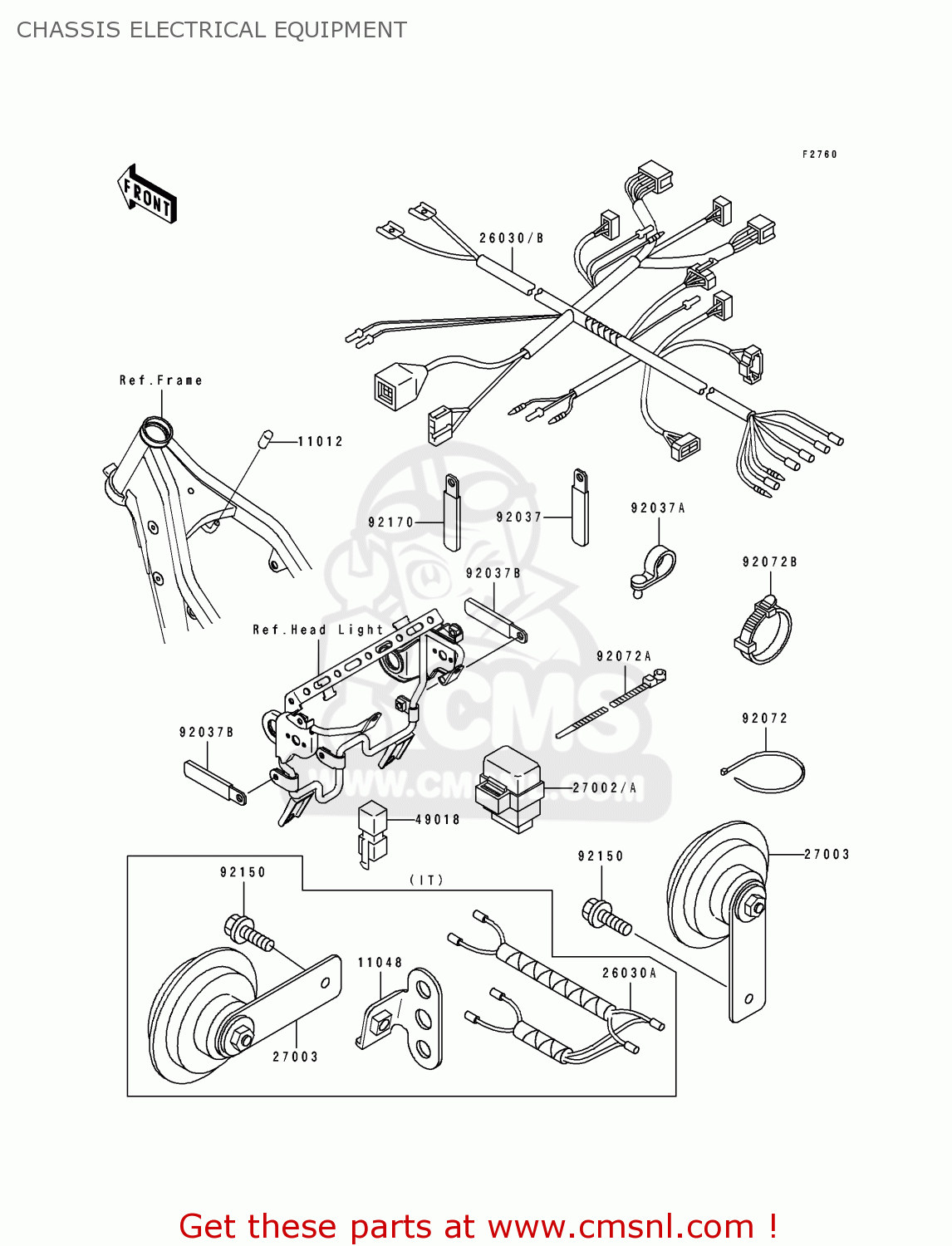

Chassis electrical equipment diagram KLX250E2 1994 EUROPE NL AR FG GR IT

CHASSIS ELECTRICAL EQUIPMENT KLX250E2 1994 EUROPE NL AR FG GR IT
CHASSIS ELECTRICAL EQUIPMENT KLX250E2 1994 EUROPE NL AR FG GR IT
CHASSIS ELECTRICAL EQUIPMENT KLX250E2 1994 EUROPE NL AR FG GR IT
prices are in EUR
ref
part #
description
quantity
11012
110121589
ref: 11012
CAP,BUNGEE CORD HOOK
110121589
€ 5.00
11048
110481314
ref: 11048
IT
BRACKET,HORN
€ 6.50
26030
260301187
ref: 26030
AREUGRITNL
HARNESS,MAIN
€ 244.00
26030A
260301213
ref: 26030A
IT
HARNESS,HORN
€ 17.00
26030B
260301223
ref: 26030B
FG
HARNESS,MAIN
€ 186.00
27002
270021060
ref: 27002
FG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27002A
270021075
ref: 27002A
AREUGRITNL
RELAY-ASSY,SIGNAL LAM
270021075
€ 55.00
27003
270031367
ref: 27003
IT
HORN
€ 61.50
27003
270031367
ref: 27003
AREUFGGRNL
HORN
€ 61.50
49018
490181058
ref: 49018
DIODE
490181058
€ 27.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371993
ref: 92037B
CLAMP
920371993
€ 3.50
92072
920721237
ref: 92072
BAND,L=250
920721237
€ 2.00
92072A
920721288
ref: 92072A
BAND,L=215
€ 6.00
92072B
920721293
ref: 92072B
BAND
920721293
€ 6.50
92150
921501340
ref: 92150
IT
BOLT,6X14
921501340
€ 3.00
92150
921501340
ref: 92150
AREUFGGRNL
BOLT,6X14
921501340
€ 3.00
92170
921701114
ref: 92170
CLAMP
921701114
€ 5.00
