REAR SUSPENSION
KLX250D2 KLXR 1994 USA

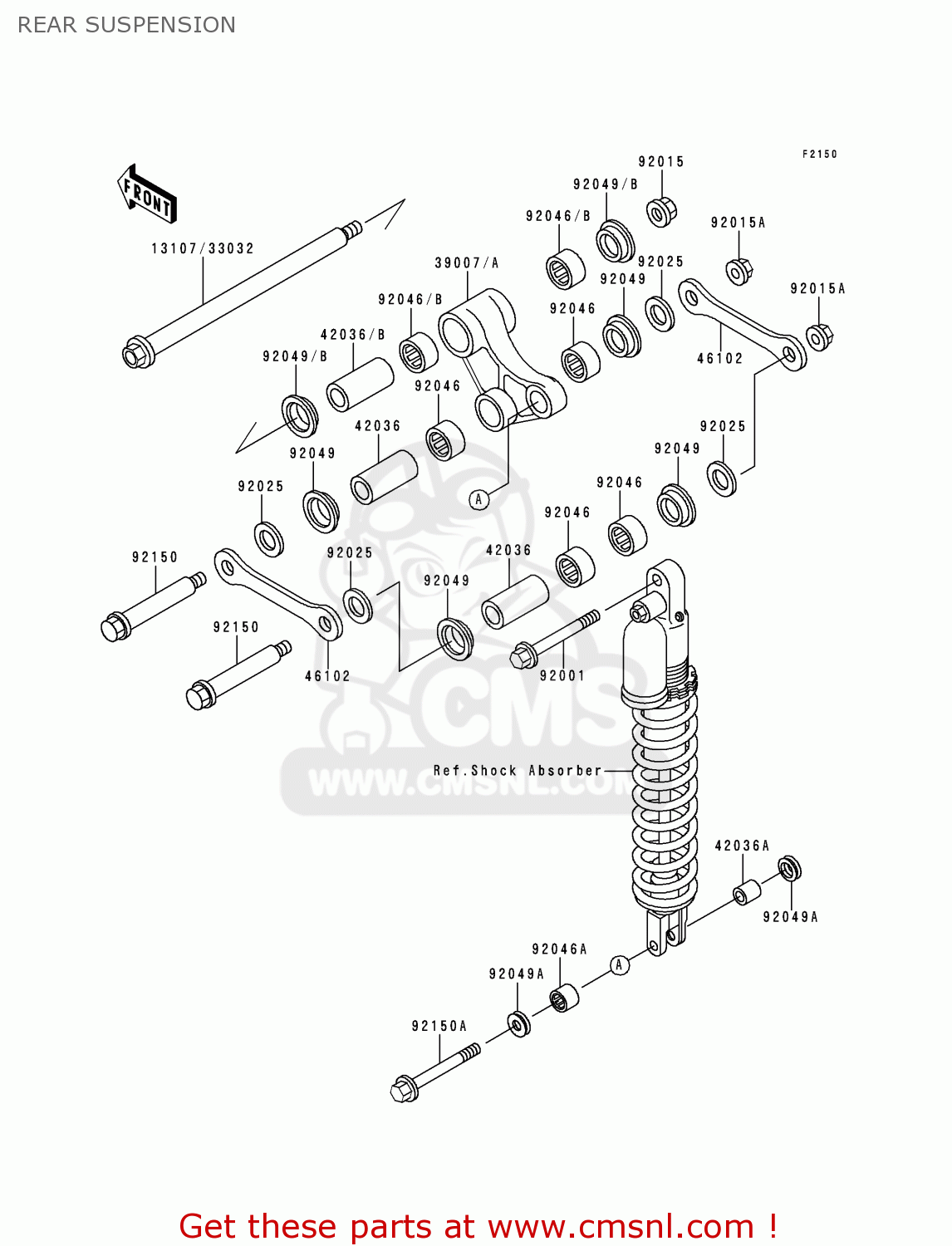

Rear suspension diagram KLX250D2 KLXR 1994 USA
REAR SUSPENSION KLX250D2 KLXR 1994 USA
×
prices are in EUR
ref
part #
description
quantity
33032
330321137
ref: 33032
SHAFT-SWING ARM
€ 43.00
39007
390071218
ref: 39007
ARM-SUSP,UNI TRAK
€ 191.00
42036
420361245
ref: 42036
SLEEVE,15X22X57
€ 14.50
42036A
420361248
ref: 42036A
SLEEVE,10X16X19
€ 6.50
46102
461021350
ref: 46102
ROD,SUSPENSION
€ 43.00
92001
920011499
ref: 92001
BOLT,10X44
€ 3.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92015A
920151433
ref: 92015A
NUT,12MM
€ 6.00
92025
920251135
ref: 92025
SHIM,15.3X27.5X0.6
€ 3.50
92046
920461162
ref: 92046
BEARING-NEEDLE,F-2220
€ 20.50
92046A
920461192
ref: 92046A
BEARING-NEEDLE,16BM22
€ 19.50
92049
920491254
ref: 92049
SEAL-OIL,MHA22 28 5.7
€ 6.50
92049A
920491330
ref: 92049A
SEAL-OIL
€ 9.00
92150
921501337
ref: 92150
BOLT
€ 18.00
92150A
921501711
ref: 92150A
BOLT
€ 8.50
