FOOTRESTS

KLX250D2 KLXR 1994 USA

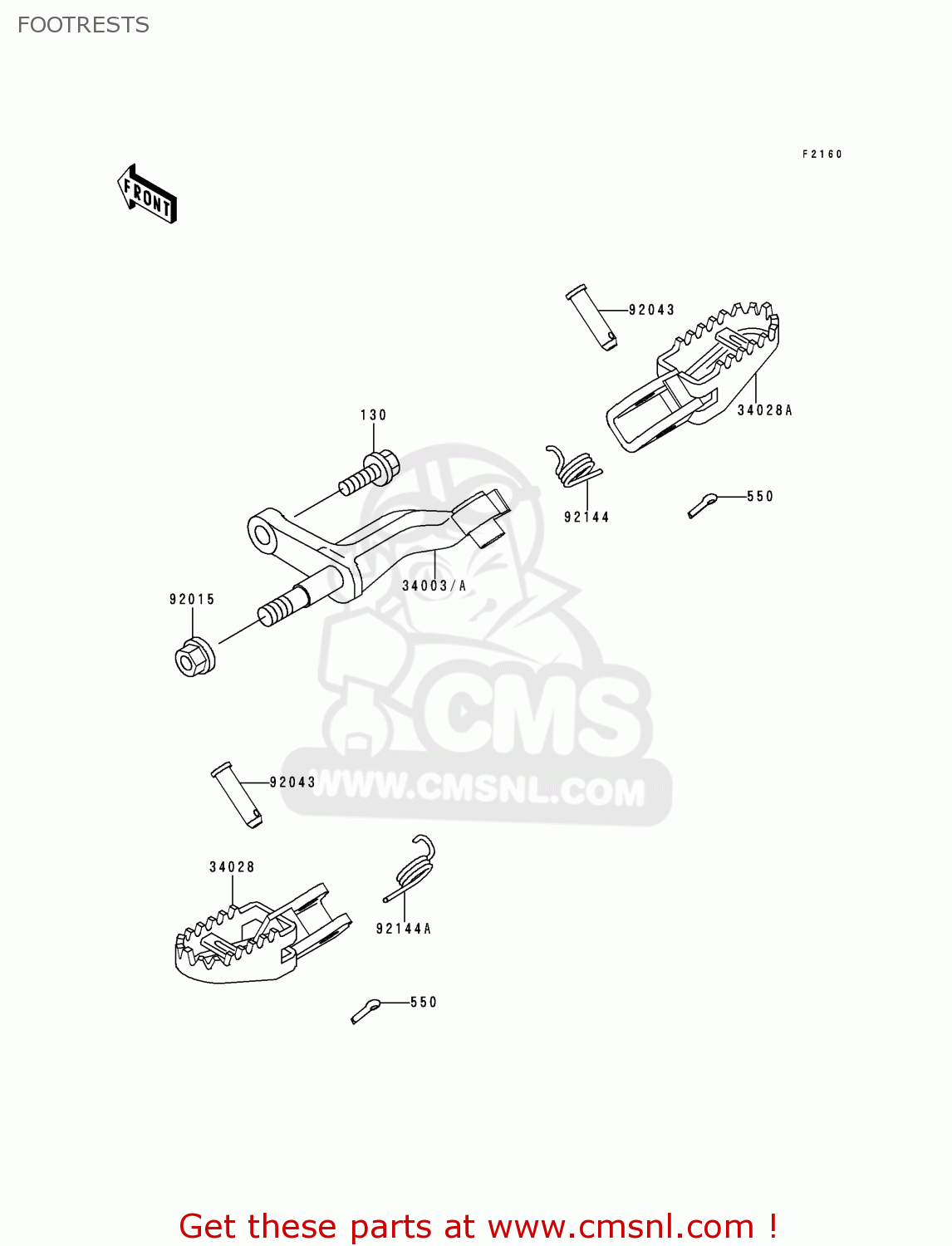

Footrests diagram KLX250D2 KLXR 1994 USA

FOOTRESTS KLX250D2 KLXR 1994 USA

FOOTRESTS KLX250D2 KLXR 1994 USA

prices are in EUR

ref

part #

description

quantity

130

130P1020
ref: 130

BOLT-FLANGED,10X20

€ 1.50

550

550D2515
ref: 550

PIN COTTER,295X15

€ 0.50

34003

340031401TY
ref: 34003

HOLDER-STEP,RH,VIOLET

€ 70.00

34028

340281361
ref: 34028

STEP,LH

€ 45.00

34028A

340281362
ref: 34028A

STEP,RH

€ 45.00

92015

920151502
ref: 92015

NUT,FLANGED,10MM

€ 7.00

92043

92043115
ref: 92043

PIN,FOOTREST BAR FIT

€ 6.50

92144

921441685
ref: 92144

SPRING,STEP RETURN,RH

€ 5.00

92144A

921441749
ref: 92144A

SPRING,STEP RETURN,LH

€ 3.50
