REAR MASTER CYLINDER
KLX250D2 KLXR 1994 USA

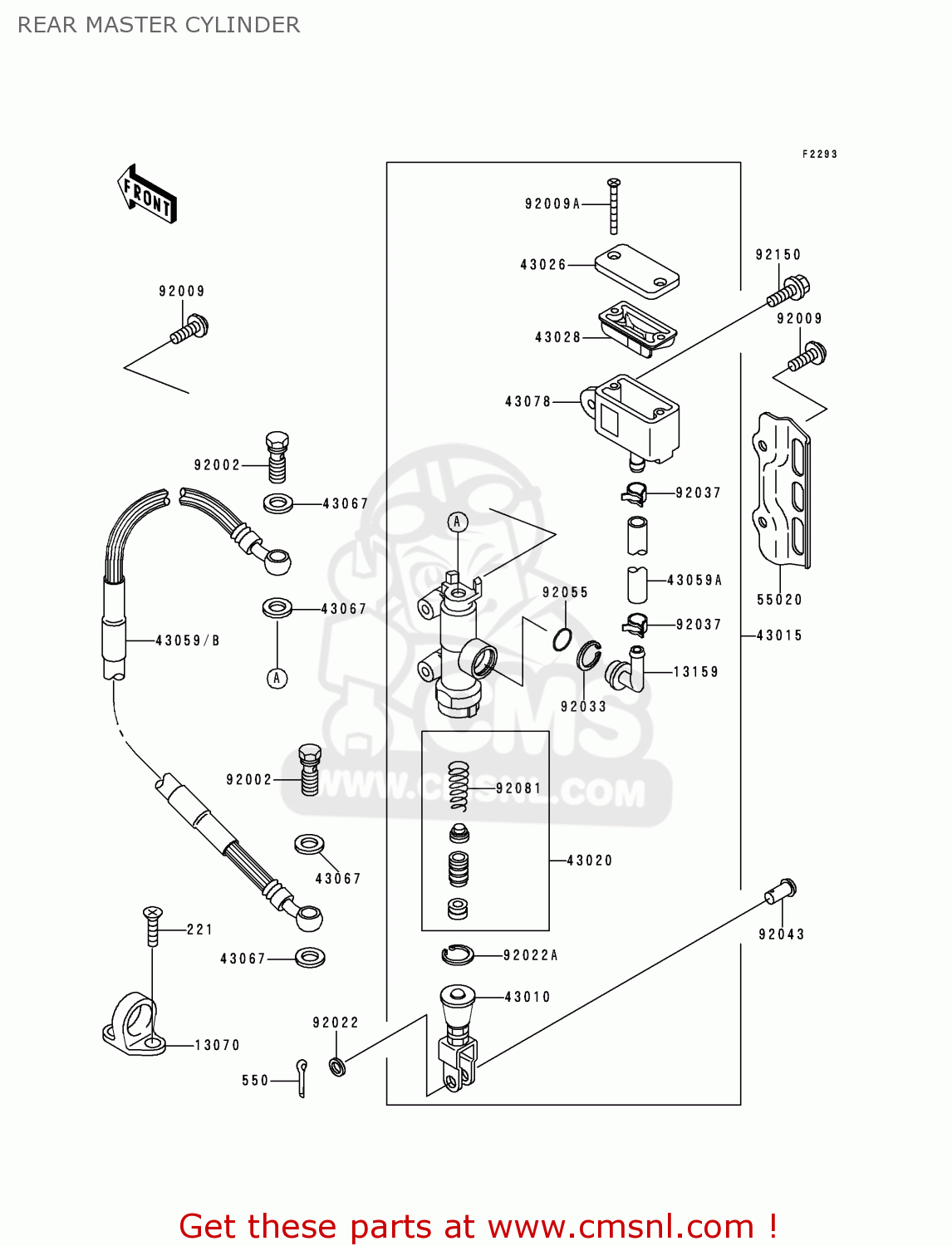

Rear master cylinder diagram KLX250D2 KLXR 1994 USA
REAR MASTER CYLINDER KLX250D2 KLXR 1994 USA
×
prices are in EUR
ref
part #
description
quantity
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
13070
130701144
ref: 13070
GUIDE,HOSE
€ 5.50
13159
131591056
ref: 13159
CONNECTOR
€ 9.50
43010
430101068
ref: 43010
ROD-ASSY-BRAKE
€ 38.50
43015
430151529
ref: 43015
CYLINDER-ASSY-MASTER,
€ 157.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261075
ref: 43026
CAP-BRAKE
€ 9.50
43028
430281067
ref: 43028
DIAPHRAGM
€ 12.50
43059
430591740
ref: 43059
HOSE-BRAKE,RR
€ 68.50
43059A
430591767
ref: 43059A
HOSE-BRAKE,RR MASTER
€ 12.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
43078
430781122
ref: 43078
RESERVOIR
€ 21.00
55020
550201489
ref: 55020
GUARD,RR BRAKE RESERV
€ 11.00
92002
920021888
ref: 92002
BOLT,OIL,L=23
€ 3.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92009A
920091596
ref: 92009A
SCREW
€ 2.00
92022
920221028
ref: 92022
WASHER,8.5X13X1
€ 2.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
920371710
ref: 92037
CLAMP
€ 6.50
92043
920431039
ref: 92043
PIN
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92081
920811737
ref: 92081
SPRING
€ 8.50
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
