FRAME

KLX250D2 KLXR 1994 USA

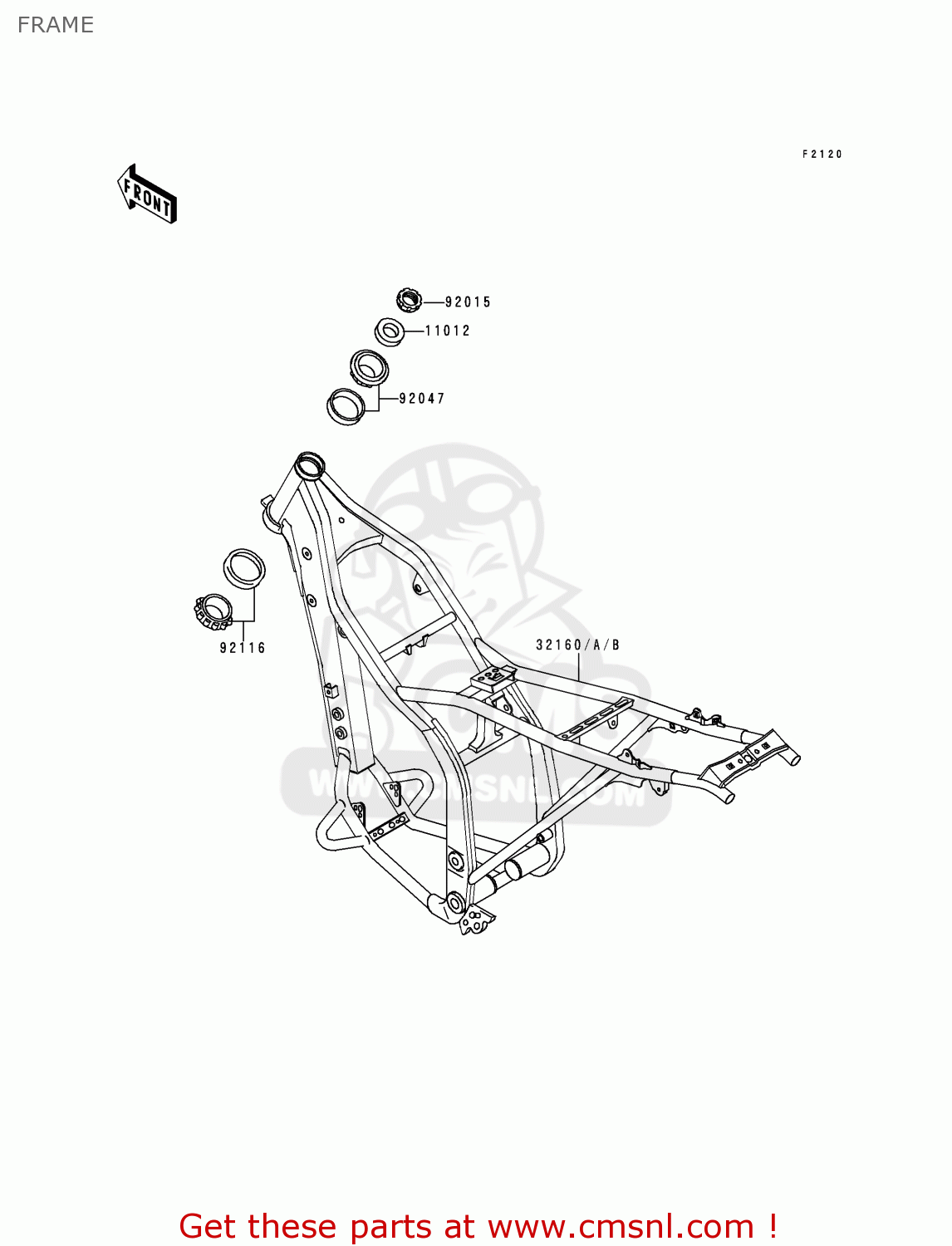

Frame diagram KLX250D2 KLXR 1994 USA

FRAME KLX250D2 KLXR 1994 USA
FRAME KLX250D2 KLXR 1994 USA
FRAME KLX250D2 KLXR 1994 USA
prices are in EUR
ref
part #
description
quantity
11012
110121762
ref: 11012
CAP,STEERING STEM
110121762
€ 4.00
32160
321601366TY
ref: 32160
FRAME-COMP,VIOLET
€ 972.00
92015
920151546
ref: 92015
NUT,25MM,T=12
920151546
€ 14.50
92047
92047017
ref: 92047
CONE,STRNG,STEM
92047017
€ 49.50
92116
921161069
ref: 92116
BEARING-ROLLER
921161069
€ 69.50
