TRANSMISSION (A2-A4)

KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA

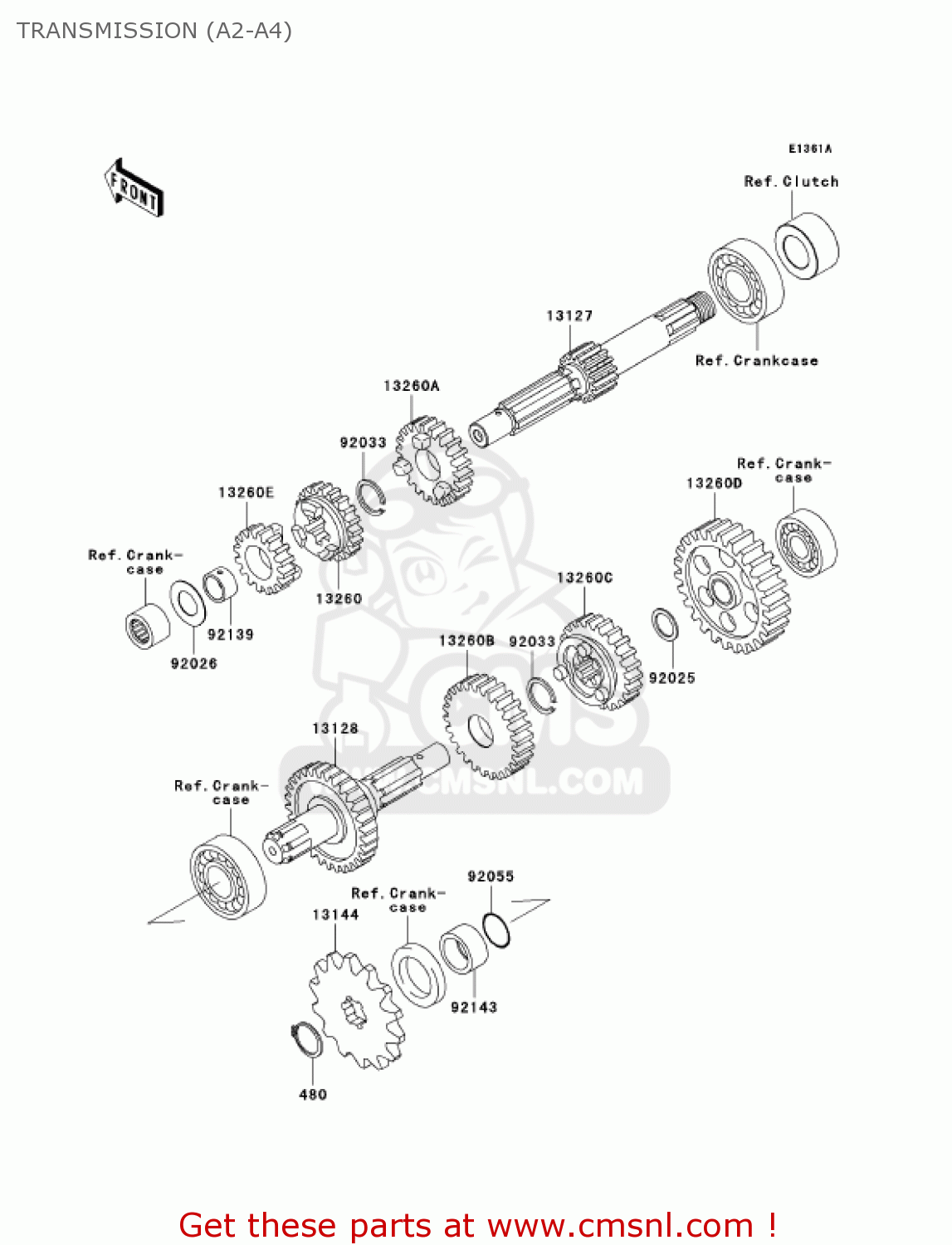

Transmission (a2-a4) diagram KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J1700
ref: 480

CIRCLIP-TYPE-C,17MM

€ 0.50

13127

131271280
ref: 13127

SHAFT-TRANSMISSION IN

€ 108.50

13128

131281244
ref: 13128

SHAFT-TRANSMISSION OU

€ 113.50

13144

131441044
ref: 13144

SPROCKET-OUTPUT,14T

€ 9.50

13260

132601857
ref: 13260

GEAR,INPUT 3RD,20T

€ 45.50

13260A

132601858
ref: 13260A

GEAR,INPUT TOP,23T

€ 52.00

13260B

132601860
ref: 13260B

GEAR,OUTPUT 3RD,27T

€ 45.50

13260C

132601861
ref: 13260C

GEAR,OUTPUT TOP,25T

€ 52.00

13260D

132601862
ref: 13260D

GEAR,OUTPUT LOW,36T

€ 59.00

13260E

132601986
ref: 13260E

GEAR-TRANSMISSION SPU

€ 34.00

92025

920251280
ref: 92025

SHIM

€ 2.00

92026

920261091
ref: 92026

SPACER

€ 2.50

92033

920331060
ref: 92033

RING,SNAP

€ 2.50

92055

920551235
ref: 92055

RING-O,16.8MM

€ 3.50

92139

921391102
ref: 92139

BUSHING

€ 9.00

92143

921431680
ref: 92143

COLLAR,SPROCKET

€ 9.50
