GEAR CHANGE MECHANISM

KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA

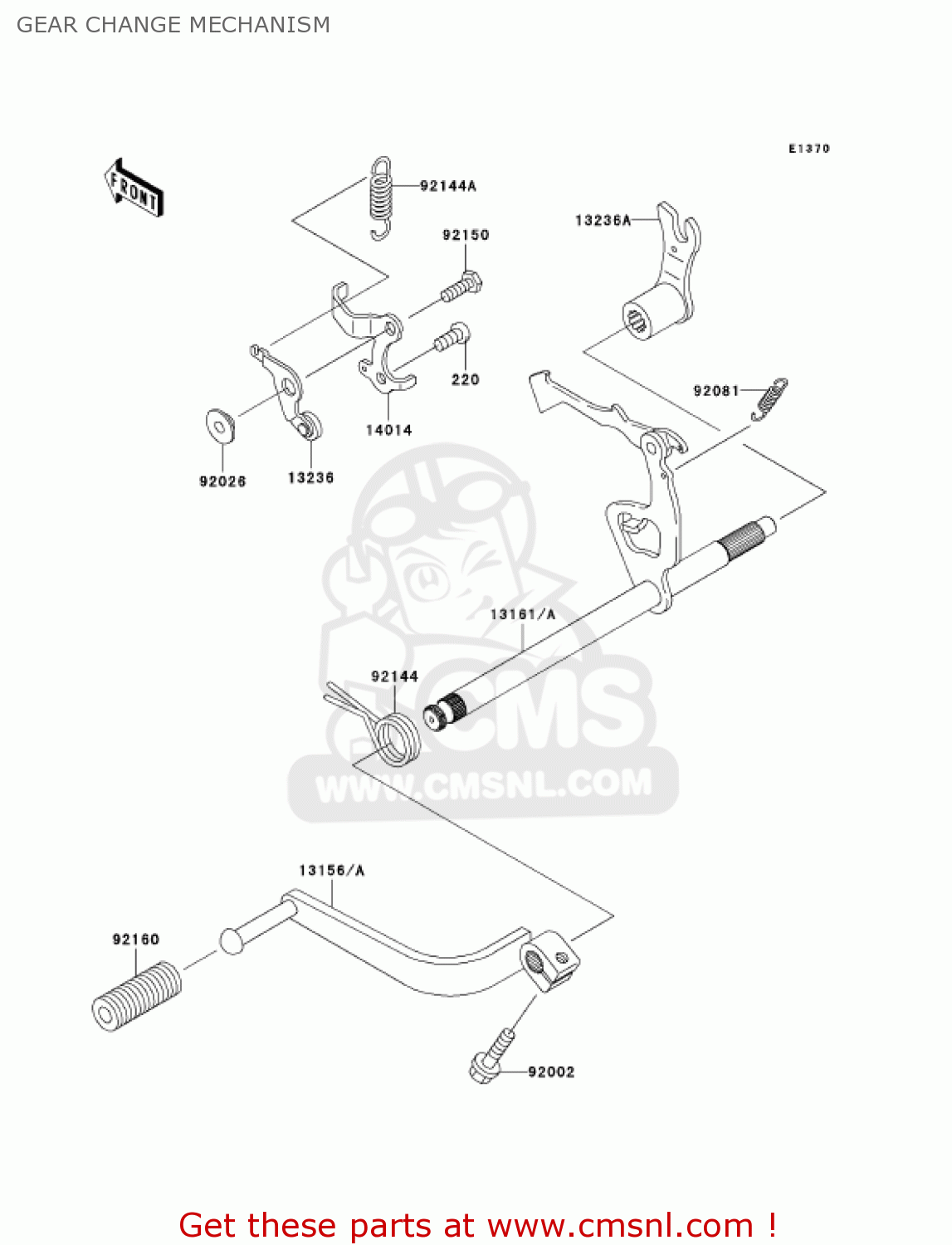

Gear change mechanism diagram KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

13156

131560039
ref: 13156

LEVER-CHANGE,PEDAL

€ 52.50

13161A

131610019
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 69.50

13236

132361256
ref: 13236

LEVER-COMP,POSITION

€ 6.00

13236A

132361288
ref: 13236A

LEVER-COMP

€ 5.50

14014

140141118
ref: 14014

PLATE-POSITION

€ 9.00

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92026

920261217
ref: 92026

SPACER

€ 3.50

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92144

921441107
ref: 92144

SPRING, CHANGE SHAFT

€ 6.00

92144A

921441590
ref: 92144A

SPRING

€ 3.00

92150

921501626
ref: 92150

BOLT,6X14

€ 3.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50

GEAR CHANGE MECHANISM
