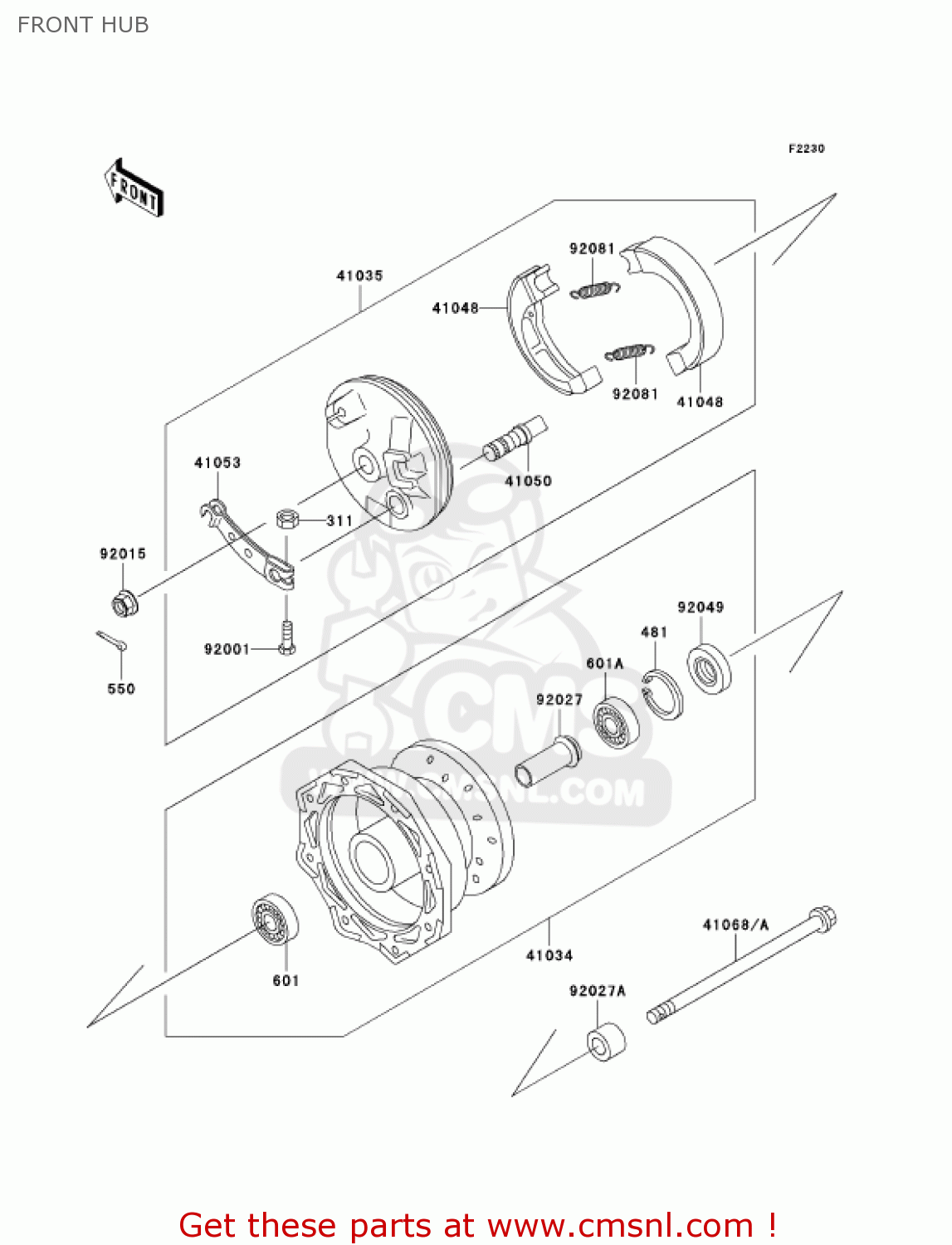

FRONT HUB

ref

part #

description

quantity

311

311G0500
ref: 311

NUT-HEX

€ 2.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

550

550S2520
ref: 550

PIN-COTTER,2.5X20

€ 1.50

601

601B6200UU
ref: 601

BEARING-BALL,#6200UUC

€ 18.00

601A

601B6300UU
ref: 601A

BEARING-BALL,#6300UUC

€ 23.50

41034

410341343
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 225.50

41035

410351543
ref: 41035

PANEL-ASSY-BRAKE,FR

€ 170.00

41048

410481083
ref: 41048

SHOE-BRAKE (NAS)

€ 13.00

41050

410501031
ref: 41050

CAM-BRAKE

€ 17.50

41053

410531027
ref: 41053

LEVER-BRAKE CAM,FR

€ 40.00

41068

410680015
ref: 41068

AXLE,FR

€ 21.00

92001

920011695
ref: 92001

BOLT,5X25

€ 3.00

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92027

920271470
ref: 92027

COLLAR,FRONT DRUM,L=5

€ 9.50

92027A

920271472
ref: 92027A

COLLAR,FRONT AXLE,L=1

€ 9.50

92049

920491095
ref: 92049

SEAL-OIL,DD20357

€ 11.00

92081

920811564
ref: 92081

SPRING,BRAKE SHOE

€ 3.50
