Genuine KLX Kawasaki Parts delivered quickly!


CLUTCH (A2-A4)

KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA

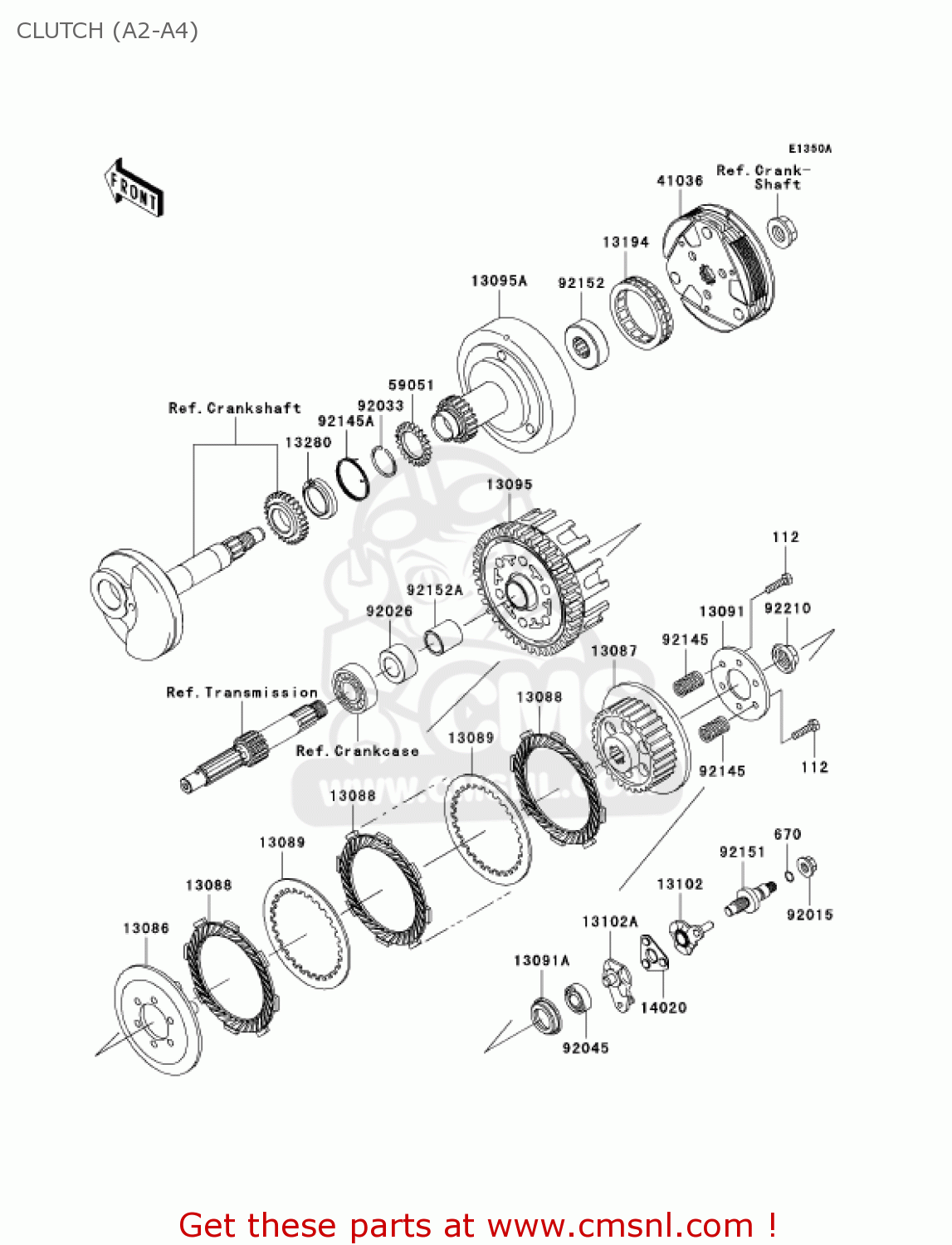

Clutch (a2-a4) diagram KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA

CLUTCH (A2-A4) KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA
CLUTCH (A2-A4) KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA
CLUTCH (A2-A4) KLX110-A4 KLX110 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
112
112G0520
ref: 112
BOLT-UPSET
112G0520
€ 2.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
13086
130861065
ref: 13086
WHEEL-CLUTCH
130861065
€ 23.00
13087
130871151
ref: 13087
HUB-CLUTCH
130871151
€ 35.00
13088
130881142
ref: 13088
PLATE-FRICTION (NAS)
130881142
€ 14.50
13089
130891087
ref: 13089
PLATE CLUTCH
130891087
€ 8.50
13091
130911782
ref: 13091
HOLDER,CLUTCH
€ 5.50
13091A
130911787
ref: 13091A
HOLDER
€ 9.00
13095
130951403
ref: 13095
HOUSING-COMP-CLUTCH
130951403
€ 111.00
13095A
130951422
ref: 13095A
HOUSING-COMP-CLUTCH
130951422
€ 106.00
13102
131021135
ref: 13102
RELEASE-COMP-CLUTCH
131021135
€ 42.00
13102A
131021136
ref: 13102A
RELEASE-COMP-CLUTCH
131021136
€ 42.00
13194
131941103
ref: 13194
CLUTCH-ONEWAY
131941103
€ 80.50
13280
132801250
ref: 13280
HOLDER,CLUTCH
132801250
€ 1.00
14020
140201100
ref: 14020
RETAINER
140201100
€ 14.00
41036
410361364
ref: 41036
HUB-ASSY,CLUTCH
410361364
€ 160.50
59051
590511403
ref: 59051
GEAR-SPUR,CLUTCH,22T
590511403
€ 5.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92026
920261605
ref: 92026
SPACER
920261605
€ 3.50
92033
920331065
ref: 92033
RING-SNAP,23.5MM
920331065
€ 2.50
92045
920451123
ref: 92045
BEARING-BALL,#628
920451123
€ 23.50
92145
921451456
ref: 92145
SPRING,CLUTCH HUB
921451456
€ 1.50
92145A
921451457
ref: 92145A
SPRING,CLUTCH HOLDER
921451457
€ 1.00
92151
921511069
ref: 92151
BOLT,CLUTCH RELEASE
€ 10.50
92152
921521370
ref: 92152
COLLAR,19X39.9X13
921521370
€ 8.50
92152A
921521371
ref: 92152A
COLLAR
€ 12.50
92210
922101374
ref: 92210
NUT,14MM
€ 7.00
