KICKSTARTER MECHANISM (A2-A4)

KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

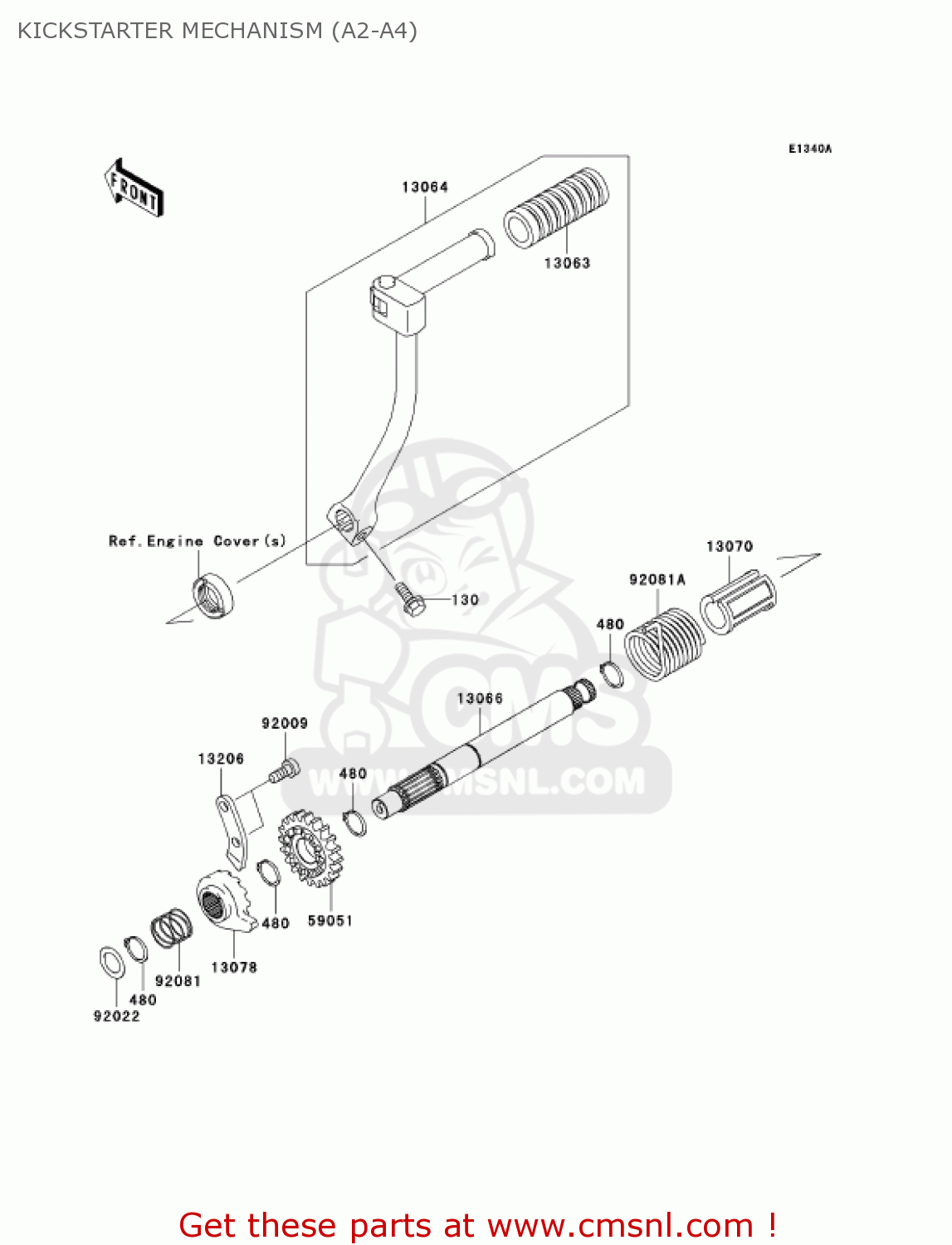

Kickstarter mechanism (a2-a4) diagram KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

KICKSTARTER MECHANISM (A2-A4) KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA
KICKSTARTER MECHANISM (A2-A4) KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA
KICKSTARTER MECHANISM (A2-A4) KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130P0622
ref: 130
BOLT-FLANGED
€ 1.50
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
480J1600
€ 2.50
13063
13063002
ref: 13063
RUBBER-KICK PEDAL
13063002
€ 3.00
13064
130641211
ref: 13064
LEVER-ASSY-KICK
€ 120.00
13066
130661108
ref: 13066
SHAFT-KICK
130661108
€ 41.00
13070
130701035
ref: 13070
GUIDE,KICK SHAFT
130701035
€ 5.50
13078
130781069
ref: 13078
RATCHET
130781069
€ 21.00
13206
132061006
ref: 13206
GUIDE-KICK
132061006
€ 5.50
59051
590511404
ref: 59051
GEAR-SPUR,KICK STARTE
590511404
€ 34.50
92009
920091104
ref: 92009
SCREW,TAPPING
920091104
€ 2.50
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
920221224
€ 2.50
92081
92081122
ref: 92081
SPRING,RATCHET
92081122
€ 6.00
92081A
920811276
ref: 92081A
SPRING,KICK STARTER
920811276
€ 9.00
