CRANKSHAFT (A2-A4)

KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

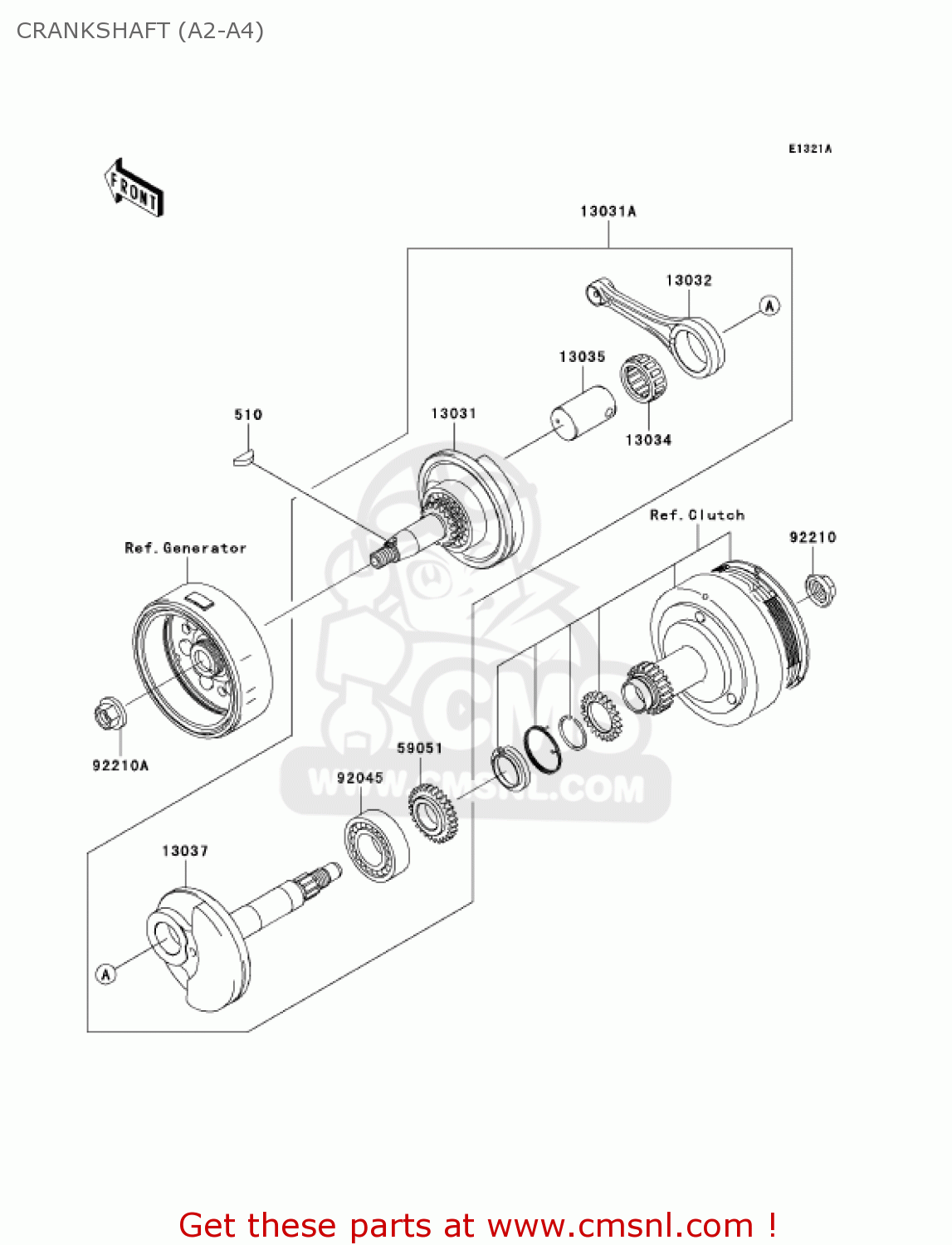

Crankshaft (a2-a4) diagram KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

13031

130310001
ref: 13031

CRANKSHAFT-COMP

€ 99.50

13031A

130310010
ref: 13031A

CRANKSHAFT-COMP

€ 251.00

13032

130321277
ref: 13032

ROD-CONNECTING,NG

€ 52.00

13034

130341113
ref: 13034

BEARING-BIG END,B4

€ 28.50

13035

130351092
ref: 13035

PIN-CRANK

€ 22.00

13037

130371647
ref: 13037

CRANKSHAFT,RH

€ 98.00

59051

590511402
ref: 59051

GEAR-SPUR

€ 9.50

92045

920451293
ref: 92045

BEARING-BALL,TMB205CJ

€ 35.00

92210

922101374
ref: 92210

NUT,14MM

€ 7.00

92210A

922101375
ref: 92210A

NUT,FLANGED,12MM

€ 1.50
