BRAKE PEDAL

KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

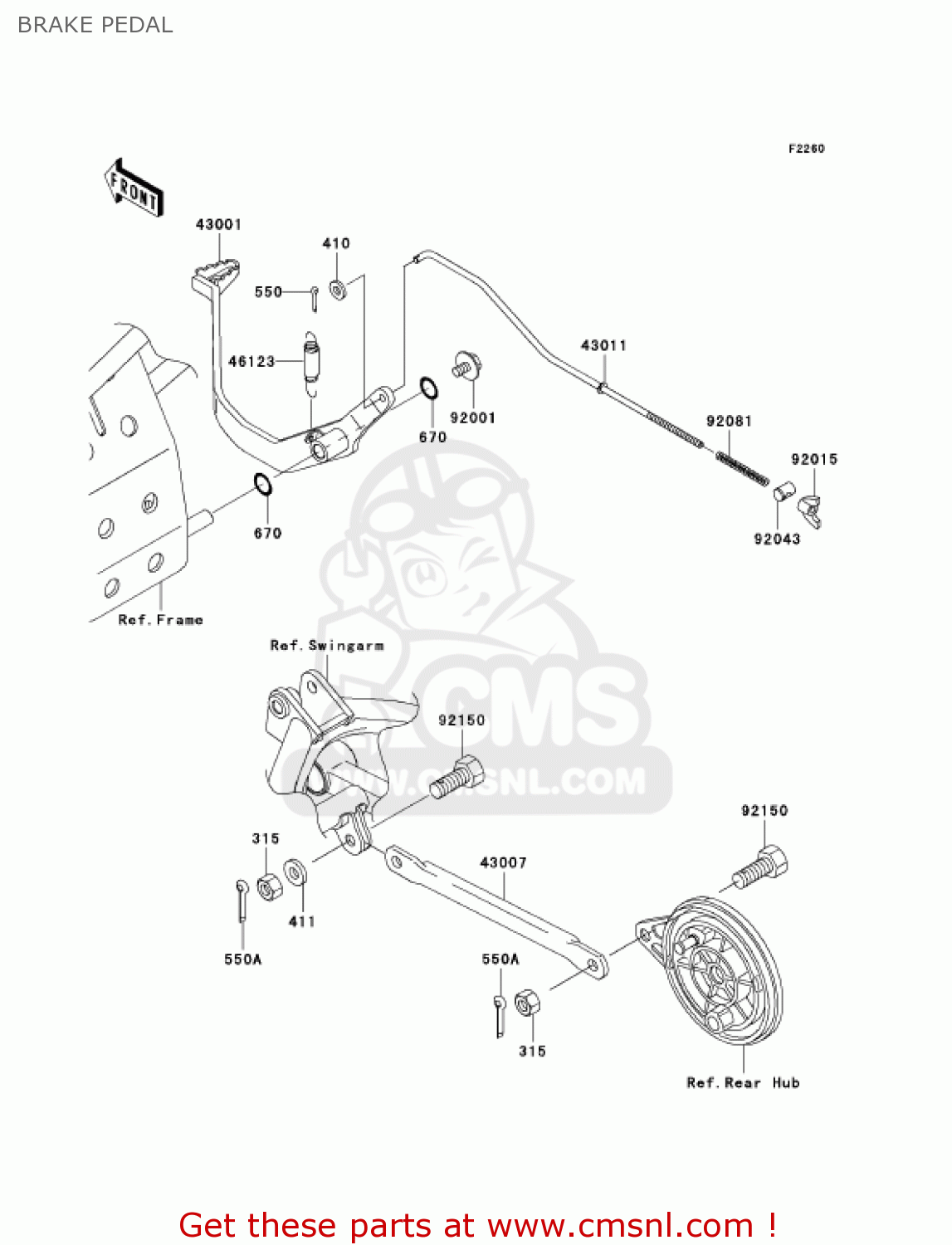

Brake pedal diagram KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

315

315G1000
ref: 315

NUT-HEX-FINE,10MM

€ 1.00

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

411

411B1000
ref: 411

WASHER-PLAIN,10MM

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

550A

550D2020
ref: 550A

PIN-COTTER,2.0X20

€ 0.50

670

670B2012
ref: 670

O RING,12MM

€ 1.00

43001

430011445
ref: 43001

LEVER-BRAKE,PEDAL

€ 40.50

43007

430071203
ref: 43007

ROD-TORQUE

€ 37.50

43011

430111186
ref: 43011

ROD-BRAKE

€ 16.50

46123

461231060
ref: 46123

SPRING-COMP,BRAKE PED

€ 4.50

92001

920011034
ref: 92001

BOLT,HEX HEAD,6X10

€ 7.00

92015

920154004
ref: 92015

NUT,BRAKE ADJUSTING

€ 4.50

92043

92043039
ref: 92043

PIN,BRAKE ROD

€ 4.50

92081

920811688
ref: 92081

SPRING,BRAKE ROD

€ 3.00

92150

921501873
ref: 92150

BOLT,10X25

€ 3.50
