CYLINDER/PISTON(S)

KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

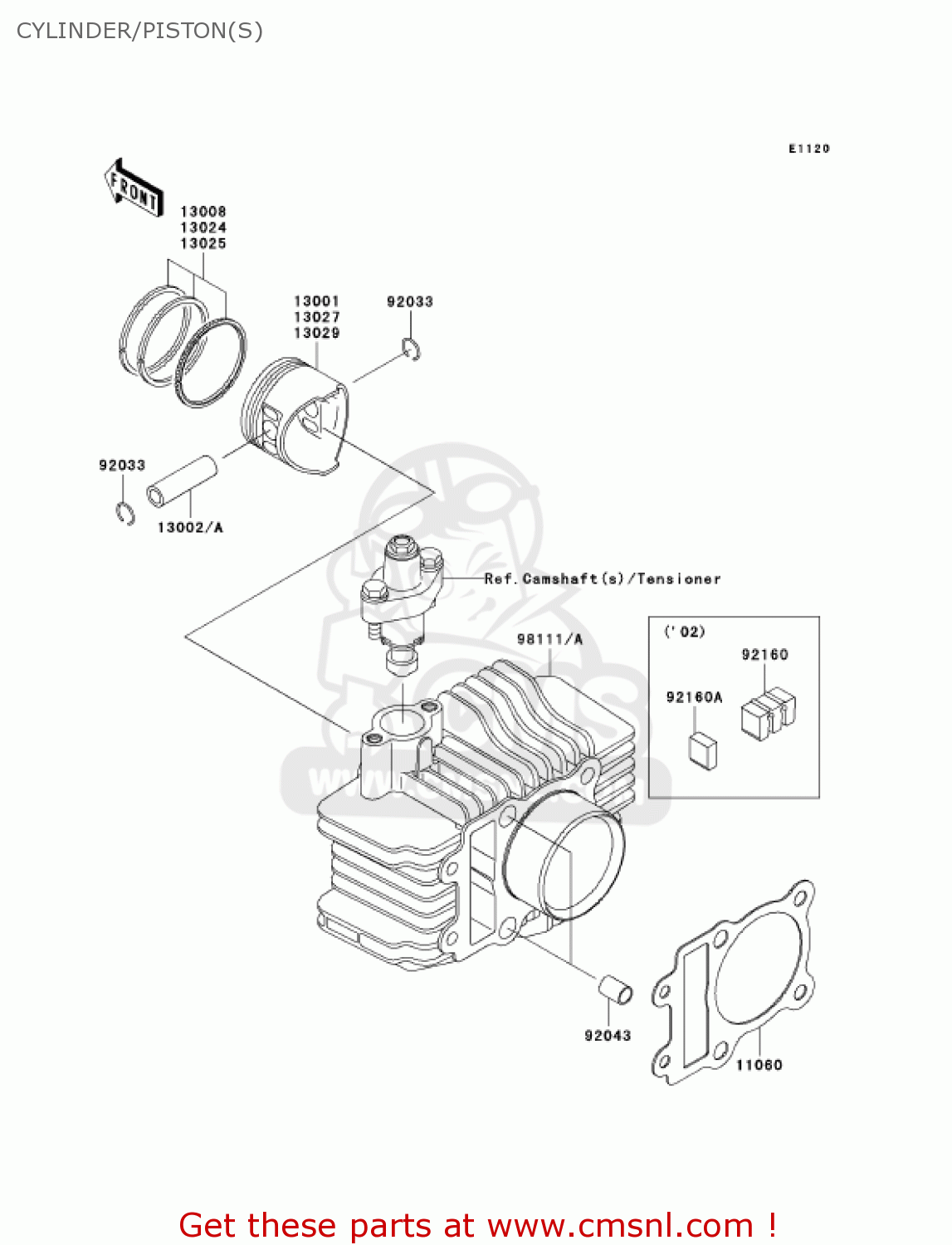

Cylinder/piston(s) diagram KLX110-A3 KLX110 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11060

110601796
ref: 11060

GASKET (NAS)

€ 2.50

13001

130011512
ref: 13001

PISTON-ENGINE

€ 43.50

13002A

130021123
ref: 13002A

PIN-PISTON

€ 6.50

13008

130081189
ref: 13008

RING-SET-PISTON,STD

€ 35.00

13024

130241119
ref: 13024

RING-SET-PISTON LL,O/

€ 35.00

13025

130251148
ref: 13025

RING-SET-PISTON L,O/S

€ 35.00

13027

130271198
ref: 13027

PISTON-ENGINE,LL,O/S

€ 43.50

13029

130291255
ref: 13029

PISTON-ENGINE,LL,0.50

€ 43.50

92033

920331072
ref: 92033

RING-SNAP

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

98111A

981111083
ref: 98111A

CYLINDER-COMP-ENGINE

€ 151.50
