VALVE(S)

KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

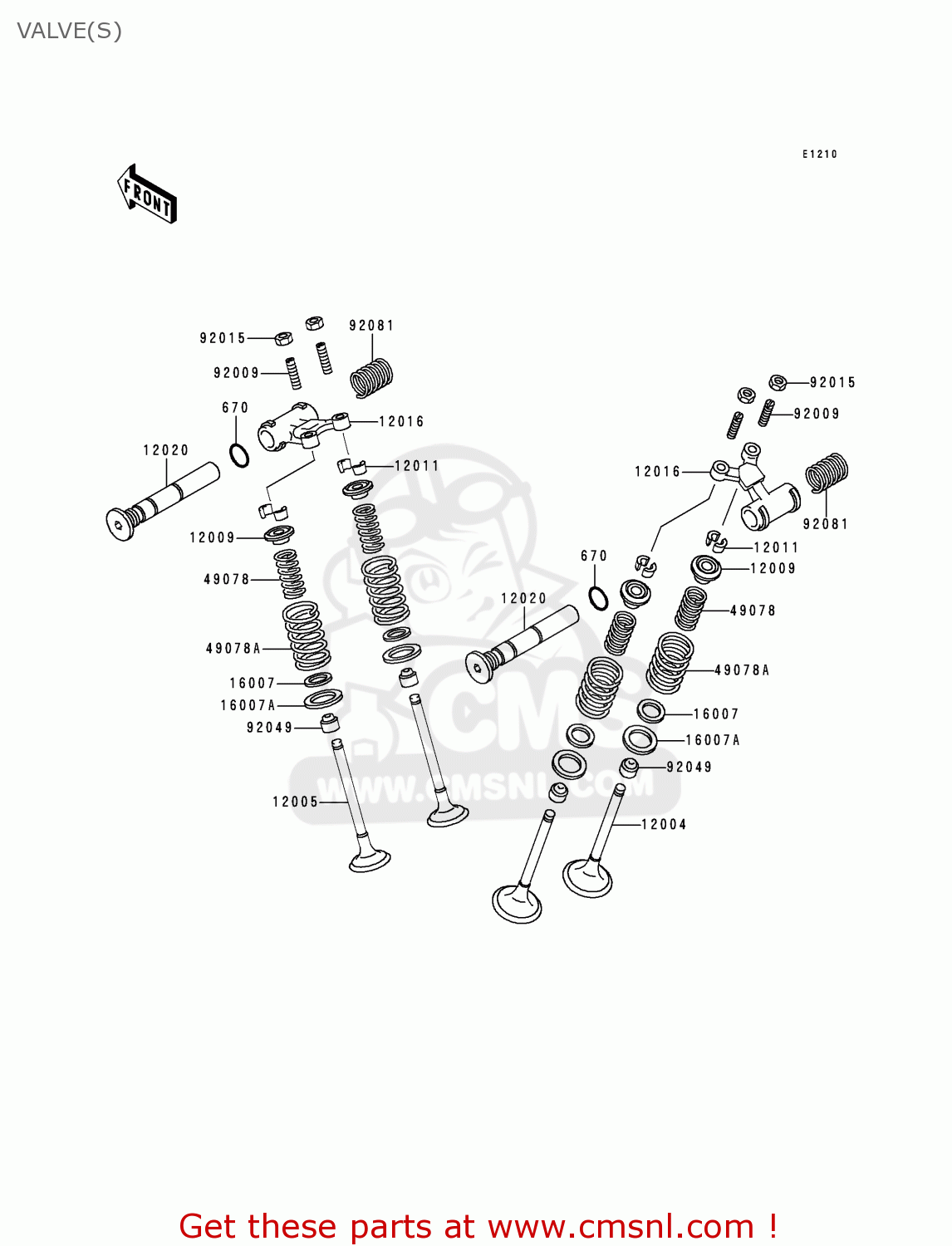

Valve(s) diagram KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

670

670D2016
ref: 670

O RING,16MM

€ 1.00

12004

120041119
ref: 12004

VALVE-INTAKE

€ 38.00

12005

120051052
ref: 12005

VALVE-EXHAUST

€ 68.00

12009

120091054
ref: 12009

RETAINER-VALVE SPRING

€ 7.00

12011

120111003
ref: 12011

COLLET

€ 3.00

12016

120161051
ref: 12016

ARM-ROCKER

€ 84.00

12020

120201057
ref: 12020

SHAFT-ROCKER

€ 50.00

16007

160071177
ref: 16007

SEAT-SPRING,12.1X16.2

€ 3.50

16007A

160071178
ref: 16007A

SEAT-SPRING,17.5X23.8

€ 4.00

49078

490781051
ref: 49078

SPRING-ENGINE VALVE,I

€ 10.50

49078A

490781052
ref: 49078A

SPRING-ENGINE VALVE,O

€ 10.50

92009

920091279
ref: 92009

SCREW,7MM

€ 6.50

92015

920151325
ref: 92015

NUT,7MM

€ 3.00

92049

920491062
ref: 92049

OIL SEAL,RVC2-5.5X8.5

€ 6.50

92081

920811636
ref: 92081

SPRING,ROCKER ARM

€ 10.00

VALVE(S)

all assemblies
