IGNITION SWITCH

KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

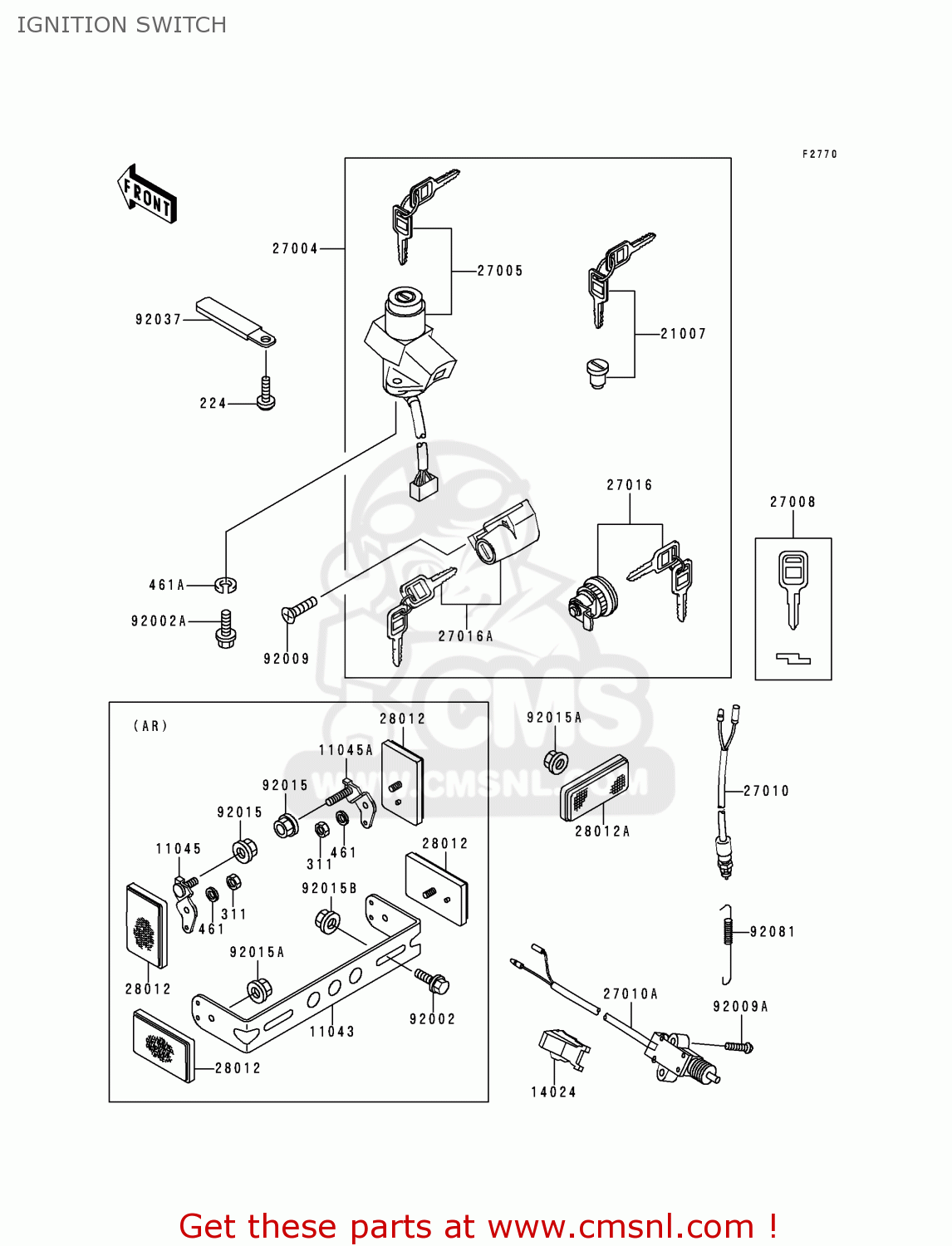

Ignition switch diagram KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

224

224B0508
ref: 224

SCREW-PAN-WP-CROS

€ 0.50

461A

461L0600
ref: 461A

WASHER-SPRING

€ 0.50

14024

140241532
ref: 14024

COVER,SIDE STAND SWIT

€ 5.00

21007

210075037
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27004

270045481
ref: 27004

SWITCH-ASSY

€ 433.00

27005

270055102
ref: 27005

SWITCH-ASSY-IGNITION

€ 249.50

27008

270081173
ref: 27008

KEY-LOCK,BLANK

€ 13.00

27010

270101093
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010A

270101223
ref: 27010A

SWITCH,SIDE STAND

€ 48.00

27016

270165210
ref: 27016

LOCK-ASSY,TOOL BOX

€ 56.50

27016A

270165211
ref: 27016A

LOCK-ASSY,HELMET

€ 56.50

28012A

280121077
ref: 28012A

REFLECTOR-REFLEX

€ 16.00

92002A

920021333
ref: 92002A

BOLT

€ 1.50

92009

920091401
ref: 92009

SCREW

€ 2.50

92009A

920091459
ref: 92009A

SCREW

€ 2.50

92015A

920151259
ref: 92015A

NUT,FLANGED,5MM

€ 2.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92081

920811082
ref: 92081

SPRING,BRAKE L.SWITCH

€ 6.50

IGNITION SWITCH

all assemblies
