SEAT

KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

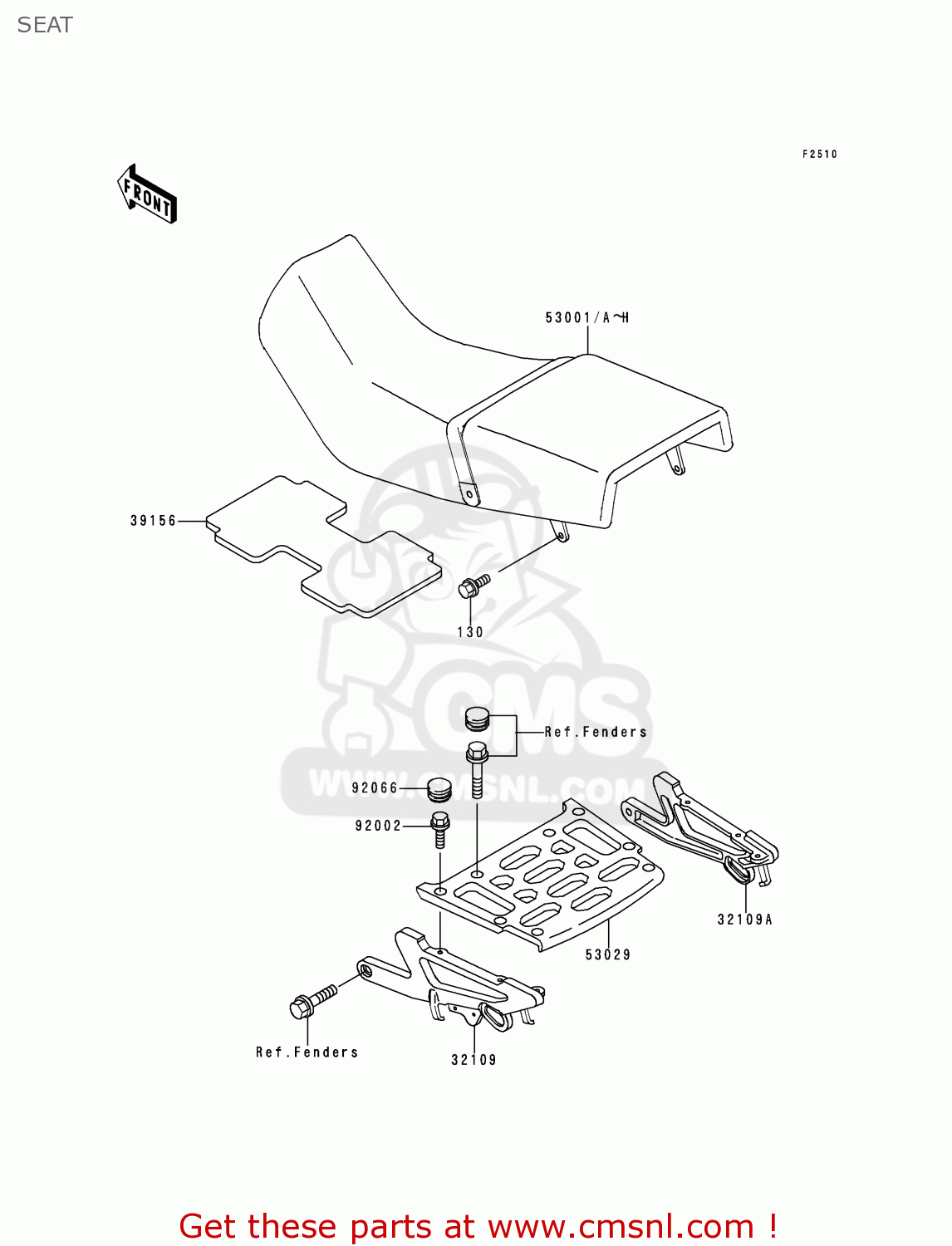

Seat diagram KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

130

130H0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

32109

321091225
ref: 32109

GRIP-FRAME,LH

€ 205.50

32109A

321091226
ref: 32109A

GRIP-FRAME,RH

€ 81.00

39156

391561554
ref: 39156

PAD,SEAT

€ 15.50

53001G

530011908K7
ref: 53001G
AREUFGFRGRITNLNRSPUK

SEAT-ASSY,DUAL,S.M.BR

€ 401.00

53001H

530011908MW
ref: 53001H
AREUFGFRGRITNLNRSDSP

SEAT-ASSY,BLACK

€ 382.00

53029

530291130
ref: 53029

CARRIER

€ 124.00

92002

920021933
ref: 92002

BOLT

€ 3.00

92066

920661115
ref: 92066

PLUG

€ 3.50

all assemblies
