FRONT HUB

KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

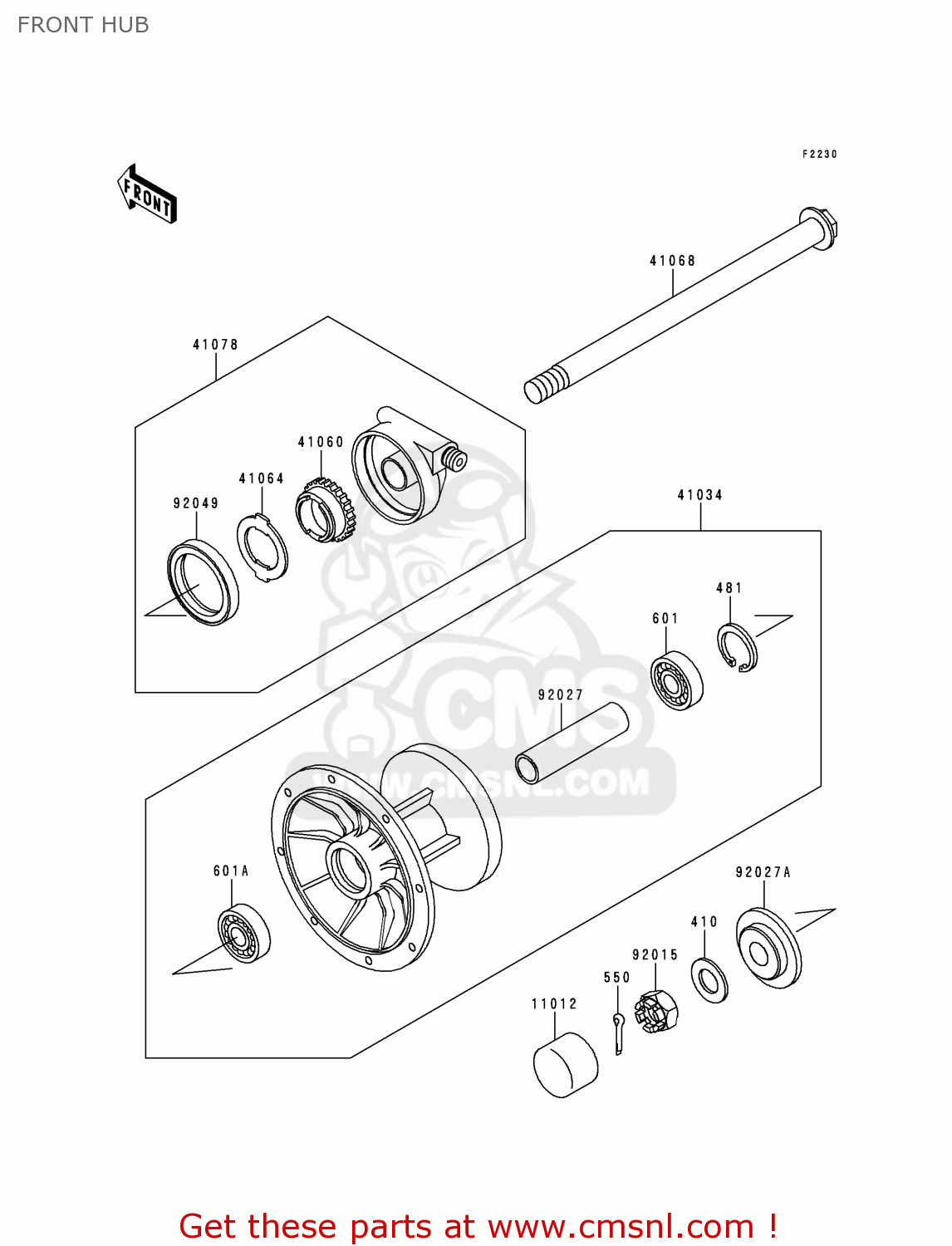

Front hub diagram KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

410

410B1400
ref: 410

410B1400

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6202UG
ref: 601

BEARING BALL

€ 19.50

601A

601B6203UG
ref: 601A

BEARING-BALL,#6203UG

€ 35.50

11012

110121594
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41034

410341153
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 521.50

41060

410601101
ref: 41060

GEAR-METER SCREW,24T

€ 27.00

41064

410641051
ref: 41064

RECEIVER-SPEEDOMETER

€ 8.00

41068

410681236
ref: 41068

AXLE,FR

€ 55.00

41078

410781051
ref: 41078

CASE-ASSY-METER GEAR

€ 103.00

92015

920151765
ref: 92015

NUT,CASTLE,14MM

€ 6.50

92027

920271683
ref: 92027

COLLAR,FRONT BRAKE DR

€ 28.50

92027A

920271864
ref: 92027A

COLLAR

€ 21.50

92049

920491172
ref: 92049

SEAL-OIL,METER GEAR C

€ 12.00

FRONT HUB

all assemblies
