SWINGARM
KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

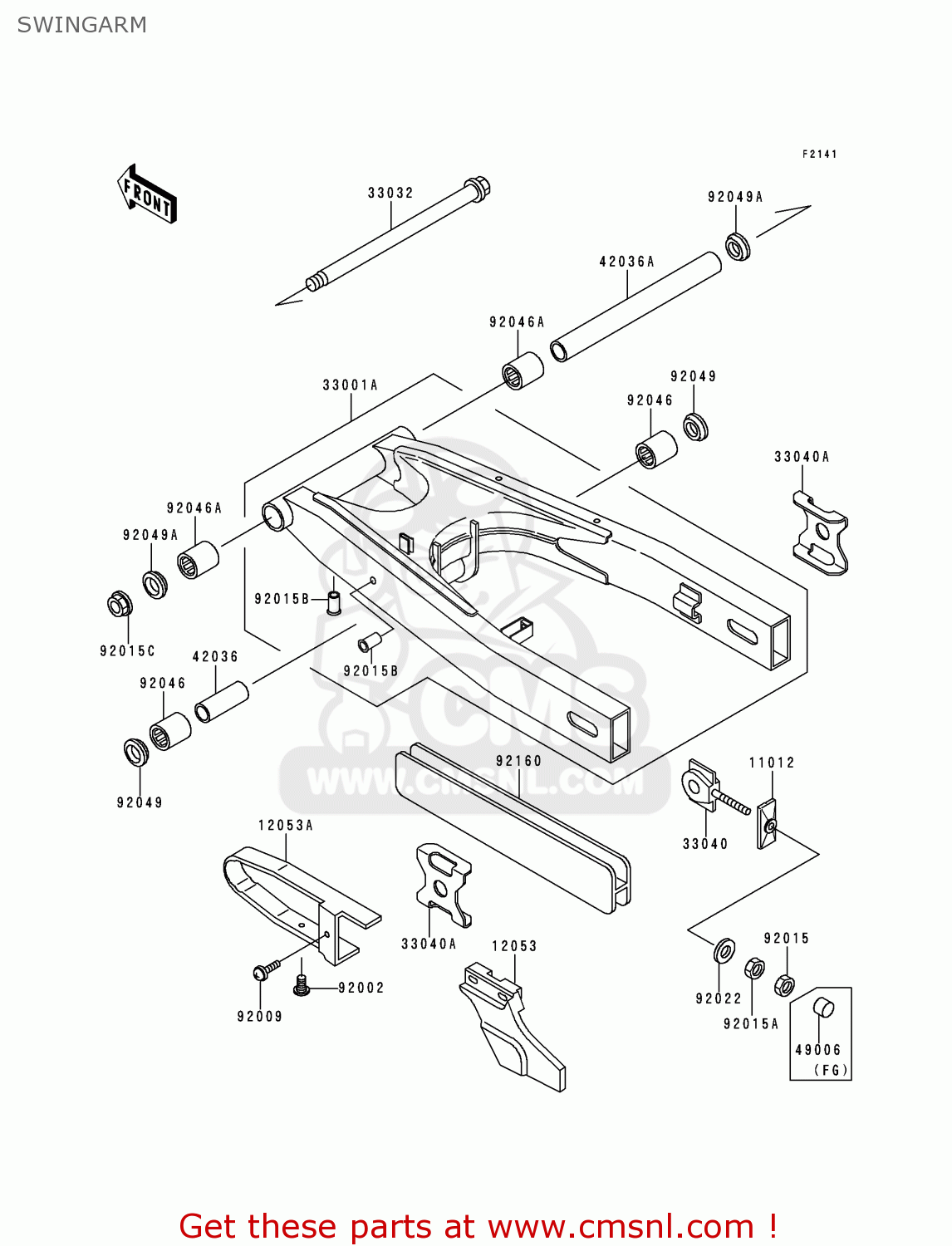

Swingarm diagram KLE500A7 1997 EUROPE UK FR NL AR FG NR SP
SWINGARM KLE500A7 1997 EUROPE UK FR NL AR FG NR SP
×
prices are in EUR
ref
part #
description
quantity
11012
110121780
ref: 11012
CAP,CHAIN ADJUSTER
€ 17.50
12053
120531104
ref: 12053
GUIDE-CHAIN,RR
€ 46.00
12053A
120531360
ref: 12053A
GUIDE-CHAIN,DRIVE,FR
€ 37.50
33001A
330011399CE
ref: 33001A
ARM-COMP-SWING,SILVER
€ 451.50
33032
330321134
ref: 33032
SHAFT-SWING ARM
€ 40.50
33040
330401116
ref: 33040
ADJUSTER-CHAIN,INNER
€ 20.50
33040A
330401122
ref: 33040A
ADJUSTER-CHAIN,OUTER
€ 12.00
42036
420361205
ref: 42036
SLEEVE,15X20X82
€ 18.50
42036A
420361218
ref: 42036A
SLEEVE
€ 34.50
49006
490061218
ref: 49006
FG
BOOT
€ 3.50
92002
920021775
ref: 92002
BOLT,DISC PLATE,6MM
€ 2.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92015
920151364
ref: 92015
NUT,8MM
€ 2.50
92015A
920151658
ref: 92015A
NUT,FLANGED,8MM
€ 3.00
92015B
920151791
ref: 92015B
NUT,POP,6MM
€ 3.00
92015C
920151946
ref: 92015C
NUT
€ 8.50
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92046A
920461174
ref: 92046A
BEARING-NEEDLE,TA2230
€ 37.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92049A
920491289
ref: 92049A
SEAL-OIL
€ 6.00
92160
921601614
ref: 92160
DAMPER,SWING ARM
€ 21.00
