COWLING(KLE500-A7/A8/A9)

KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

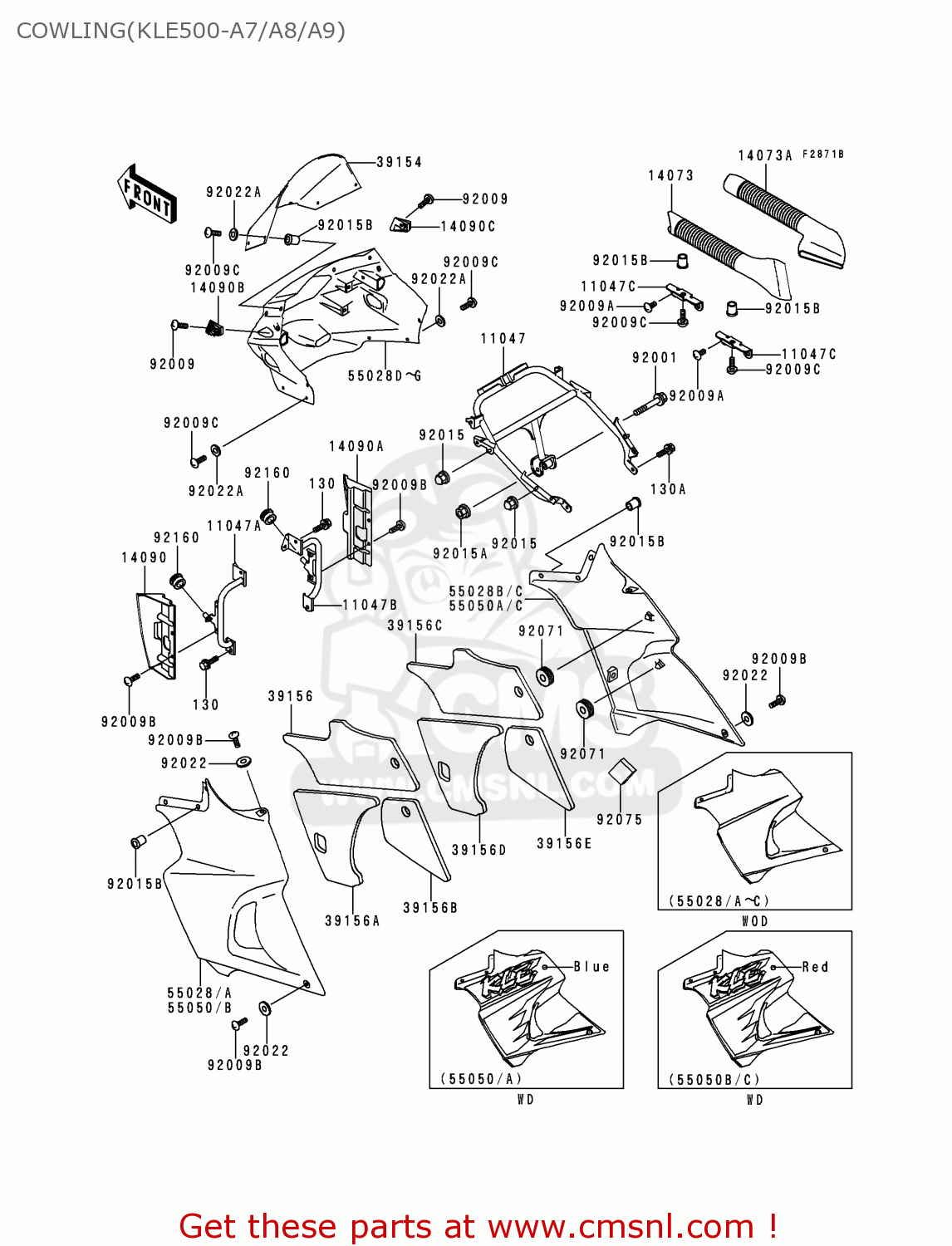

Cowling(kle500-a7/a8/a9) diagram KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

COWLING(KLE500-A7/A8/A9) KLE500A7 1997 EUROPE UK FR NL AR FG NR SP
COWLING(KLE500-A7/A8/A9) KLE500A7 1997 EUROPE UK FR NL AR FG NR SP
COWLING(KLE500-A7/A8/A9) KLE500A7 1997 EUROPE UK FR NL AR FG NR SP
prices are in EUR
ref
part #
description
quantity
11047
110471356
ref: 11047
BRACKET,UPP COWLING
110471356
€ 145.50
11047A
110471357
ref: 11047A
BRACKET,SIDE COWLING,
110471357
€ 47.00
11047B
110471358
ref: 11047B
BRACKET,SIDE COWLING,
110471358
€ 47.00
11047C
110471390
ref: 11047C
BRACKET,DUCT
110471390
€ 5.00
14073
140731486
ref: 14073
DUCT,LH
140731486
€ 30.00
14073A
140731487
ref: 14073A
DUCT,RH
140731487
€ 32.50
14090
140901100
ref: 14090
COVER,SIDE COWLING,LH
140901100
€ 35.00
14090A
140901101
ref: 14090A
COVER,SIDE COWLING,RH
140901101
€ 35.00
14090B
140901439
ref: 14090B
COVER,UPP COWLING,LH
140901439
€ 4.50
14090C
140901440
ref: 14090C
COVER,UPP COWLING,RH
140901440
€ 4.50
39154
391541127
ref: 39154
WINDSHIELD
391541127
€ 69.00
39156
391561541
ref: 39156
PAD,SIDE COWLING,LH,U
391561541
€ 14.00
39156A
391561542
ref: 39156A
PAD,SIDE COWLING,LH,L
391561542
€ 12.00
39156B
391561543
ref: 39156B
PAD,SIDE COWLING,LH,L
391561543
€ 11.50
39156C
391561544
ref: 39156C
PAD,SIDE COWLING,RH,U
391561544
€ 14.00
39156D
391561545
ref: 39156D
PAD,SIDE COWLING,RH,L
391561545
€ 12.00
39156E
391561546
ref: 39156E
PAD,SIDE COWLING,RH,L
391561546
€ 9.50
55028D
550281325CR
ref: 55028D
COWLING,UPP,RED/BLACK
€ 143.00
55028G
5502813257A
ref: 55028G
AREUFGFRGRITNLNRSP
COWLING,UPP,BLUE/BLAC
€ 157.50
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
55050
550505070C6
ref: 55050
AREUFGFRGRITNLNRSP
COWLING-ASSY.,SIDE,LH
€ 423.00
55050A
550505071C6
ref: 55050A
AREUFGFRGRITNLNRSP
COWLING-ASSY.,SIDE,RH
€ 423.00
55050B
550505072A5
ref: 55050B
COWLING-ASSY.,SIDE,LH
550505072A5
€ 322.00
55050C
550505073A5
ref: 55050C
COWLING-ASSY.,SIDE,RH
550505073A5
€ 372.00
92001
920011614
ref: 92001
BOLT,FLANGED,8X50
920011614
€ 3.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92009A
920091530
ref: 92009A
SCREW,6X10
920091530
€ 2.50
92009B
920091611
ref: 92009B
SCREW,6X14
920091611
€ 2.50
92009C
920091654
ref: 92009C
SCREW
920091654
€ 0.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92075
920751925
ref: 92075
DAMPER
920751925
€ 5.50
92160
921601141
ref: 92160
DAMPER
921601141
€ 3.00
