BRAKE PEDAL

KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

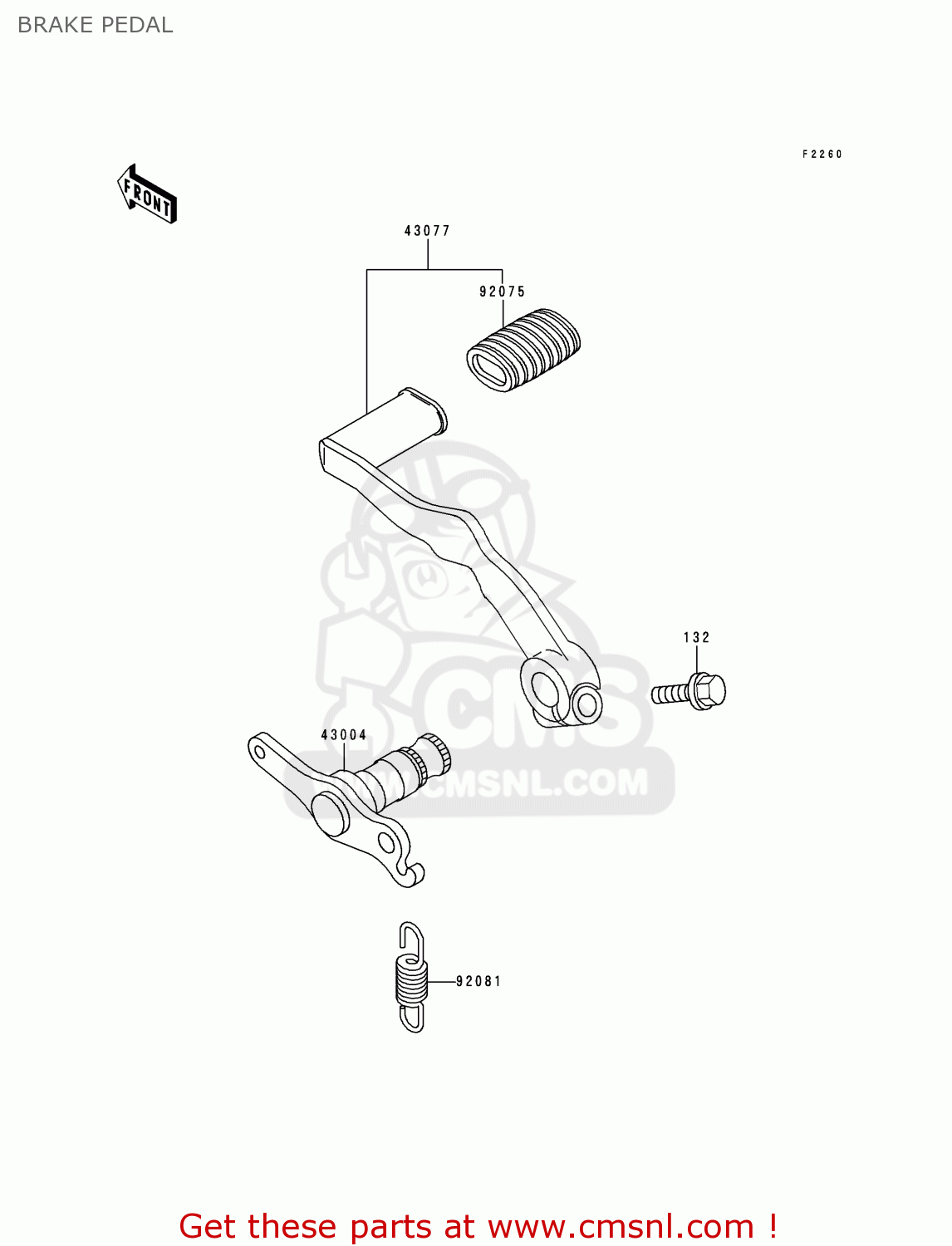

Brake pedal diagram KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

BRAKE PEDAL KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

BRAKE PEDAL KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

prices are in EUR

ref

part #

description

quantity

132

132E0825
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

43004

430041130
ref: 43004

SHAFT-BRAKE

€ 36.50

43077

430771076
ref: 43077

LEVER-ASSY-BRAKE,PEDA

€ 94.50

92075

920751585
ref: 92075

DAMPER

€ 6.50

92081

920811147
ref: 92081

SPRING,BRAKE PEDAL

€ 8.00
