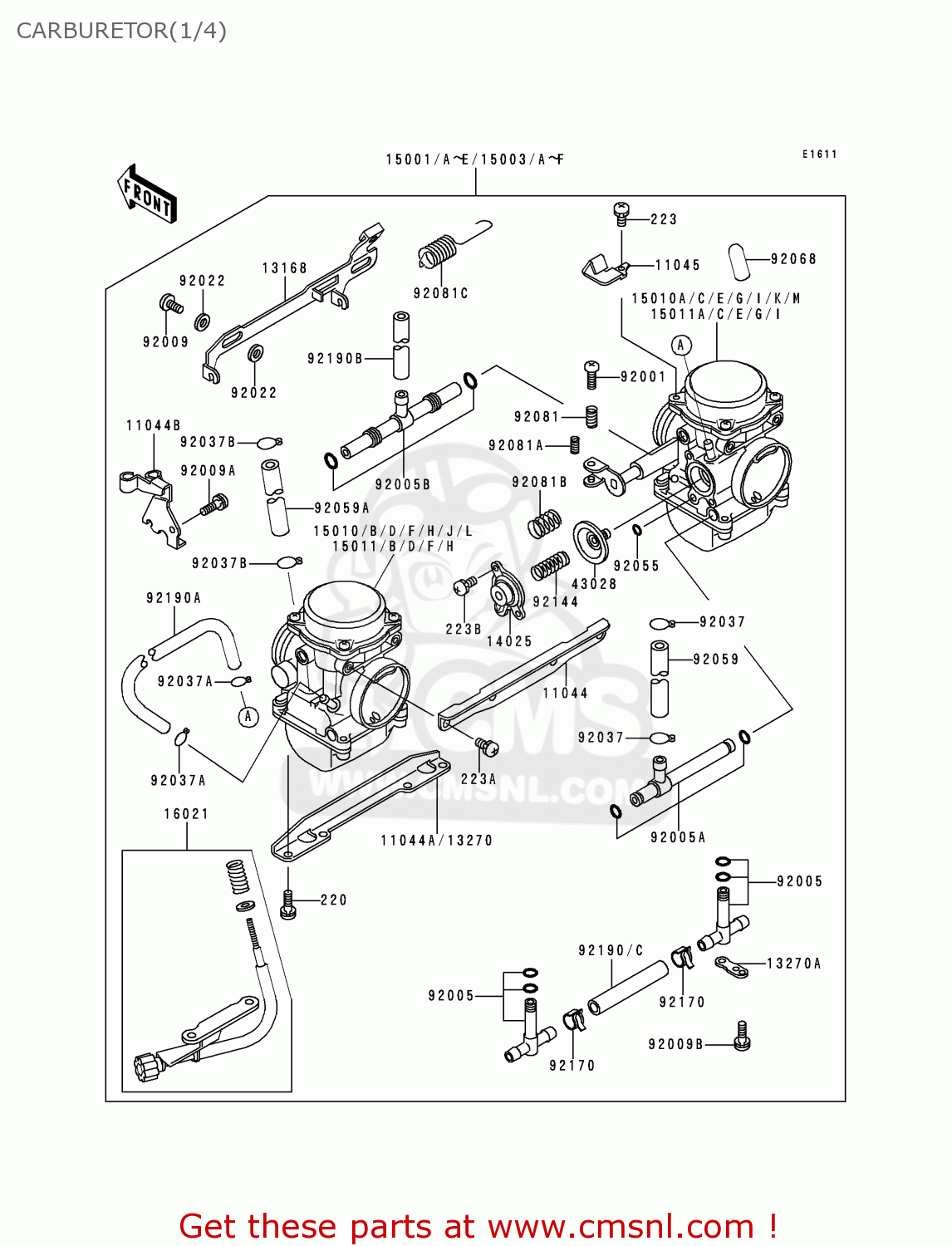

CARBURETOR(1/4)

ref

part #

description

quantity

11044

110441313
ref: 11044

BRACKET,CARBURETOR ST

€ 43.50

11044A

110441314
ref: 11044A
EUGRNRSP

BRACKET,CARBURETOR ST

€ 45.50

11044B

110441546
ref: 11044B

BRACKET,THROTTLE CABL

€ 41.00

11045

110451824
ref: 11045

BRACKET,STARTER LEVER

€ 44.50

13168

131681360
ref: 13168

LEVER

€ 55.50

13270

132701062
ref: 13270
ARFGFRITNLUK

PLATE,LWR,STAY

€ 47.00

13270A

132701063
ref: 13270A
ARFGFRITNLUK

PLATE,JOINT STAY

€ 21.00

14025

140251903
ref: 14025

COVER,AIR CUT VALVE

€ 43.00

15003B

150031243
ref: 15003B
EUGRNRSP

CARBURETOR-ASSY

€ 1,545.50

15003C

150031244
ref: 15003C
FRITNLUK

CARBURETOR-ASSY

€ 1,545.50

15003D

150031298
ref: 15003D
FG

CARBURETOR-ASSY

€ 1,545.50

15003E

150031298
ref: 15003E
AR

CARBURETOR-ASSY

€ 1,545.50

15003F

150031326
ref: 15003F
AR

CARBURETOR-ASSY

€ 1,339.00

15011B

150111237
ref: 15011B
EUGRNRSP

CARBURETOR,LH

€ 1,011.50

15011C

150111238
ref: 15011C
EUGRNRSP

CARBURETOR,RH

€ 1,011.50

15011D

150111239
ref: 15011D
FRITNLUK

CARBURETOR,LH

€ 1,011.50

15011E

150111240
ref: 15011E
FRITNLUK

CARBURETOR,RH

€ 1,011.50

15011F

150111336
ref: 15011F
FG

CARBURETOR,LH

€ 1,054.00

15011G

150111337
ref: 15011G
FG

CARBURETOR,RH

€ 1,054.00

15011H

150111353
ref: 15011H
AR

CARBURETOR,LH

€ 884.00

15011I

150111354
ref: 15011I
AR

CARBURETOR,RH

€ 858.50

16021

160211182
ref: 16021

SCREW-THROTTLE STOP

€ 79.50

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051291
ref: 92005
ARFGFRITNLUK

FITTING

€ 26.50

92005A

920051325
ref: 92005A

FITTING

€ 37.00

92005B

920051326
ref: 92005B

FITTING

€ 37.00

92009

920091262
ref: 92009

SCREW

€ 4.00

92009A

920091365
ref: 92009A

SCREW

€ 4.50

92009B

920091705
ref: 92009B
ARFGFRITNLUK

SCREW 4X8

€ 2.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371142
ref: 92037A

CLAMP,TUBE

€ 2.50

92037B

920371477
ref: 92037B

CLAMP,TUBE

€ 3.00

92055

920551245
ref: 92055

RING-O

€ 3.50

92059

920591236
ref: 92059

TUBE,FUEL

€ 25.00

92059A

920591713
ref: 92059A

TUBE,5X9X120

€ 16.50

92068

92068006
ref: 92068
EUFRGRITNLNRSPUK

RUBBER PLUG

€ 2.50

92081

920811620
ref: 92081

SPRING,THROTTLE ADJUS

€ 3.00

92081A

920811621
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811876
ref: 92081B

SPRING

€ 6.00

92081C

920811893
ref: 92081C

SPRING,STARTER LEVER

€ 12.50

92144

921441072
ref: 92144

SPRING,AIR CUT VALVE

€ 6.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

223

223C0420
ref: 223

SCREW-PAN-WS-CROS

€ 3.00

223A

223C0510
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50

223B

223D0408
ref: 223B

SCREW-PAN-WS-CROS

€ 1.00

92170

921701504
ref: 92170
ARFGFRITNLUK

CLAMP

€ 3.00

92190A

921901218
ref: 92190A

TUBE,3.5X6.5X240

€ 5.50

92190B

921901246
ref: 92190B

TUBE,6.5X9.5X450

€ 20.50

92190C

921901542
ref: 92190C
ARFGFRITNLUK

TUBE,WATER

€ 9.00

all assemblies
