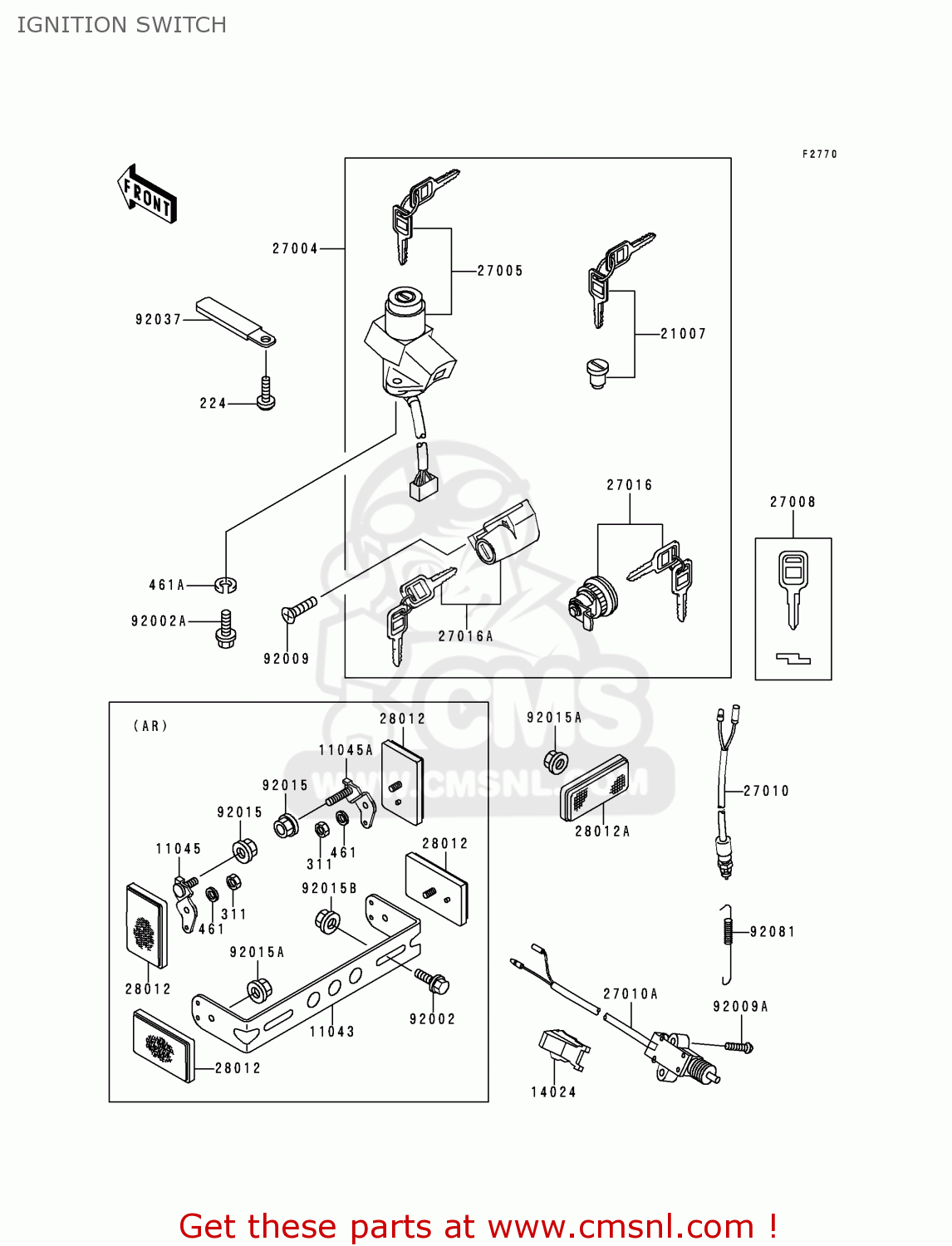

IGNITION SWITCH

ref

part #

description

quantity

224

224B0508
ref: 224

SCREW-PAN-WP-CROS

€ 0.50

311

311B0500
ref: 311
AR

NUT-HEX

€ 0.50

461

461F0500
ref: 461
AR

WASHER-SPRING,5MM

€ 0.50

461A

461L0600
ref: 461A

WASHER-SPRING

€ 0.50

11043

110431619
ref: 11043
AR

BRACKET,REFLECTOR,RR

€ 9.00

11045

110451354
ref: 11045
AR

BRACKET,REFLECTOR,FR

€ 5.50

11045A

110451355
ref: 11045A
AR

BRACKET,REFLECTOR,FR

€ 6.00

14024

140241532
ref: 14024

COVER,SIDE STAND SWIT

€ 5.00

21007

210075037
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27004

270045481
ref: 27004

SWITCH-ASSY

€ 433.00

27005

270055102
ref: 27005

SWITCH-ASSY-IGNITION

€ 249.50

27008

270081173
ref: 27008

KEY-LOCK,BLANK

€ 13.00

27010

270101093
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010A

270101223
ref: 27010A

SWITCH,SIDE STAND

€ 48.00

27016

270165210
ref: 27016

LOCK-ASSY,TOOL BOX

€ 56.50

27016A

270165211
ref: 27016A

LOCK-ASSY,HELMET

€ 56.50

28012

280121003
ref: 28012
AR

REFLECTOR,REFLEX

€ 15.00

28012A

280121077
ref: 28012A

REFLECTOR-REFLEX

€ 16.00

92002

920021132
ref: 92002
AR

BOLT,6X12

€ 2.50

92002A

920021333
ref: 92002A

BOLT

€ 1.50

92009

920091401
ref: 92009

SCREW

€ 2.50

92009A

920091459
ref: 92009A

SCREW

€ 2.50

92015

920151233
ref: 92015
AR

NUT,FLANGED,6MM

€ 3.50

92015A

920151259
ref: 92015A
AR

NUT,FLANGED,5MM

€ 2.50

92015A

920151259
ref: 92015A
EUFGFRNLNRSPST

NUT,FLANGED,5MM

€ 2.50

92015B

920151367
ref: 92015B
AR

NUT,FLANGED,6MM

€ 0.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92081

920811082
ref: 92081

SPRING,BRAKE L.SWITCH

€ 6.50

all assemblies
