CYLINDER HEAD

KLE500A6 1996 EUROPE FR NL AR FG NR SP ST

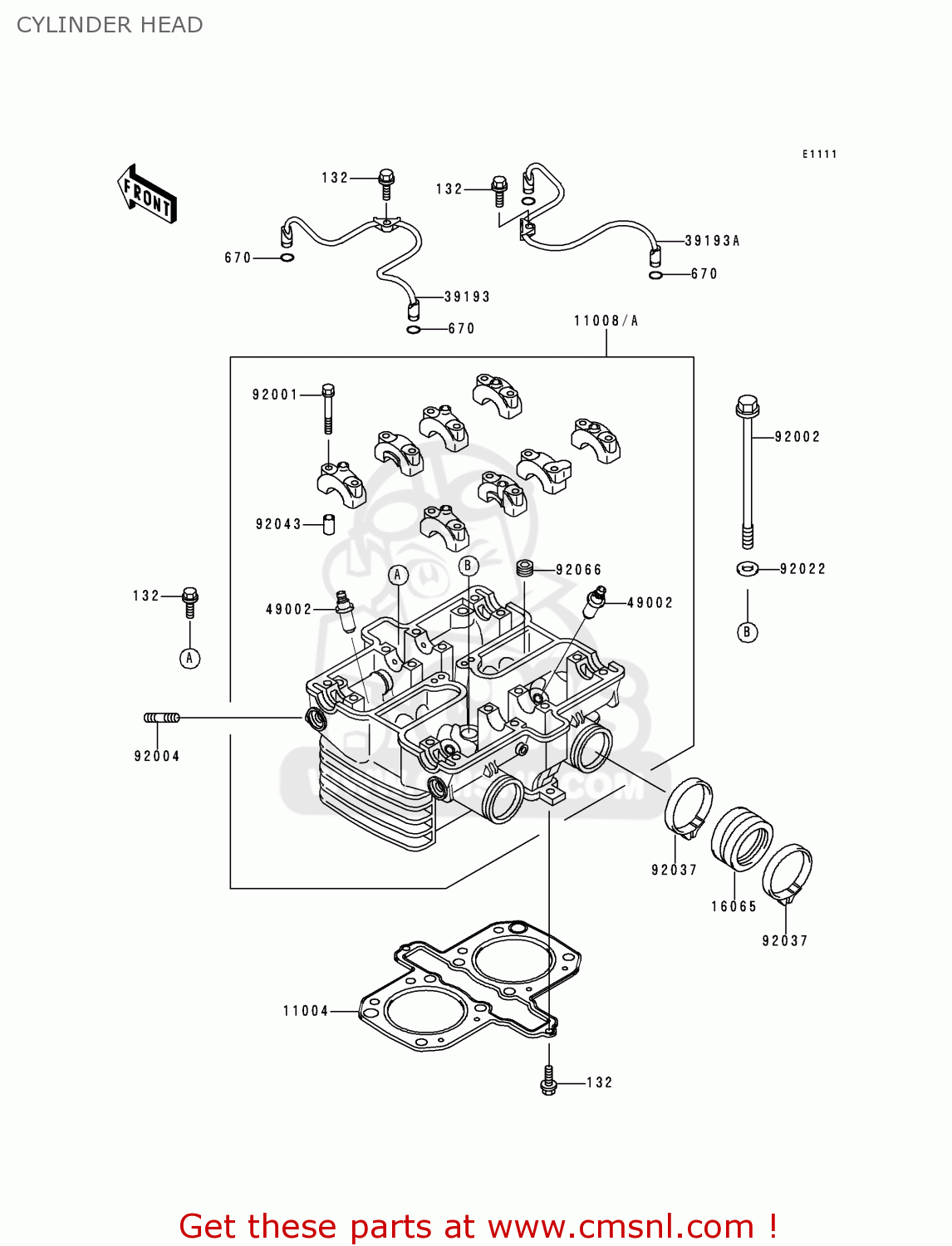

Cylinder head diagram KLE500A6 1996 EUROPE FR NL AR FG NR SP ST

prices are in EUR

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

670

670D1507
ref: 670

O RING,7MM

€ 1.00

11004

110041159
ref: 11004

GASKET-HEAD (NAS)

€ 61.00

11008

110081258
ref: 11008
EUFGFRNLNRSP

HEAD-COMP-CYLINDER

€ 1,383.50

11008A

110081259
ref: 11008A
ARST

HEAD-COMP-CYLINDER

€ 1,402.50

16065

160651128
ref: 16065

HOLDER-CARBURETOR

€ 17.00

39193

391931038
ref: 39193

PIPE-OIL,LH

€ 44.00

39193A

391931039
ref: 39193A

PIPE-OIL,RH

€ 44.00

49002

490021052
ref: 49002

GUIDE-VALVE

€ 26.00

92001

920011872
ref: 92001

BOLT,6X46

€ 2.50

92002

920021943
ref: 92002

BOLT,10X164

€ 10.50

92004

920041214
ref: 92004

STUD

€ 3.50

92022

920221591
ref: 92022

WASHER,10.5X20X1.6

€ 3.00

92037

920371523
ref: 92037

CLAMP

€ 8.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92066

920661253
ref: 92066

PLUG,PT1/2X12.5

€ 6.50
