CARBURETOR PARTS

KLE500A6 1996 EUROPE FR NL AR FG NR SP ST

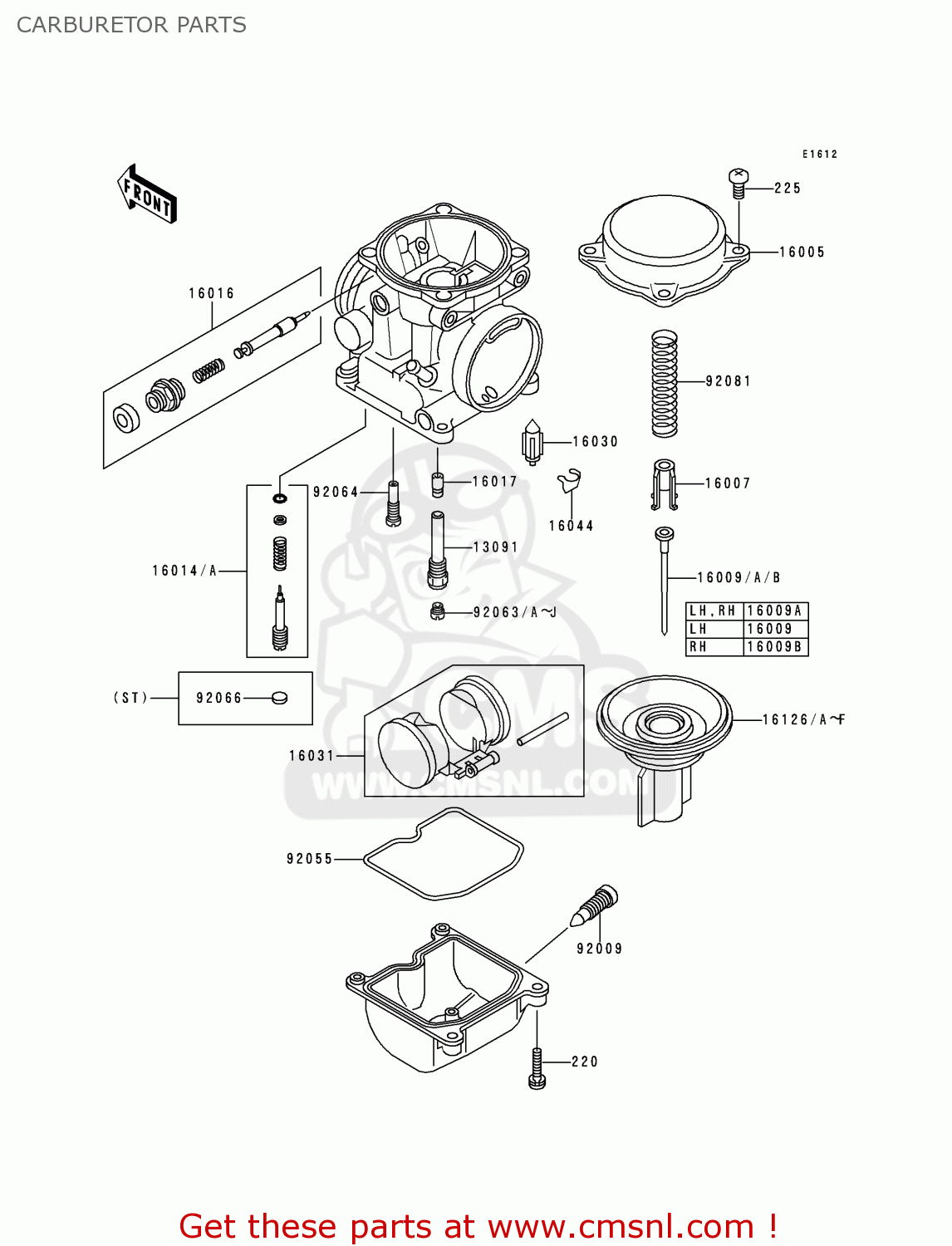

Carburetor parts diagram KLE500A6 1996 EUROPE FR NL AR FG NR SP ST

CARBURETOR PARTS KLE500A6 1996 EUROPE FR NL AR FG NR SP ST
CARBURETOR PARTS KLE500A6 1996 EUROPE FR NL AR FG NR SP ST
CARBURETOR PARTS KLE500A6 1996 EUROPE FR NL AR FG NR SP ST
prices are in EUR
ref
part #
description
quantity
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
130911425
€ 19.50
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
160051057
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091464
ref: 16009
EUFGFRNLNRSP
NEEDLE-JET,N60D
€ 26.00
16009A
160091657
ref: 16009A
ARST
NEEDLE-JET,N96J
160091657
€ 23.00
16009B
160091677
ref: 16009B
EUFGFRNLNRSP
NEEDLE-JET,N96L
€ 23.00
16014
160141080
ref: 16014
EUFGFRNLNRSP
SCREW-PILOT AIR
160141080
€ 15.00
16014A
160141081
ref: 16014A
ARST
SCREW-PILOT AIR
160141081
€ 15.50
16016
160161090
ref: 16016
PLUNGER,STARTER
160161090
€ 46.50
16017
160171208
ref: 16017
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311077
ref: 16031
FLOAT
160311077
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261164
ref: 16126
AR
VALVE,VACUUM
€ 114.50
16126A
161261173
ref: 16126A
EUFRNLNRSP
VALVE,VACUUM
161261173
€ 159.50
16126C
161261264
ref: 16126C
ST
VALVE,VACUUM
161261264
€ 74.00
16126E
161261330
ref: 16126E
FG
VALVE,VACUUM
161261330
€ 168.00
92009
920091551
ref: 92009
SCREW,DRAIN
920091551
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631001
ref: 92063
EUFGFRNLNRSP
JET-MAIN,#95
920631001
€ 10.00
92063A
920631003
ref: 92063A
EUFGFRNLNRSP
MAIN JET, 2ND, # 90
920631003
€ 9.50
92063B
920631004
ref: 92063B
EUFGFRNLNRSP
JET-MAIN,#92
920631004
€ 10.00
220
220D0414
ref: 220
SCREW-PAN-CROS
220D0414
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92063C
920631005
ref: 92063C
EUFGFRNLNRSP
JET-MAIN,#98
920631005
€ 10.00
92063D
920631008
ref: 92063D
EUFGFRNLNRSP
JET-MAIN,#100
920631008
€ 9.00
92063E
920631024
ref: 92063E
EUFGFRNLNRSP
JET-MAIN,#88
920631024
€ 10.00
92063F
920631071
ref: 92063F
ARST
JET-MAIN,#118
920631071
€ 9.50
92063G
920631114
ref: 92063G
ARST
JET-MAIN,#110
920631114
€ 9.50
92063H
920631116
ref: 92063H
ARST
JET-MAIN,#108
920631116
€ 9.50
92063I
920631117
ref: 92063I
ARST
JET-MAIN,#112
920631117
€ 9.50
92063J
920631118
ref: 92063J
ARST
JET-MAIN,#115
920631118
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811874
ref: 92081
SPRING,VACUUM VALVE
920811874
€ 17.50
