CHASSIS ELECTRICAL EQUIPMENT

KLE500A6 1996 EUROPE FR NL AR FG NR SP ST

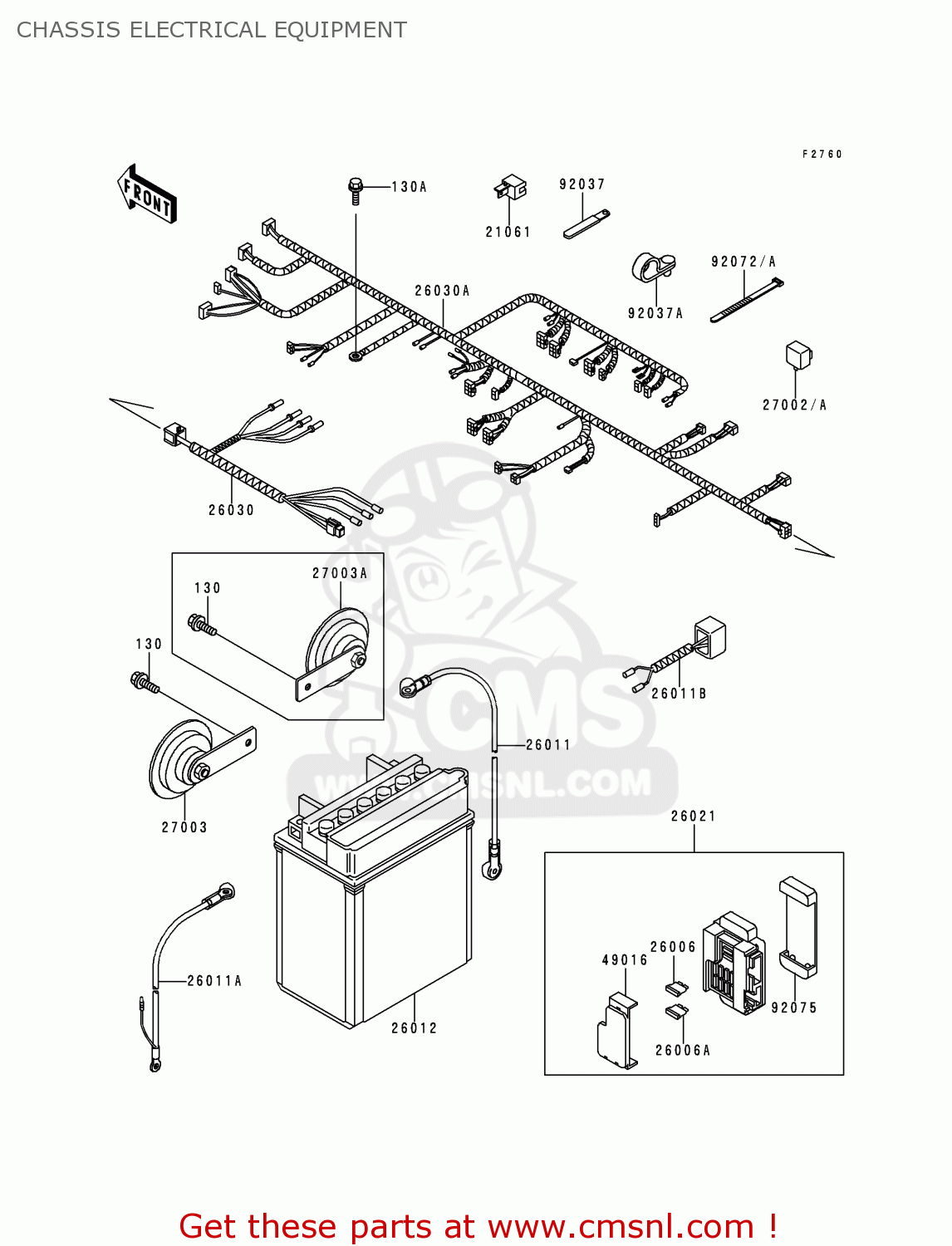

Chassis electrical equipment diagram KLE500A6 1996 EUROPE FR NL AR FG NR SP ST

CHASSIS ELECTRICAL EQUIPMENT KLE500A6 1996 EUROPE FR NL AR FG NR SP ST
CHASSIS ELECTRICAL EQUIPMENT KLE500A6 1996 EUROPE FR NL AR FG NR SP ST
CHASSIS ELECTRICAL EQUIPMENT KLE500A6 1996 EUROPE FR NL AR FG NR SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111388
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 26.50
26011A
260111496
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 20.50
26012
260121330
ref: 26012
BATTERY,YTX12BS,12V10
€ 120.50
26021
260211090
ref: 26021
JUNCTION BOX
260211090
€ 140.50
26030
260301100
ref: 26030
HARNESS,RR
260301100
€ 58.00
26030A
260301265
ref: 26030A
HARNESS,MAIN
260301265
€ 282.50
27002
270021053
ref: 27002
AREUFRNLNRSPST
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
FG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031288
ref: 27003
HORN
270031288
€ 62.00
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371903
ref: 92037A
CLAMP
920371903
€ 5.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721237
ref: 92072A
BAND,L=250
920721237
€ 2.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
