SWINGARM

KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

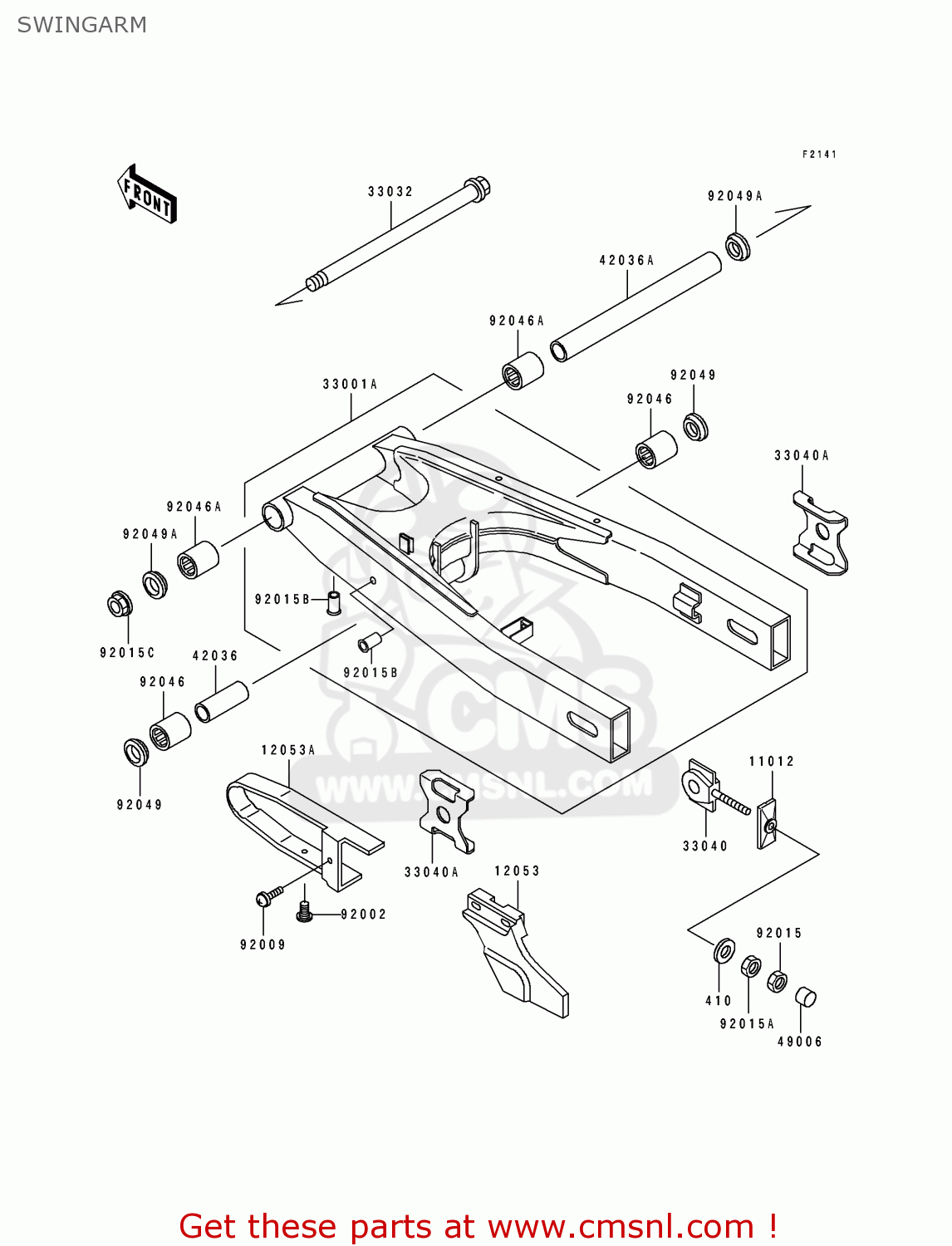

Swingarm diagram KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

SWINGARM KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
SWINGARM KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
SWINGARM KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
11012
110121780
ref: 11012
CAP,CHAIN ADJUSTER
110121780
€ 17.50
12053
120531104
ref: 12053
GUIDE-CHAIN,RR
120531104
€ 46.00
12053A
120531293
ref: 12053A
GUIDE-CHAIN,DRIVE,FR
120531293
€ 37.50
33001A
330011399CE
ref: 33001A
ARM-COMP-SWING,SILVER
€ 451.50
33032
330321134
ref: 33032
SHAFT-SWING ARM
330321134
€ 40.50
33040
330401116
ref: 33040
ADJUSTER-CHAIN,INNER
330401116
€ 20.50
33040A
330401122
ref: 33040A
ADJUSTER-CHAIN,OUTER
330401122
€ 12.00
42036
420361205
ref: 42036
SLEEVE,15X20X82
420361205
€ 18.50
42036A
420361218
ref: 42036A
SLEEVE
420361218
€ 34.50
49006
490061218
ref: 49006
FG
BOOT
490061218
€ 3.50
92002
920021775
ref: 92002
BOLT,DISC PLATE,6MM
920021775
€ 2.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92015
920151364
ref: 92015
NUT,8MM
920151364
€ 2.50
92015A
920151658
ref: 92015A
NUT,FLANGED,8MM
920151658
€ 3.00
92015B
920151791
ref: 92015B
NUT,POP,6MM
920151791
€ 3.00
92015C
920151946
ref: 92015C
NUT
920151946
€ 8.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92046A
920461174
ref: 92046A
BEARING-NEEDLE,TA2230
920461174
€ 37.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92049A
920491289
ref: 92049A
SEAL-OIL
920491289
€ 6.00
