FRAME

KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

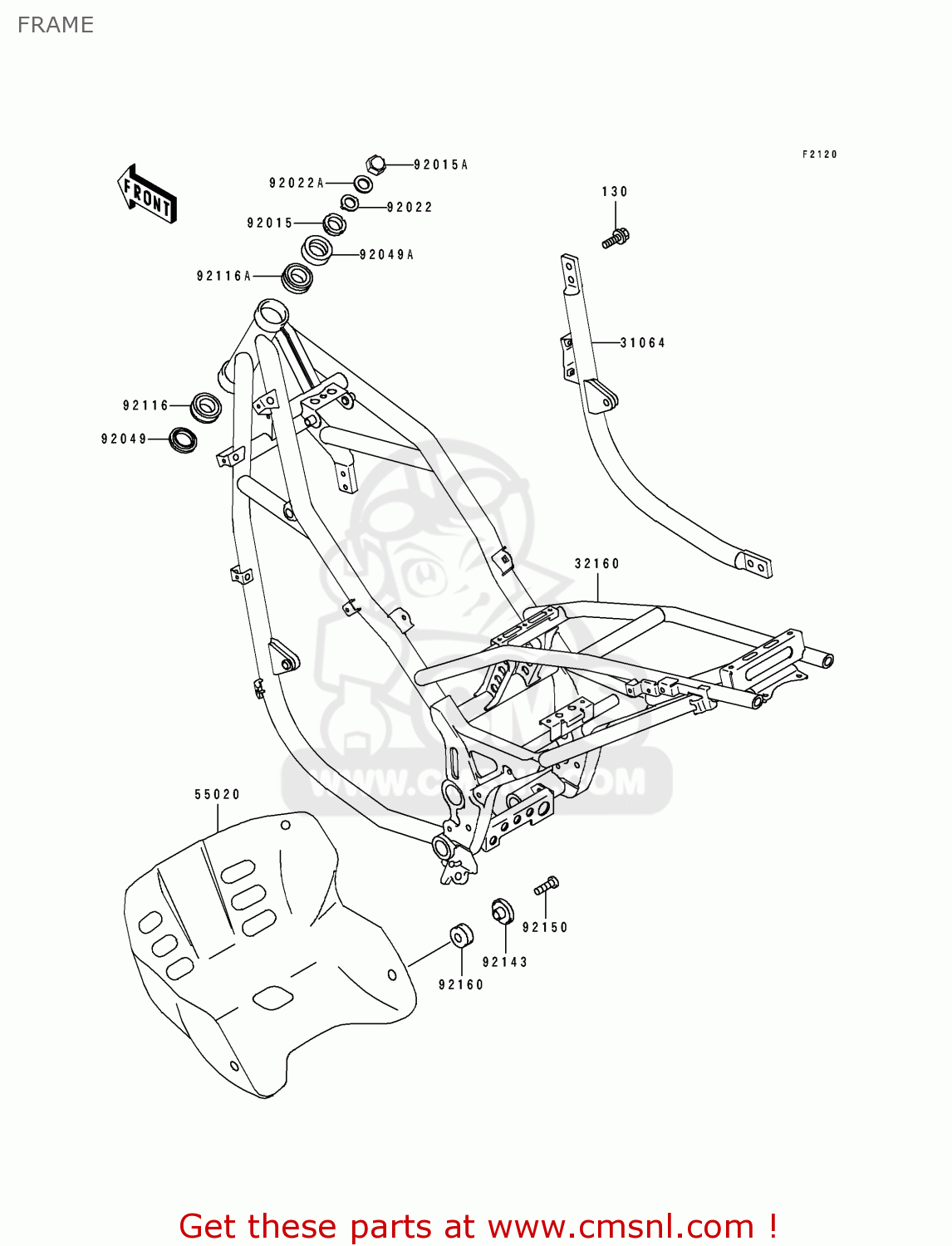

Frame diagram KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130G1025
ref: 130

BOLT-FLANGED 10X25

€ 3.00

31064

310641120GD
ref: 31064

PIPE-COMP,FRAME,RH,G.

€ 172.00

32160

321601197GD
ref: 32160

FRAME-COMP,G.GRAY

€ 1,371.00

55020

550201395
ref: 55020

GUARD,ENGINE

€ 418.50

92015

920151546
ref: 92015

NUT,25MM,T=12

€ 14.50

92015A

920151736
ref: 92015A

NUT,CAP,18MM

€ 12.00

92022

920221555
ref: 92022

WASHER,CLAW,18.5X30X2

€ 4.50

92022A

920221658
ref: 92022A

WASHER,18.3X34X4.5

€ 3.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491214
ref: 92049A

SEAL-OIL,STEERING STE

€ 11.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161052
ref: 92116A

BEARING-ROLLER,25X47X

€ 41.00

92143

921431273
ref: 92143

COLLAR,WHITE

€ 11.50

92150

921501500
ref: 92150

BOLT,SOCKET,6X18

€ 4.50

92160

921601278
ref: 92160

DAMPER

€ 3.00
